PML As Cast Ford Sterling 10.25/10.5 RG, 12 Bolt

Volume: 0.8 qt. over stock

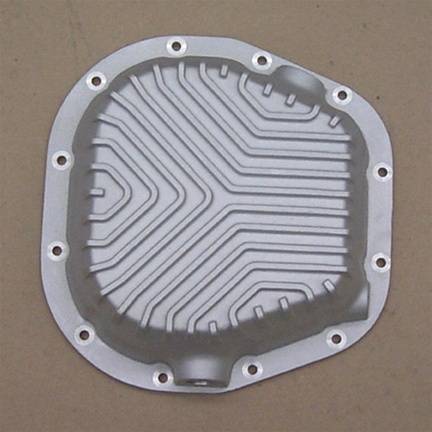

Both of these rear end covers were designed for the Ford Sterling 10 and 10 inch ring gear, 12 bolt differential. The only difference between these two covers is the fin pattern.

These rear differential covers fit the Sterling rear end found on:

• F250, 1989 and newer
• F350 single rear wheel, 1989 and newer
• Excursion

 If you have an F350 dually, see the Dana 80 differential cover.

PML makes front end covers that match part number 10816, which is the second cover pictured. The matching front covers are PML part number 10737, the Dana 50/60 front differential cover (for Excursion, F250 1999 and newer, F350 SRW 1998 and newer) and part number 9426, Dana 60/70 differential cover (for the front differential on F250 1966-1997, F350 SRW 1966-1997).

These covers have holes for drain and fill. A boss on side optionally can be machined for a temperature sensor for an additional cost. Call to order machining and let us know your sensor thread size. The level check hole for this differential is provided by Ford and is located on the driveshaft side of the differential housing.

PML Differential Cover Features

• Increased oil capacity for cooler temperatures
• Sand-cast aluminum with raised fins
• 3/16-inch thick wall construction to add strength to differential housing
• 3/8-inch thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal using RTV or factory reusable gasket
• Oil changes without removing the cover
• All hardware provided, including magnetic drain plug
