PML Black Powder Finish Dana 44, 10 Bolt, Stock

Volume: stock capacity to qts. over stock

Dimensions: height 3 11/16" from gasket surface to tip of fins, width 9.615", length 10.40"

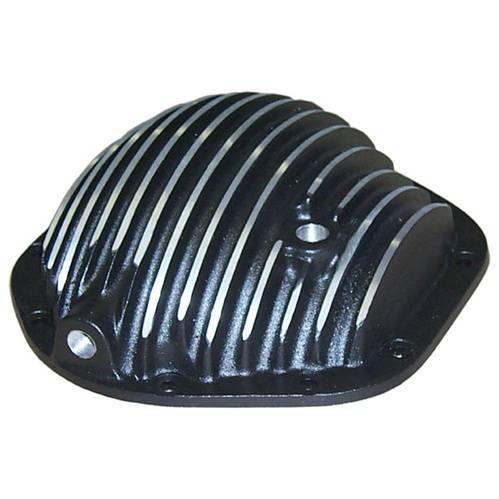

This Dana 44 differential cover features fill/level check hole, a drain hole, fins and aluminum construction for to dissipate heat. The fins have the traditional straight fin design and the shape of the cover has the same shape as the stock cover. These aftermarket covers have thick walls and gasket flanges to add strength to the differential housing and to provide a uniform clamping force on the gasket surface for a secure seal.

The Dana 44 differential is found on many vehicles beginning in the 1940s and is still used today. For example:

• Dodge Ramcharger front, 1972 to 1978
• Dodge Pick Up front, 1972 to 1978
• Ford F100 and F150 front, 1971 to 1979
• Ford F250 front, 1966 to 1979
• Ford F350 front, 1966 to 1979
• Ford Bronco front, 1971 to 1979
• Jaguar (some rear)
• Jeep CJ rear, 1941 to 1975
• Jeep Truck front, 1974 to 1986
• Jeep Wagoneer front, 1974 to 1986
• Jeep Cherokee front, 1974 to 1986
• Jeep rear, 1974 to present
• IH Scout front, 1975 to 1980
• IH Scout rear, 1967 to 1980

There are many different versions of Dana 44 differentials. The sizes, shapes, and level check hole locations vary. See also our Dana 44 Top Fill and Dana 44/226 covers for other possibilities. PML does not make a rear or front end cover for the Dana 44/213mm or Dana 44/200mm applications as yet. The 213 and 200 both have 12 bolts. Be sure to check the number of bolts, shape, level check hole location and if you have clearance for a larger cover.

This 2009 Wrangler Unlimited has sway bar inch from the stock differential cover. Unless the sway bar is moved or the Wrangler modified, this is too close to accomodate a larger aftermarket rear end cover.

Do no use this cover on GM front ends.

PML Differential Cover Features

• Sand-cast aluminum with raised fins for cooler temperatures
• Thick wall construction to add strength to differential housing
• Thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal using RTV or factory reusable gasket
• Oil changes without removing the cover
• All hardware provided, including magnetic drain plug
