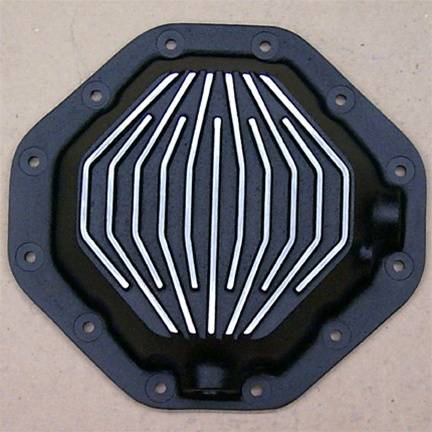

PML Black Powder Finish Dodge Corporate 9.25 RG, 12 Bolt

Volume: 0.7 qt. over stock

This cover fits the rear differential on the following vehicles:

• Ram 1500, 1994 & newer (not SRT or 1500 Mega - see our Dana and larger AAM 10 covers)
• 1998-2003 Dodge Dakota -ton, 5.9 engine
• 2000 & newer Dodge Dakota -ton, 4.7 engine (may also have the Corporate 8 cover - count your bolts to check)
• 1998-2003 Dodge Durango, -ton, 5.9 engine
• 2000-2003 Dodge Durango, -ton, 4.7 engine
• 1998-2003 Dodge Durango, -ton, 3.9 or 5.2 engine (may also have the Corporate 8 cover - count your bolts to check)
• Ram Vans may have this cover or the smaller Corporate 8 cover - count your bolts to check

The diff cover also has a location on face of cover that can be machined for a temperature sensor. The option to have the cover drilled and tapped will need to be ordered over the phone, not on-line, and there is a machining charge. Click here for an image showing a cover machined for a temp sensor.

• Increased oil capacity for cooler temperatures
• Sand-cast aluminum with raised fins
• 3/16-inch thick wall construction to add strength to differential housing
• 3/8-inch thick gasket flange will not bend when bolts are tightened
• Machined gasket surface for a secure seal using RTV or factory reusable gasket
• Oil changes without removing the cover
• All hardware provided, including magnetic drain plug
