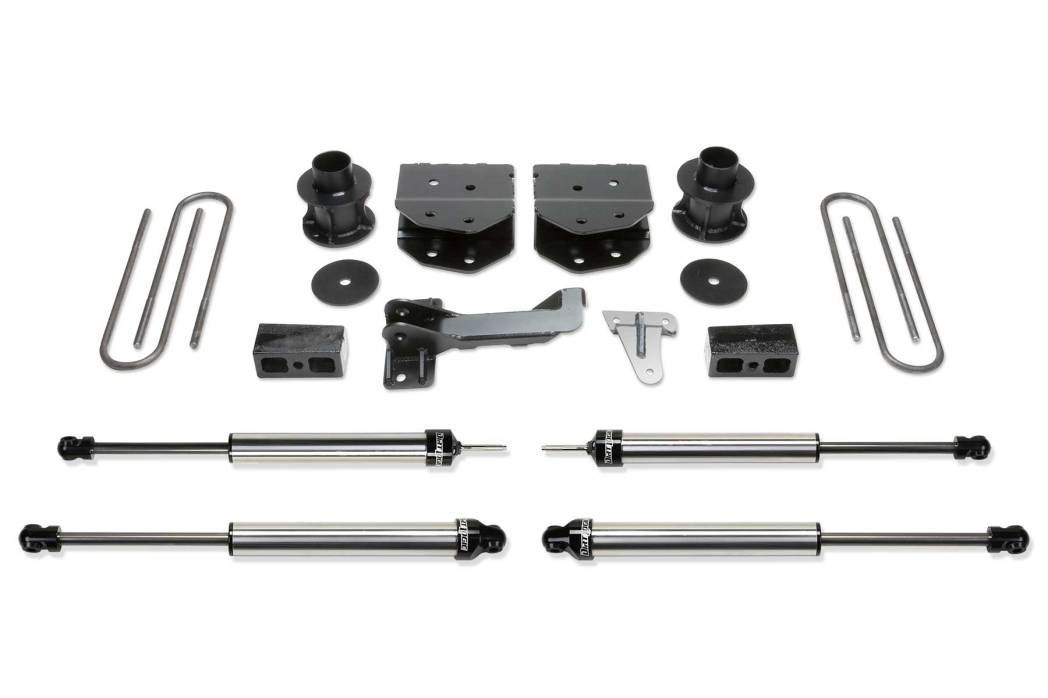

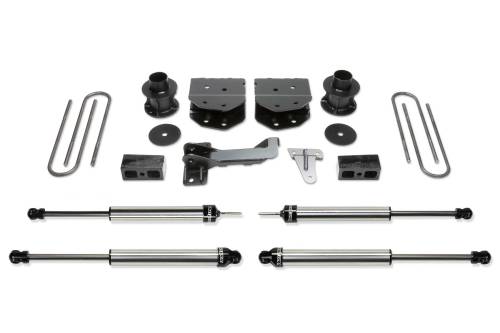

FTSK2181DL | Fabtech 4 Inch Budget System With Dirt Logic Shocks (2005-2007 F250, F350 Super Duty 4WD)

2005-2007 Ford F250 Super Duty 4WD | 2005-2007 Ford F350 Super Duty 4WD

K2181DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,033.09
Qty:

Description

2005-07 FORD F250F350 4WD

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4” Budget System.

The 4” Budget System utilizes the factory front coil springs with a steel upper spacer providing 4” of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.

System allows installation of 35” tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

FEATURES

  • Front Coil Spring Spacers
  • Trac Bar Relocation Bracket
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22153 COMPONENT BOX
2 FTS810962 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

Application List

2005-2007 Ford F250 Super Duty 4WD
2005-2007 Ford F350 Super Duty 4WD

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 148.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
