FTSK7024DL | Fabtech 6 Inch Basic System With Rear DLSS Shocks(2010-2013 FJ Cruiser 4WD)

2010-2013 Toyota FJ Cruiser 4WD

K7024DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $5,172.18
Qty:

Description

6″ BASIC SYSTEM W/ DIRT LOGIC SHOCKS – K7024DL

2010-13 TOYOTA FJ 2WD/4WD

Fabtech’s FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Basic rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech’s precise suspension geometry.

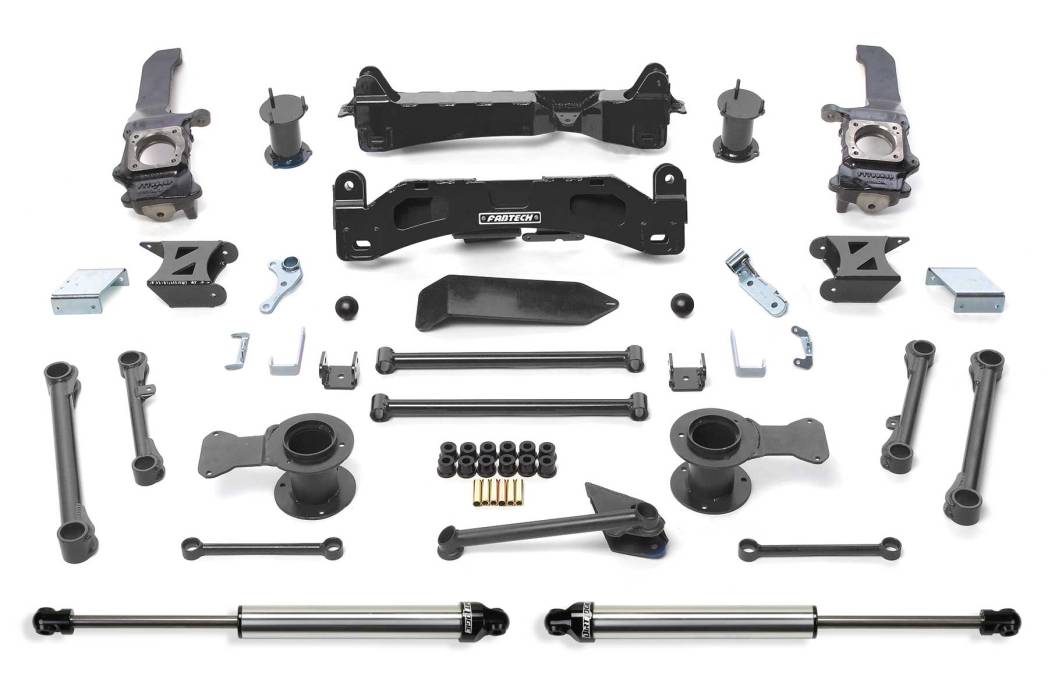

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4" Thick Steel Skid Plate
  • Front Shock Spacer
  • Impact Struts
  • Sway Bar links
  • Rear Upper & Lower Link Arms
  • Rear Coil Spring Spacers

[

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26032 COMPONENT BOX 1
1 FTS26033 COMPONENT BOX 2
1 FTS26010BK COILOVER SPACER KIT
1 FTS26018BK REAR BOX KIT
2 FTS810542 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

68. Kit does not fit models with factory electronic controlled shocks.

Application List

2010-2013 Toyota FJ Cruiser 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 309.5 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
