FTSK2150DL | Fabtech 10 Inch 4 Link System With Coils and DLSS Shocks (2011-2016 F350 Super Duty 4WD)
2011-2016 Ford F350 Super Duty 4WD | 2011-2013 Ford F450 Super Duty 4WD 8 Lug
Description
2011-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]

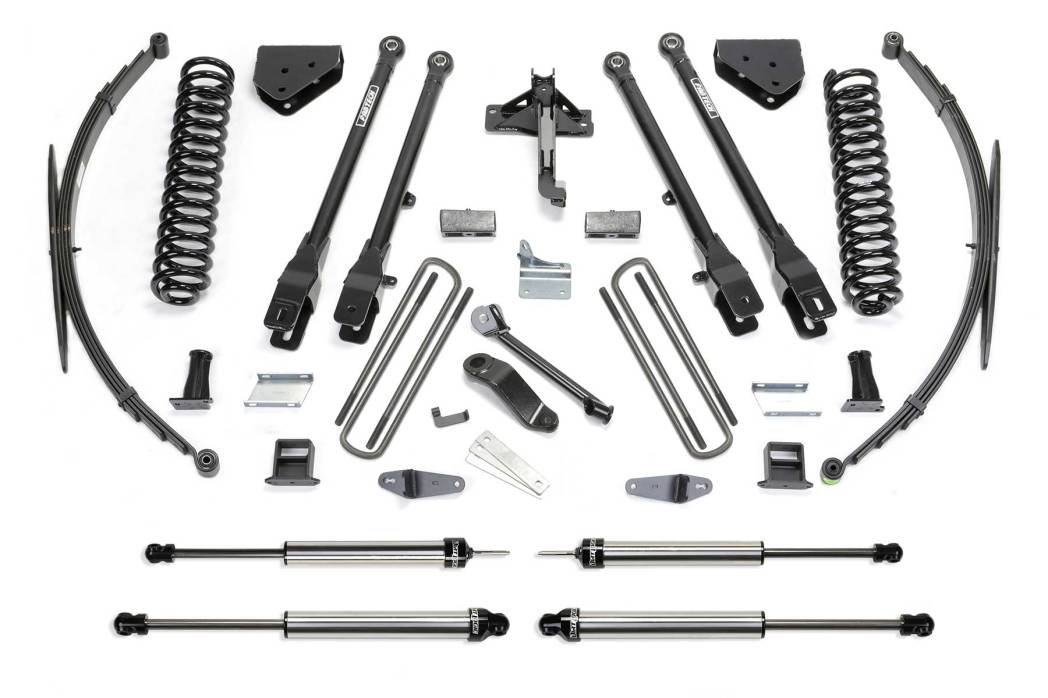

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilovers. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.
FEATURES
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear Block & U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22081BK | COMPONENT BOX 1 |
1 | FTS22145 | COMPONENT BOX 2 |
1 | FTS22093BK | COMPONENT BOX 3 |
1 | FTS22108 | REAR BLOCK & LEAF SPRING KIT |
2 | FTS810392 | FRONT DIRT LOGIC 2.25 NON RESI |
2 | FTS810652 | REAR DIRT LOGIC 2.25 NON RESI |
FOOTNOTES
3. Non dually models.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
Application List
2011-2013 Ford F450 Super Duty 4WD 8 Lug
Tires & Wheels

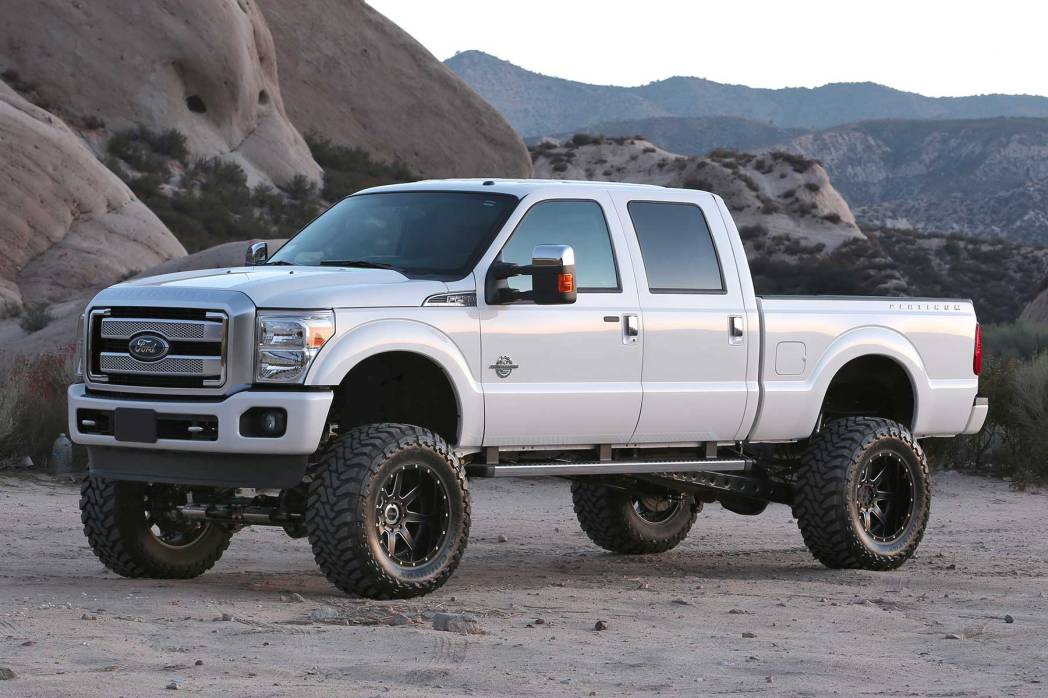

Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
Details
- K2150DL
- K2150DL
- 674866097148
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 606.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- $300.00
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
