69-3511 | ReadyLift 3.5 Inch SST Suspension Lift Kit (2011-2019 Silverado, Sierra 2500 HD)

2011-2019 Chevrolet Silverado 2500 HD 2WD/4WD | 2011-2019 GMC Sierra 2500 HD 2WD/4WD

69-3511
Pricing: $1,949.94
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3.5"F / 1"R SST LIFT KIT - GM SILVERADO / SIERRA 2500HD W/ SST3000 SHOCKS 2011-2019

ReadyLIFT Suspension Inc. is excited to offer new 2011-2019 Chevy and GMC 2500HD truck owners a lift solution that won't break the bank nor permanently modify your truck.

This is a true bolt-on Lift kit! The 69-3511 SST Lift Kit by ReadyLIFT will lift the front of your new HD truck a maximum of 3.5 inches! This awesome SST Lift Kit for new GM HD trucks includes a pair of tough heavy-duty tubular steel upper Control Arms engineered to match the strength of your truck. 2011-2019 2500HD-specific lift-oriented ReadyLIFT forged torsion keys provide an adjustable lift while maintaining the factory ride. These super strong forged torsion keys are stronger than stock with the same design and features an indexing that is unique to this kit! The 69-3511 Lift Kit also includes CNC-machined differential drop spacers which lowers the differential and puts the front CV axles into safe factory angle on 4WD trucks. 2WD trucks will not use the diff spacers. To lift the rear of your new Chevy Silverado 2500HD truck, the ReadyLIFT SST Lift Kit includes OEM style 1.0" cast iron rear lift blocks complete with new u-bolts and hardware. A Tow Package version of this kit is also available with a taller 2.0" rear lift block. This kit includes SST3000 Shocks. Also included with this kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy duty steering assemblies install easily and incredibly stronger than the OEM units. You won't find this kind of attention to detail with any other lift kit for the new GM HD trucks! This great combination gives the new GM HD trucks a great raised stance using super strong components and allows for up to a 34" tall tire.

NOTE:
Single Rear Wheel Only.
Not for use on trucks equipped with factory TOP overload spring commonly referred to as a camper package.

Application List

2011-2019 Chevrolet Silverado 2500 HD
2011-2019 GMC Sierra 2500 HD

* NOT for use on Trucks with Top Mount Overloads
* Single Rear Wheel ONLY

Tires & Wheels

34" Maximum tire diameter
34x11.50 for no rub on a 9" wide wheel with +12 offset
18" - 295/70R18
20" - 275/65R20
22" - 285/55R22

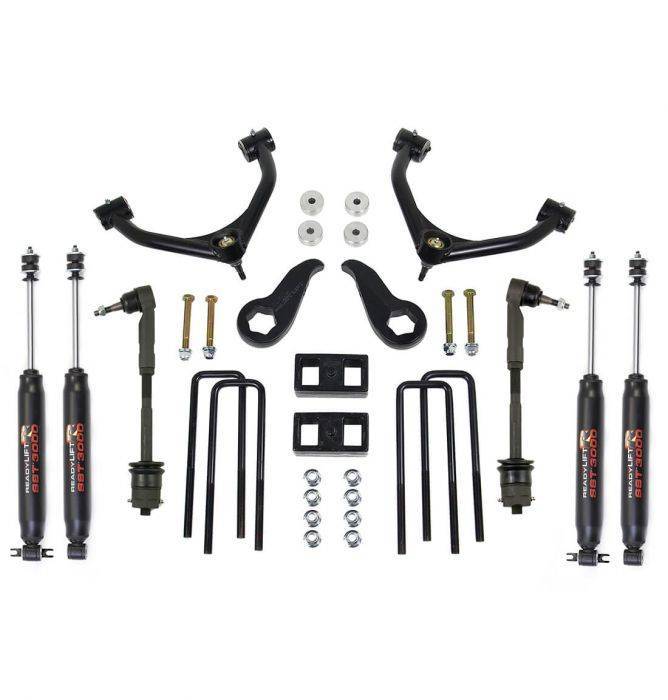

Components

Tubular Upper Control Arms.
Forged Torsion Keys indexed for 3.5" of lift..
Heavy Duty replacement tie rod assemblies.
Differential drop spacers.
1.0" OEM style cast iron rear lift blocks with longer u-bolts.
Includes SST3000 Shocks.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 71.0 lbs.
  • W7.2500” x H23.0000” x L23.0000”
  • Free Ground Shipping | Exclusions Apply*
