54570 | 3 Inch Ford Bolt-On Arm Lift Kit w/ Struts & V2 Shocks (14-20 F-150 4WD)

Ford | 2014-2020 F-150 Pickup 4wd

54570
Pricing: $1,648.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups.

This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3-inch Bolt-On Kit features N3 Lifted Struts and N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of fabricated rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES
Easy Bolt-On installation
No Cutting or Drilling required!
Includes New forged aluminum upper control Arms
Control arms keep ball joints at optimum angles for less wear and tear
Control arms include Clevite rubber bushings for enhanced durability
Increased ground clearance
Levels the front and rear of the truck
Can be returned to stock
Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
Lifetime Replacement Warranty*

NOTES - IMPORTANT
Does not fit regular/standard cab models
This kit does not work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
2014 model trucks measuring over 22in should consider our 4in Lift Kit 57430
2015+ model trucks measuring over 22in should consider our 4in Lift Kit 55530

SPECS
SKU 54570
Est. Install Time 5-6 hours

Vehicle Applications

2014-2020 Ford F-150 Pickup 4wd

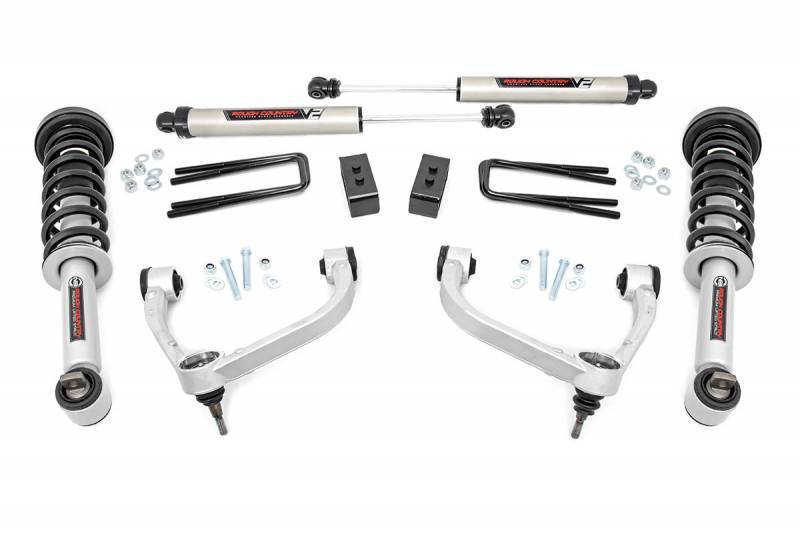

Components

FRONT
(2) Lifted N3 Strtus | Loaded
(2) Upper control arms
(2) Strut spacers

REAR
(2) Lift Blocks
(4) U-bolts
Hardware

SHOCKS
(2) V2 Monotube Series [Rear]

Tires & Wheels

295/70 R18 18x9 - +12
295/60 R20 20x9 - +12
Using larger tires on factory wheels requires a 0.25-inch wheel spacer
Minor trimming may be required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 90.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
