K854F | Superlift 4 inch Suspension Lift Kit with Fox 2.0 Shocks (2008-2010 F250, F350 Super Duty 4WD | Diesel)

2008-2010 Ford F250 , F350 Super Duty 4WD | Diesel ONLY

K854F
Pricing: $2,918.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete coil spring lift kit for the 2008-2010 Ford F-250/F-350 4WD - diesel engine
Provides 4” lift height
Includes track bar bracket, rear blocks, front and rear Fox 2.0 Shocks

What does it include?

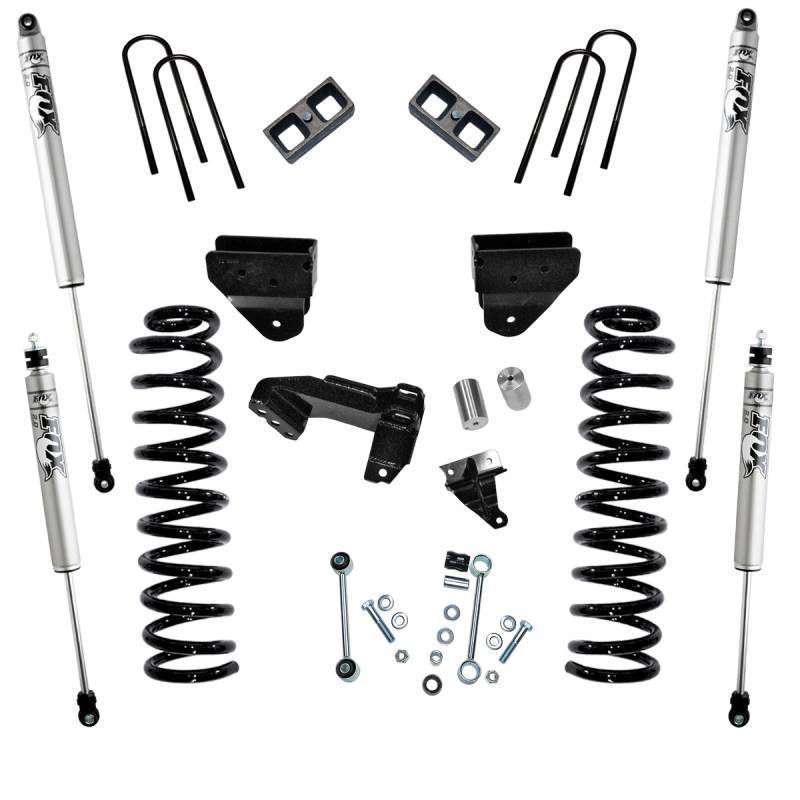

Front coil springs, track bar bracket, radius arm brackets, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2008-2010 4wd Ford F-250 DIESEL ENGINE
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

This 4” Lift for the 2008-2010 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality. Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket. Rear lift is achieved by lift blocks.

Complete your 4-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.

Features | Benefits:
Engine Specific Coil Springs ensure ride quality while rear blocks maintain load capacity
Radius Arm Drop Brackets
Front Compression Travel-Stop Brackets prevent suspension over-compression
Anti-sway Bar Extensions prevent bar preload
Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
Stabilizer bracket restores factory steering stabilizer angle for optimum operation
Front and Rear Fox® Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty
Aligns to OEM specifications
Maintains ride quality and handling characteristics

NOTES:
Installation time: 7-8 hours
Difficulty level: 3 of 5

This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 pickups with the factory 1 7/8 Inch blocks without top mount overloads. If your vehicle is equipped with the factory top mount overloads or 3.71 inch blocks, a longer rear u-bolt will be required and is available from superlift.com. Please refer to the option’s list or call our technical support line for additional details – 800-551-4955.

Application List

2008-2010 Ford F-250 Super Duty 4wd
2008-2010 Ford F-350 Super Duty 4wd

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 17 x 9 4.5 -
35 x 12.5 18 x 9 4.5 -
35 x 12.5 20 x 9 4.5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W20.0000” x H24.0000” x L48.0000”
