K962F | Superlift 6 inch Suspension Lift Kit with Fox 2.0 Shocks (2007-2021 Tundra 4WD)

2007-2021 Toyota Tundra 4WD

K962F
Pricing: $3,127.49
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete 6” lift kit for the 2007-2021 Toyota Tundra
This kit lifts the front 6 inches and 4 inches in the rear
Covered by our Limited Lifetime Warranty

What does it include?

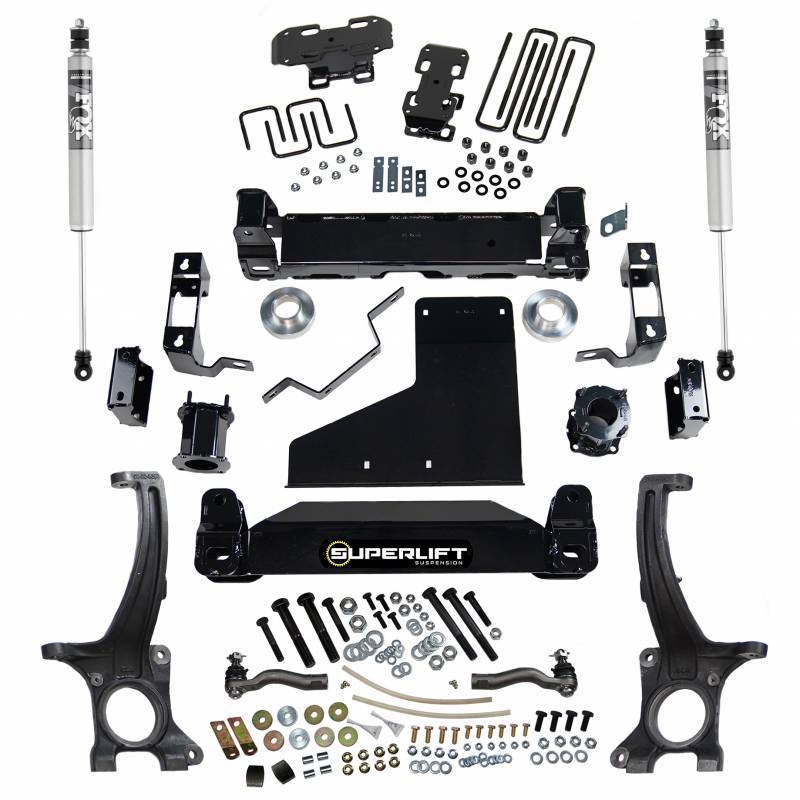

Steering knuckles, cross-members, differential spacers, strut spacers/preload spacer, rear Fox® shocks, skid plate, and rear blocks
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
The best customer service and technical help in the industry

Superlift’s 6-inch lift kits for the 2007- 2020 Toyota Tundra are a great way to add height to your overall Tundra’s appearance and now feature Superlift Shocks OR Fox® Performance Series 2.0 IFP Shocks. Superlift’s Suspension Lift Kits have a strong, modern die-formed design constructed of solid steel giving your truck a strong suspension. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. The 6-inch lift kit for the Toyota Tundra is a complete replacement knuckle kit.

This kit includes front knuckles, front strut spacers, lower control arm cross-members, a rear block kit, and rear Fox® shocks. All required parts are included to make sure your Tundra handles and performs in all conditions.

Features:
Adds clearance up to 35” diameter tires
Ductile Iron Steering Knuckles
Full “Belly” Skid Plate.
HD Outer Tie Rod Ends
Rear lift is achieved with Block & U-bolt Kit
Levels the truck front to rear
Fox® 2.0 Shocks
Backed by our Limited Lifetime Warranty

Benefits:
Retains OEM caster and camber alignment specifications
No excessive ball joint or steering components
CV axle angles are in the stock parameters
Maintains stock like ride quality and handling

Notes:
Installation time: 8-9 Hours
Difficulty level: 4 to 5

Does not fit Tundra Models – TRD Pro, Rock Warrior, Or XSP-X Models
Will NOT work on 2016 TRD Pro (Bilstein Piggyback Strut) Models
Cutting and Drilling is required
Cannot run the factory 18” wheel
Aftermarket 18” wheels require at 5” or less back spacing.
See Recommend tire and wheel combinations
Do Not combine with any other suspension lift

Application List

2007-2021 Toyota Tundra 4wd

Tires & Wheels

Tire Wheel  Backspacing Offset
35 x 12.5   18 x 9 5 -
35 x 12.5   20 x 9 5.5 -
35 x 12.5   22 x 9 5.5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
