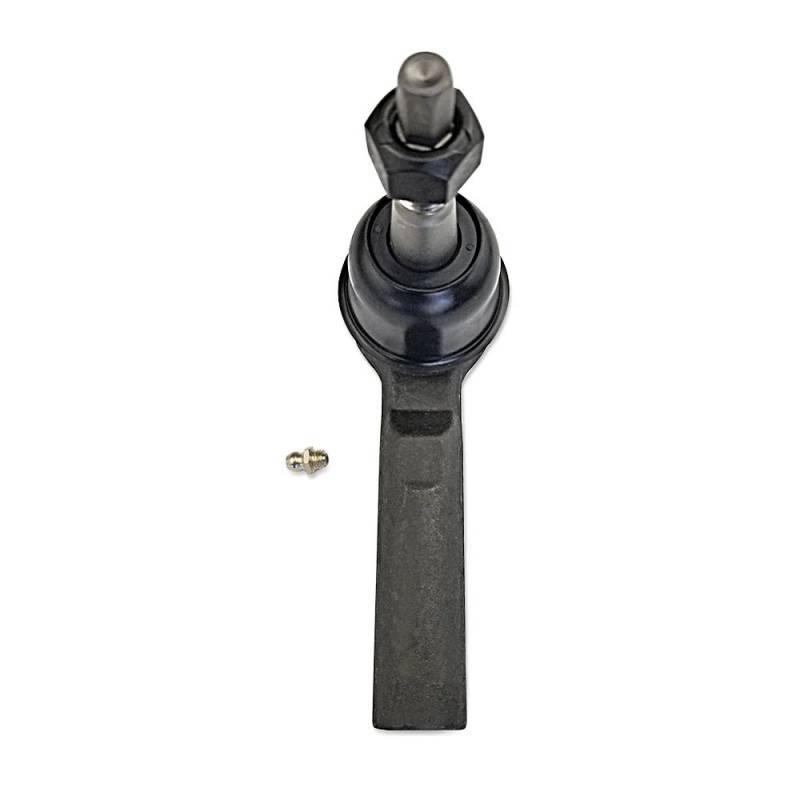

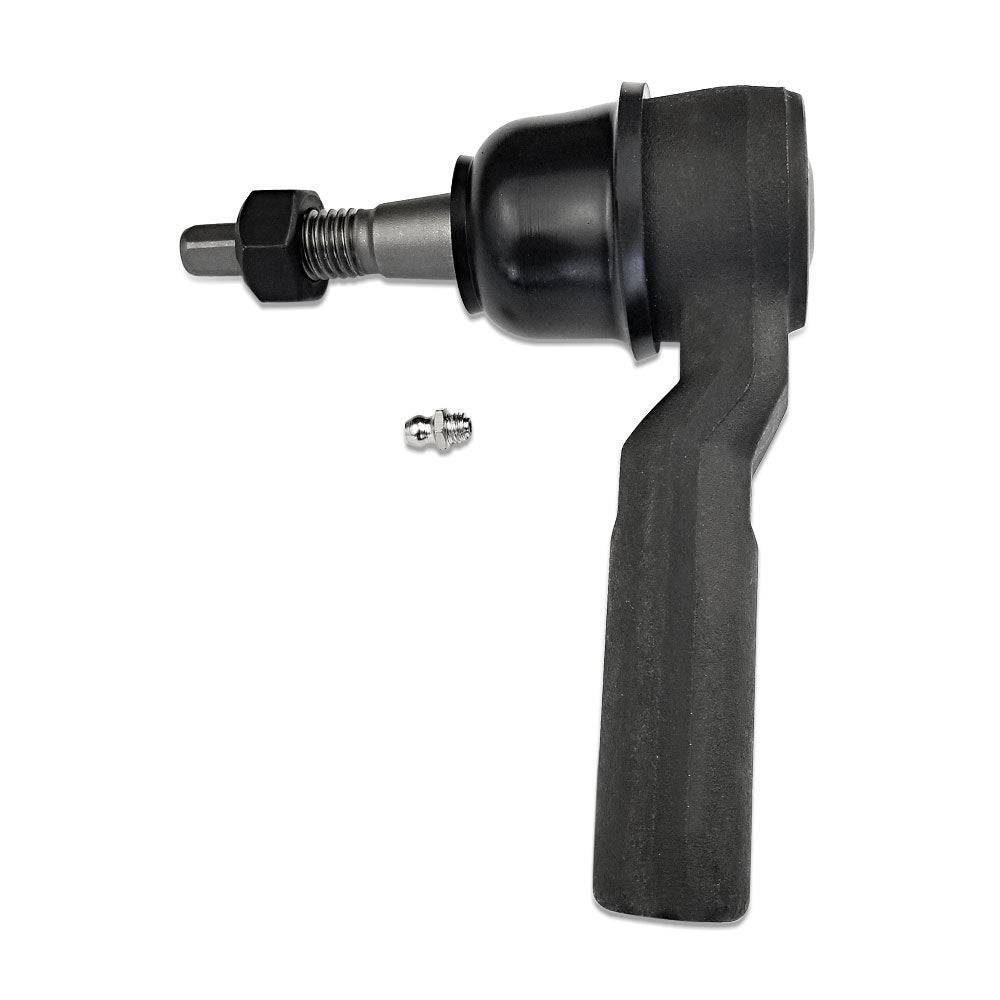

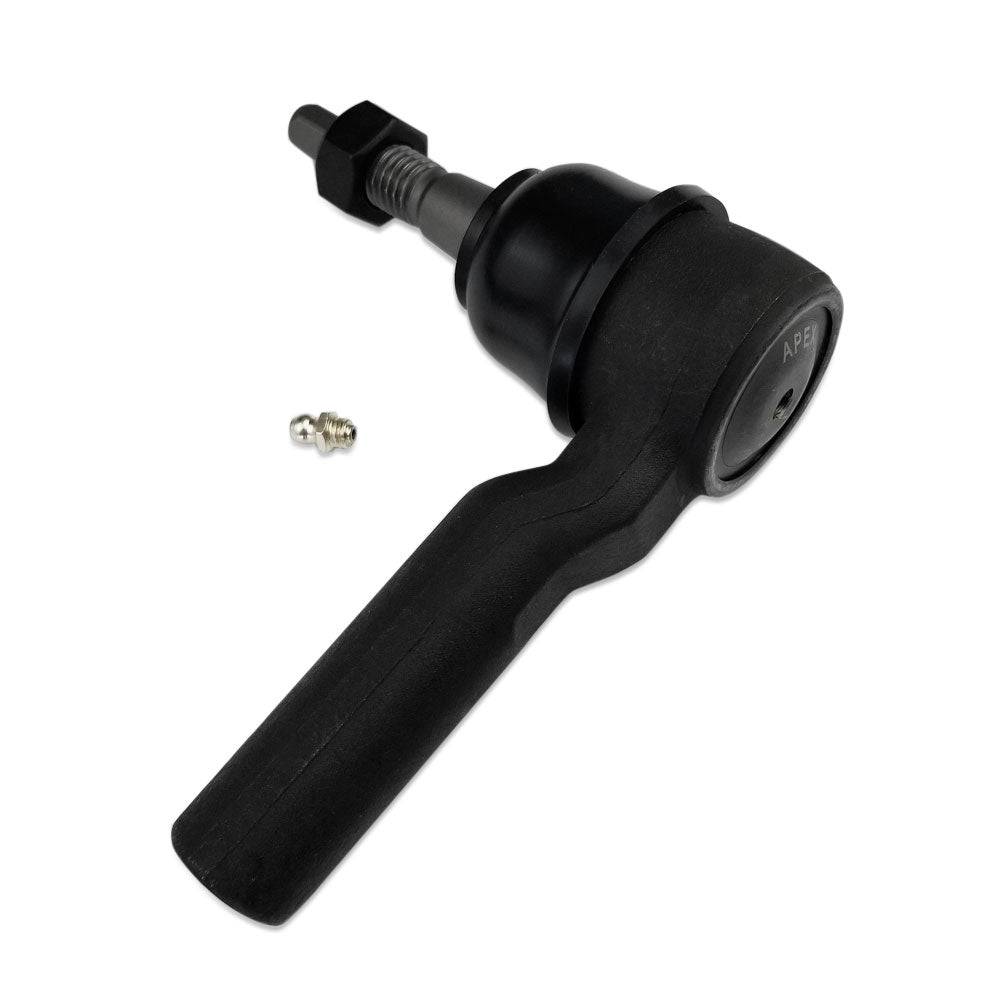

TR152 | Apex Chassis Tie Rod End Front Outer For Chevrolet / GMC (2011-2024)

Tie Rod End Front Outer For Chevrolet / GMC (2011-2024)

TR152
Pricing: $55.17
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Compression Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Tension Nut: Very strong hold in most applications.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.



WHERE IT FITS:

Vehicle Position: Front Outer
Quantity per Vehicle: 2
Moog Interchange: ES800901

Application List

Chevrolet Silverado 2500 HD (2011-2024) 2WD or 4WD
Chevrolet Silverado 3500 HD (2011-2024) 2WD or 4WD
GMC Sierra 2500 HD (2011-2024) 2WD or 4WD
GMC Sierra 3500 HD (2011-2024) 2WD or 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W5.0000” x H5.0000” x L5.0000”
