FTSK1078 | Fabtech 6 Inch Basic System (2015-2016 Suburban 1500, Tahoe, Yukon)

2015-2016 Chevrolet Suburban 1500, Tahoe 2WD/4WD | 2015-2016 GMC Yukon 2WD/4WD

K1078
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $4,386.01
Qty:

Description

2015-16 CHEVY 1500 SUV | GMC 1500 SUV 2WD/4WD

This system features our proven one piece high arched lower crossmember design with an integrated differential skid plate for solid support of the front suspension. Special attention was given to the design of replacement extended length steering knuckles to keep the track width of the vehicle near stock while retaining turning radius for easy maneuverability in tight areas.

The rear system features extended length tubular upper and lower link arms with an oversized Trac bar relocation bracket to properly place the axle under the vehicle with zero driveline vibration. Rear coil springs maintain proper ride height.

The Basic System also includes front strut assembly spacers and rear performance coil springs. This system provides a stock like ride and is compatible with all MagneRide and Non MagneRide models.

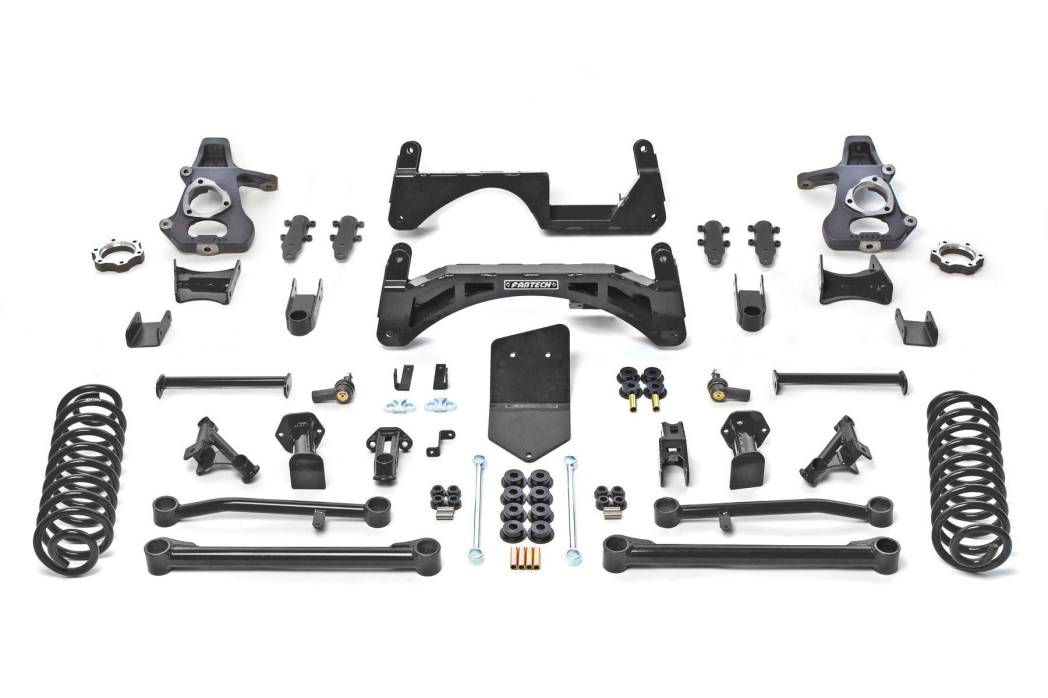

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • Impact Struts
  • Track Bar Relocation Bracket
  • Rear Extended Length Tubular Upper & Lower Link Arms
  • Rear Coil Springs

PART NUMBERS

QTY PART # DESCRIPTION
1  FTS21137 COMPONENT BOX 1
1  FTS21159 COMPONENT BOX 2
1  FTS21138 COILOVER SPACER KIT
1  FTS21160 REAR COIL KIT

FOOTNOTES

8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
16. Utilizes stock rear shocks.
101. Some models may not sit level after install.
132. Will not fit 2WD Suburban models.
134. Will not fit 2WD Yukon XL models.
136. Some vehicles may experience front driveline vibration in 4WD. Order FTS21192 CV Driveshaft Kit if occurs.

Application List

2015-2016 Chevrolet Suburban 1500 2WD/4WD
2015-2016 Chevrolet Tahoe 2WD/4WD
2015-2016 GMC Yukon 2WD/4WD

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 329.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
