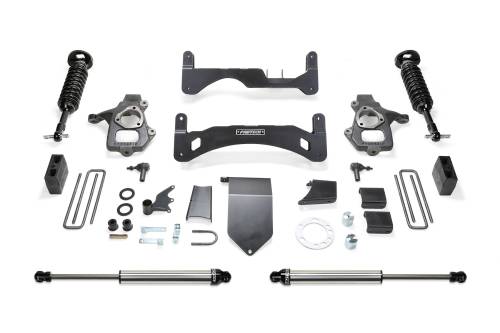

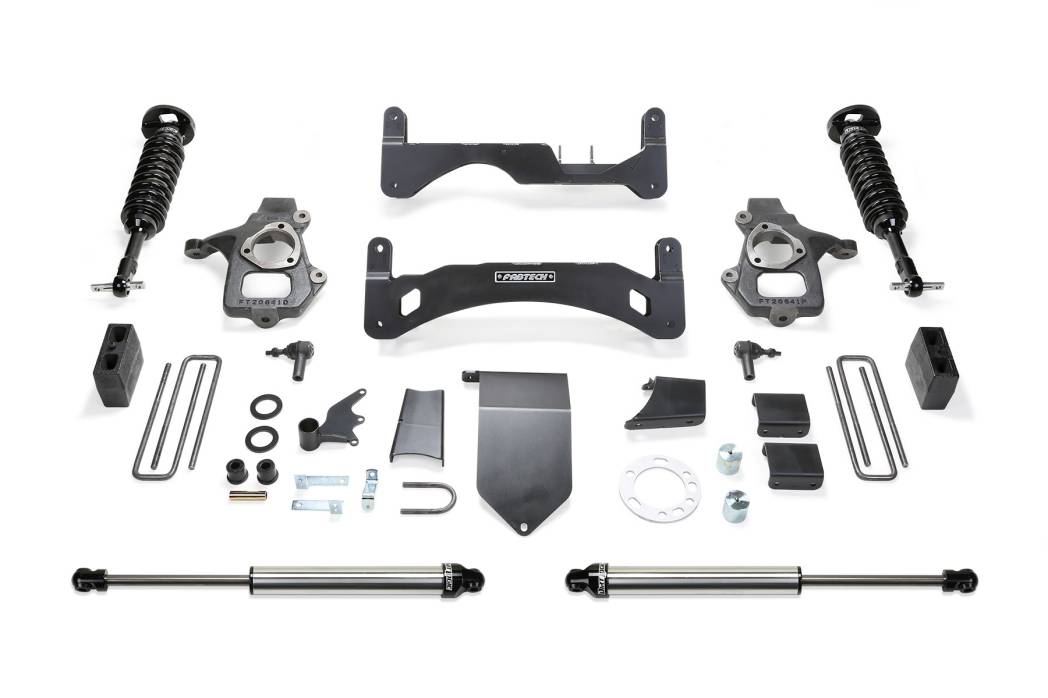

FTSK1083DL | Fabtech 6 Inch Performance System G2 With Dirt Logic 2.5 (2014-2018 Silverado, Sierra 1500 with OE Forged Steel Control Arms)

2014-2018 Chevrolet Silverado 1500 2WD/4WD | 2014-2018 GMC Sierra 1500 2WD/4WD | With OE Forged Steel Control Arms

K1083DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $5,452.98
Qty:

Description

2014-18 CHEVY SILVERADO 1500 | GMC SIERRA 1500 2WD/4WD

This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper.  There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced.

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • Rear Block & U-bolt Kit

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21170 COMPONENT BOX 1 GEN II
1 FTS21173 COMPONENT BOX 2 GEN II – STEEL
1 FTS21207 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS810562 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.

Application List

2014-2018 Chevrolet Silverado 1500 2WD/4WD
2014-2018 GMC Sierra 1500 2WD/4WD
With OE Forged Steel Control Arms

Tires & Wheels

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 302.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
