247815 | Baja Designs Squadron-R SAE Wide Cornering Amber LED Fog Lights | Pair
Squadron-R SAE Wide Cornering Amber LED Fog Lights | Universal - Check Specification Before Ordering
Description
Brand new for Baja Designs is an SAE -certified light. This light is based on the Squadron series. While there are many visual characteristics that stayed the same, the pattern and circuitry are optimized in order to give our SAE light a street-legal punch! We’ve put this light through rigorous tests so you can be assured that it’s a serious upgrade to LED, HID, and Halogen factory fog lights. USPTO Reg No. 5,766,659
BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in-comfort lighting. (Lighting Zones 1 & 2).
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications

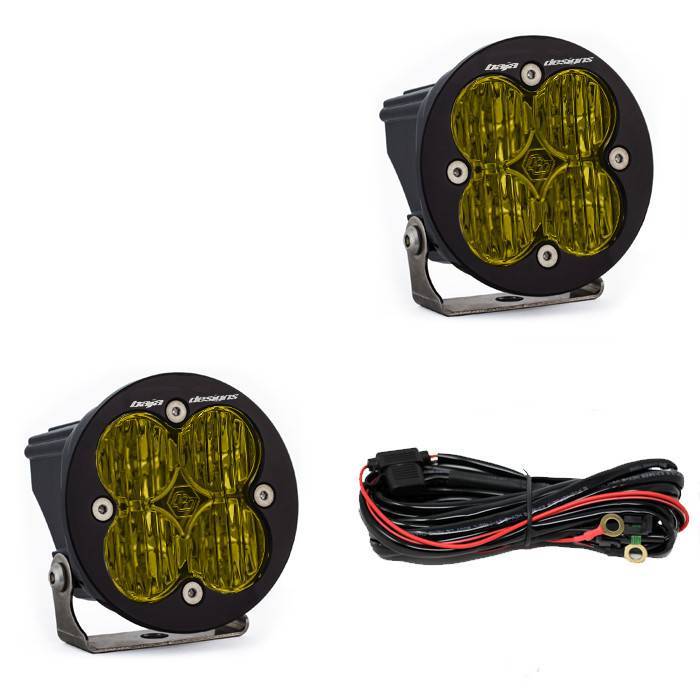

Product Type | Squadron-R SAE LED Light Pod Pair w/ Wiring Harness |
Description | Round; Wide Cornering; Clear; Pair |
Beam Pattern | Wide Cornering |
Lens Color | Amber |
Lighting Modes | Beam |
Light Quantity | 2 |
Lighting Type | Forward Projecting |
Lighting Technology | Cree LED |
Lighting Quantity | 4 |
Brightness (Lumens) | 2,480 |
Wattage (W) | 22 |
Amperage Rating (A) | 1.6 |
Average Rated Life (hr.) | 49,930 |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Material | Hardcoated Polycarbonate |
Bezel Material | Billet Machined Aluminum |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Wiring Harness Included | Yes |
Overvoltage Protection | Built-In |
Dimensions
Length (in.) | 3.07 |
Height (in.) | 3.07 |
Depth (in.) | 2.77 |
Weight (lbs.) | 0.75 |
Standards & Compliance
Street Legal | Yes |
DOT Approved | Yes |
Standards/Compliance (SAE) | SAE Standard J583 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
