448057 | Baja Designs Squadron Unlimited/S1 Pocket Kit Fog Lights For Ford F-150 Raptor | 2021-2022
Squadron Unlimited/S1 Pocket Kit Fog Lights | 2021-2022 | Ford F-150 Raptor
448057
Pricing:
$2,205.86
Description

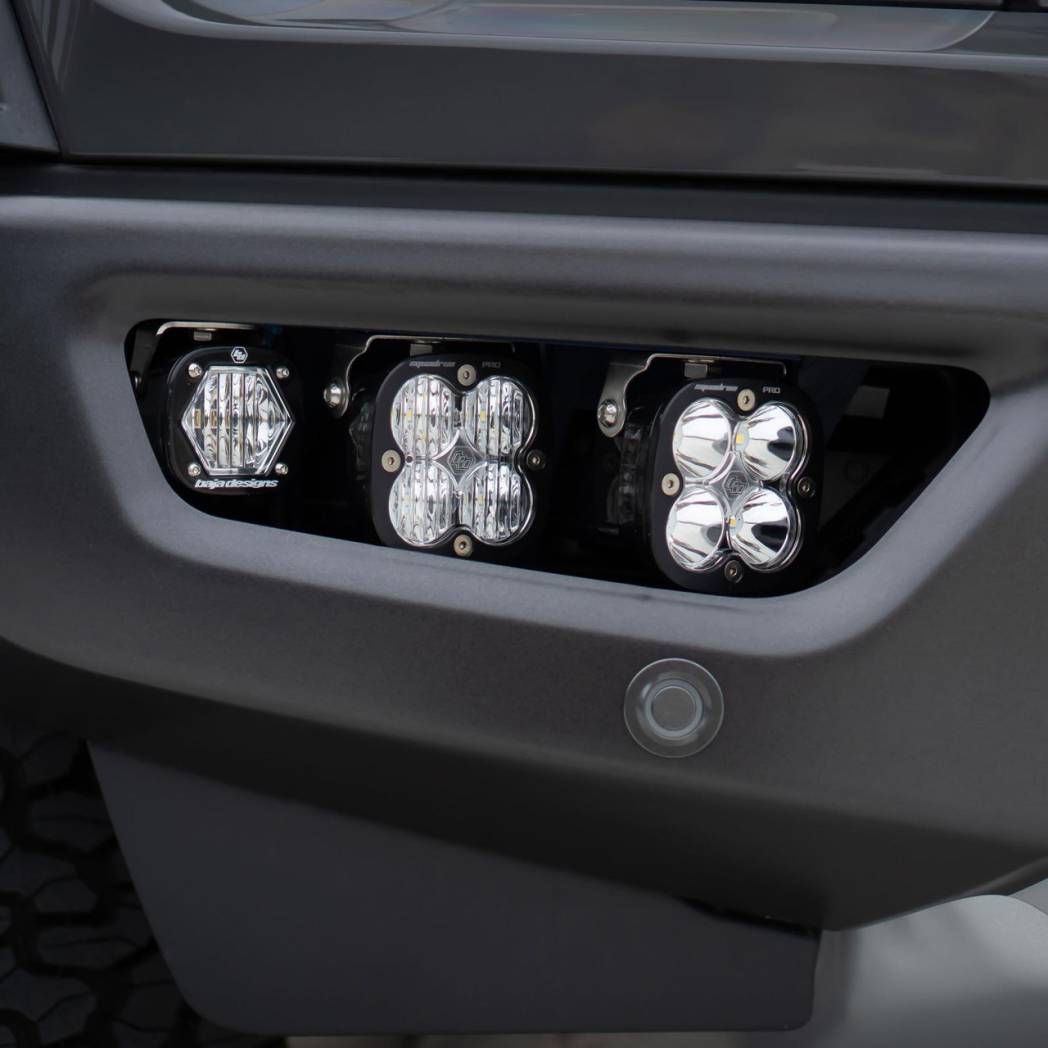

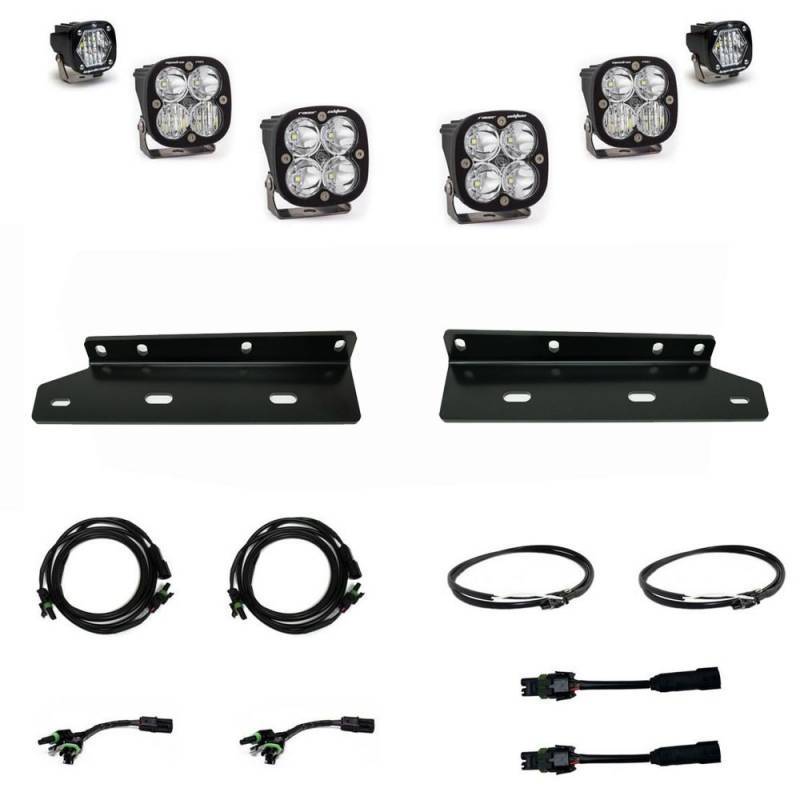

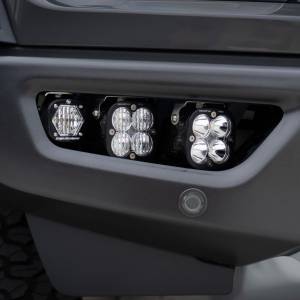

Separate your truck from the pack with the Baja Designs Ford Raptor “Unlimited” Fog Light Kit. This kit utilizes two Squadron Pros (4,600 lumens each), two Squadron racers (4,300 lumens each), and two S1s (2,375 lumens each). This mounting kit includes two Ford-specific mounting brackets and a wiring harness, allowing you to use your factory Connector.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications - 380005
| Product Type | S1 LED Light Pod |
| Description | Wide Cornering; Clear |
| Beam Pattern | Wide Cornering |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 1 |
| Brightness (Lumens) | 2,375 |
| Wattage (W) | 20 |
| Amperage Rating (A) | 1.45 | Voltage | 9-28 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 2.10 |
| Height (in.) | 2.10 |
| Depth (in.) | 2.10 |
| Weight (lbs.) | 0.40 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 720001
| Product Type | Squadron Racer Edition LED Light Pod |
| Description | Racer Spot; Clear |
| Beam Pattern | Racer Spot |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | High Intensity Cree LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 4,300 |
| Wattage (W) | 40 |
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 550003
| Product Type | Squadron Sport LED Light Pod |
| Description | Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 3,150 |
| Wattage (W) | 26 |
| Amperage Rating (A) | 2.0 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
DISCLAIMER AND WARNING
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Application List
2021-2022 Ford F-150 Raptor
