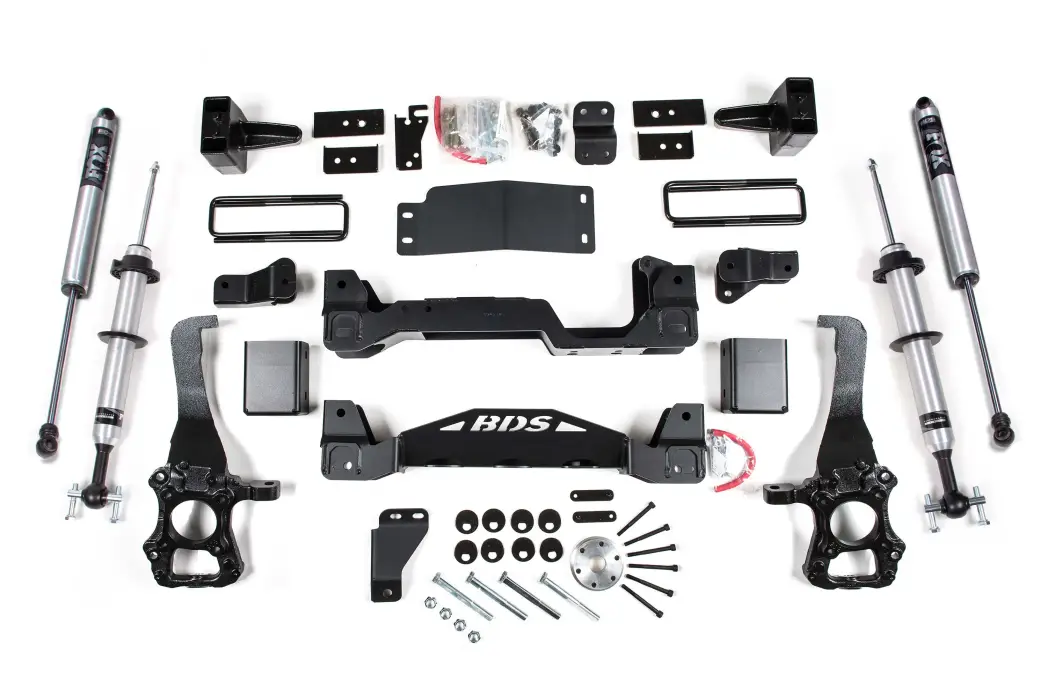

BDS1532FSR | BDS Suspension 6 Inch Lift Kit Fox 2.0 IFP Strut For Ford F-150 4WD | 2015-2020 | Rear 5 Inch Block Kit

6 Inch Lift Kit Fox 2.0 IFP Strut For Ford F-150 4WD | 2015-2020 | Rear 5 Inch Block Kit

BDS1532FSR
Pricing: $4,274.67
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

Features & Benefits

  • FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance

Recommended Tires & Wheels

  • 35 x 12.5 with 20 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

FOX 2.0 Struts

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0"" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8"" hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

5 Inch Block Kit

  • Level to tail high appearance

4 Inch Block Kit

  • Tail low to level stance

Important Notes

  1. 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  2. 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  3. E-brake bracket required for factory powersteps (123018)
  4. Block kits replace factory 1-1/4" block.
  5. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  6. Will not fit HD models (7 lug).

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut-off Tool, Reciprocating Saw, Strut Compressor

Specification

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 5"

Product Series

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2015FordF-150ALL4WDALLALLALL
2016FordF-150ALL4WDALLALLALL
2017FordF-150King Ranch4WDALLALLALL
2017FordF-150Lariat4WDALLALLALL
2017FordF-150Limited4WDALLALLALL
2017FordF-150Platinum4WDALLALLALL
2017FordF-150SSV4WDALLALLALL
2017FordF-150XL4WDALLALLALL
2017FordF-150XLT4WDALLALLALL
2018FordF-150King Ranch4WDALLALLALL
2018FordF-150Lariat4WDALLALLALL
2018FordF-150Limited4WDALLALLALL
2018FordF-150Platinum4WDALLALLALL
2018FordF-150Police Responder4WDALLALLALL
2018FordF-150SSV4WDALLALLALL
2018FordF-150XL4WDALLALLALL
2018FordF-150XLT4WDALLALLALL
2019FordF-150King Ranch4WDALLALLALL
2019FordF-150Lariat4WDALLALLALL
2019FordF-150Limited4WDALLALLALL
2019FordF-150Platinum4WDALLALLALL
2019FordF-150Police Responder4WDALLALLALL
2019FordF-150SSV4WDALLALLALL
2019FordF-150XL4WDALLALLALL
2019FordF-150XLT4WDALLALLALL
2020FordF-150King Ranch4WDALLALLALL
2020FordF-150Lariat4WDALLALLALL
2020FordF-150Limited4WDALLALLALL
2020FordF-150Platinum4WDALLALLALL
2020FordF-150Police Responder4WDALLALLALL
2020FordF-150SSV4WDALLALLALL
2020FordF-150XL4WDALLALLALL
2020FordF-150XLT4WDALLALLALL

Tires & Wheels Recommended

35 x 12.5 with 20 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace

Components

1 BDS013539 2015-2020 Ford F150 Rear Box Kit
1 BDS023634 2015-2020 Ford F150 Knuckle Box Kit - DS
1 BDS023635 2015-2020 Ford F150 Knuckle Box Kit - PS
1 BDS023650 2015-2020 Ford F150 Front Box Kit (1of2)
1 BDS023651 2015-2020 Ford F150 Front Box Kit (2of2)
2 FOX98662001 Kit: BDS, 20114-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, IFP, 6.1", 4 & 6" Lift
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Details

Categories

Product Series

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
