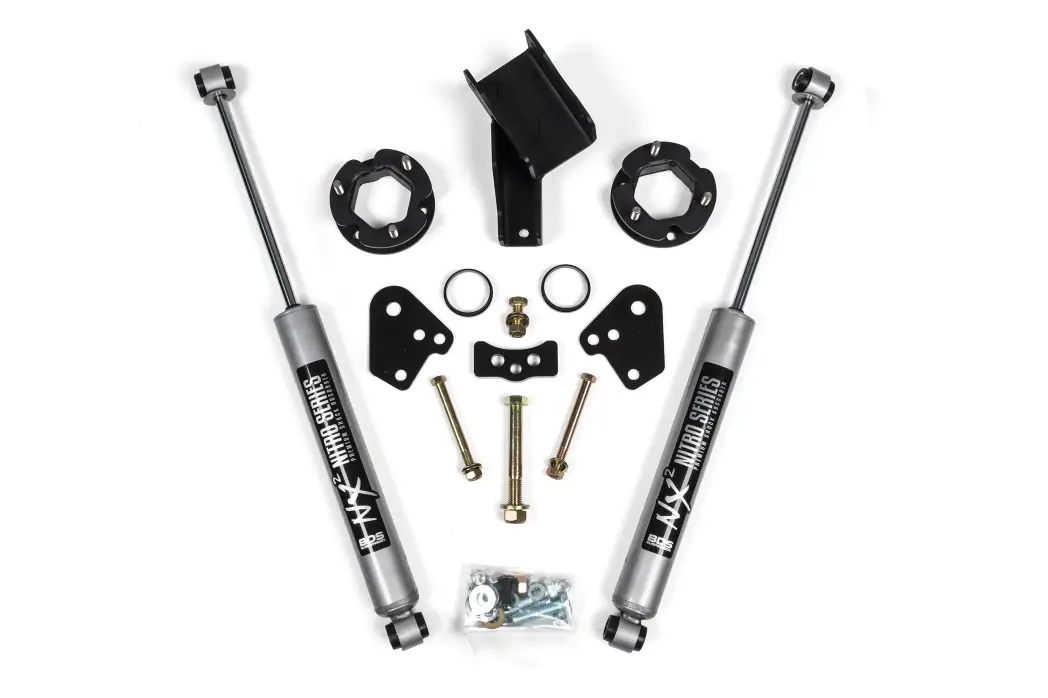

BDS1546H | BDS Suspension 2.5 Inch Lift Kit For Ford Ranger 4WD | 2019-2023 | NX2 Nitro Series Shocks

• Easy, 100% Bolt-on installation
• Maintains factory-like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

• 285 / 70 with 17 x 8 and in. Backspace
• 285 / 65 with 18 x 9 and in. Backspace

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.
2. Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
3. Strut disassembly required, high quality wall mounted strut compressor and skilled technichian recommended.
4. Will NOT work on trucks equipped with cast steel steering knuckles.
5. Wil NOT work with Tremor models.

Installation

Specialty Tools Needed :

35mm Axle Nut Socket, Air Hammer (Recommended), Step Drill Bit, Cut-off Tool, Drill / Bit Set, Strut Compressor

Specification
