BDS1554FSL | BDS Suspension 2 Inch Lift Kit Fox 2.0 Coil-over For Ford F-150 4WD | 2009-2013
2 Inch Lift Kit Fox 2.0 Coil-over For Ford F-150 4WD | 2009-2013
Description
Level out your 2009-2013 Ford F150 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
Features & Benefits
- FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
Recommended Tires & Wheels
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
FOX 2.0 Coil-Over Shocks
These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft and come preloaded-with-springs and top-plate for easy installation.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Important Notes
- Will not fit HD models (7 lug).
- Does not fit SVT Raptor.
Installation
Est. Install Time :
3 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
204-592 Ball Joint Separator (Recommended), Basic Hand Tools, Jack / Jack Stands
Specification
- Front Lift Method : Coil-Over
- Rear Lift Method : Stock
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 0"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2009 | Ford | F-150 | FX4 | 4WD | ALL | ALL | ALL |
2009 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2009 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2009 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2009 | Ford | F-150 | STX | 4WD | ALL | ALL | ALL |
2009 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2009 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | FX4 | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | STX | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2010 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | FX4 | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | Lariat Limited | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | STX | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2011 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | FX4 | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | STX | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2012 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | FX4 | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | Limited | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | STX | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2013 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |

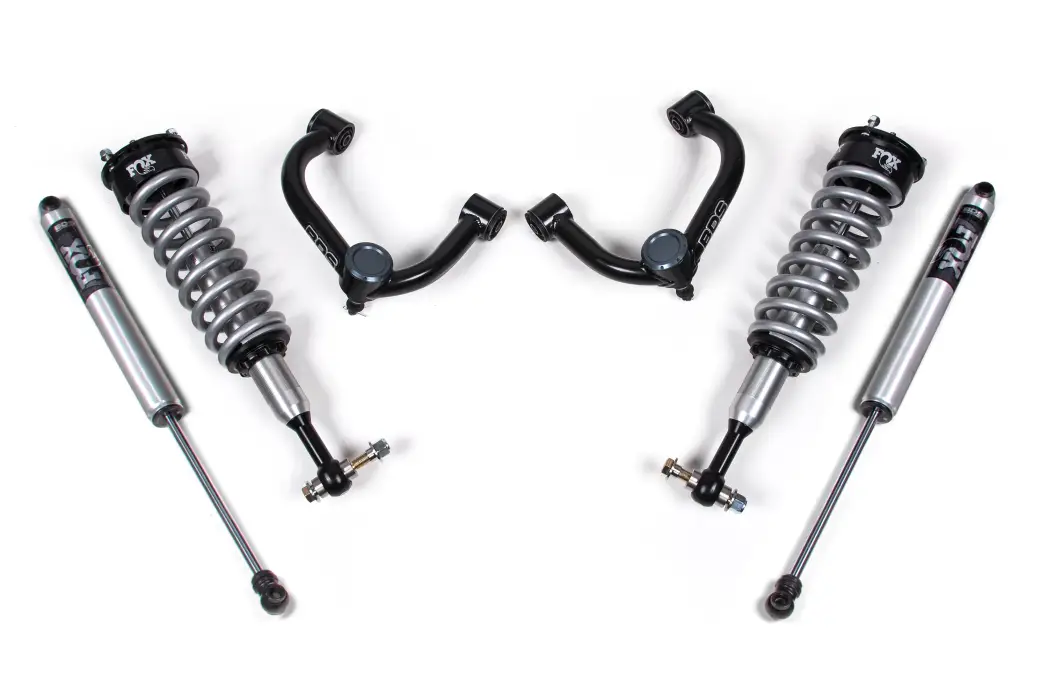

Component List
1 BDS123253 2004-2020 F150 Upper Control Arm Box Kit
2 FOX98502006 09-ON Ford F150 4WD Front Coilover, PS, 2.0, IFP, 5.4", 0-2" Lift
2 FOX98224651 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
Tires & Wheels Recommenations
Details
- BDS1554FSL
- BDS1554FSL
- 840416403503
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 65.0 lbs.
- W12.0000” x H6.0000” x L19.0000”
- Free Ground Shipping | Exclusions Apply*
