55740 | Rough Country 6 Inch Lift Kit For Ford F-150 4WD | 2015-2020 | Front M1 Monotube, Rear M1 Monotube Shocks

6 Inch Lift Kit | 2015-2020 | Ford F-150 Pickup 4WD | Front M1 Monotube, Rear M1 Monotube Shocks

55740
Pricing: $2,248.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Give your Ford F-150 an aggressive new look and unparalleled off-road performance with Rough Country's 6-inch Suspension Lift. This all-inclusive kit features everything needed to take your Ford off the freeway and into the fields.

Featuring a set of durable lifted knuckles and strut spacers, you'll gain enough ride height to run up to 35-inch tires with proper wheel spacing! A set of differential drop brackets, sway-bar drop brackets, brake line brackets, and a drive shaft spacer help keep everything at optimum angles for a factory-like ride, even after lifting. A 1/4-inch thick plate steel front and rear crossmember bring uncompromised strength and good looks to your truck, and are updated to fit the new F-150 design. Our Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts, and were specifically engineered by Rough Country to prevent against axle-wrap.

A set of Rough Country's premium N3 shocks are also included in this kit, featuring a large diameter body with a chrome-hardened piston rod and long-lasting polyurethane bushings.

Best of all, Rough Country's Ford F-150 Lift Kit is backed by our Lifetime Replacement Warranty.

FEATURES

  • Increased ground clearance
  • Track width remains the same as factory
  • Works with 18in or larger factory wheels*
  • Levels the front with the rear of the vehicle
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

OPTIONAL N3 LOADED STRUTS

  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX COILOVERS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT fit Single Cab models.
  • Will fit Eco Diesel engine models.
  • Requires cutting and drilling.
  • *When using 18in or larger factory wheels the maximum tire width is 11.5-inches.

Vehicle Applications

2015 - 2020 Ford F-150 Pickup

NOTES - IMPORTANT
Does NOT fit Single Cab models.
Requires cutting and drilling.
*When using 18in or larger factory wheels the maximum tire width is 11.5-inches.

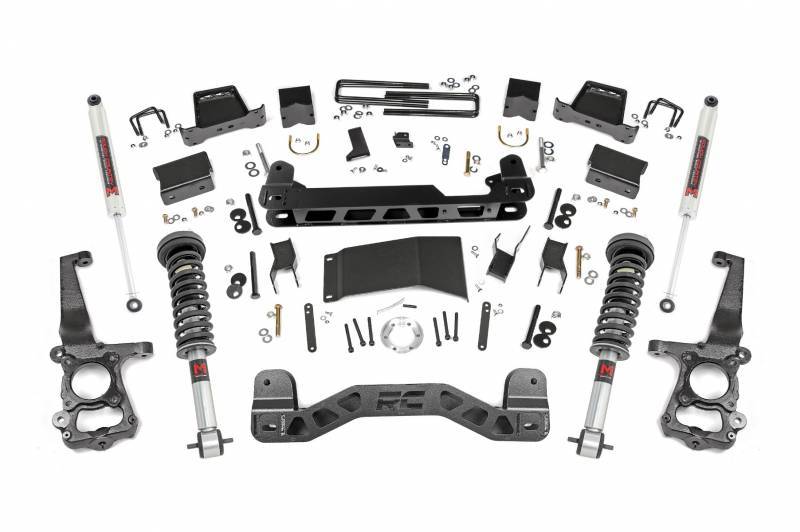

Components

FRONT
Lifted knuckles
Upper strut spacers
Front crossmember
Rear crossmember
Sway-bar drop brackets
Differential drop brackets
Brake line brackets
Driveshaft spacer
Hardware

REAR
Fabricated anti-wrap lift blocks
Brake line relocation brackets
U-bolts
Hardware

SHOCKS
(2) Shocks

Tire & Wheels

35x12.50R18 18x8.5 6x135 +0 -
35x12.50R18 18x8.5 6x135 +1 -
35x12.50R18 18x9 6x135 -12 -
35x12.50R18 18x9 6x135 +0 -
35x12.50R18 18x9 6x135 +1 -
35x12.50R18 18x10 6x135 -25 Minor trimming
35x12.50R18 18x10 6x135 -24 Minor trimming
35x12.50R20 20x9 6x135 -12 -
35x12.50R20 20x9 6x135 +0 -
35x12.50R20 20x9 6x135 +1 -
35x12.50R20 20x10 6x135 -25 Minor trimming
35x12.50R20 20x10 6x135 -24 Minor trimming
35x12.50R20 20x10 6x135 -19 Minor trimming
35x12.50R20 20x10 6x135 -18 Minor trimming
35x12.50R20 20x12 6x135 -44 Trimming required
35x12.50R22 22x10 6x135 -25 Minor trimming
35x12.50R22 22x10 6x135 -24 Minor trimming
35x12.50R22 22x10 6x135 -19 Minor trimming
35x12.50R22 22x10 6x135 -18 Minor trimming
35x12.50R22 22x12 6x135 -44 Trimming required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
