51240 | Rough Country 6 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2017-2022 | Diesel, Rear Factory Springs, 3.5" Axle, M1 Shocks

6 Inch Lift Kit | Ford F-250/F-350 Super Duty 4WD | 2017-2022 | Does NOT Fit Dually Models | Rear Factory Springs, 3.5" Axle, M1 Shocks

51240
Pricing: $2,290.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your truck to new heights with Rough Country's 6in Radius Arm Suspension Lift! This all-inclusive kit comes with everything you need for a total transformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Radius Arm Suspension Lift features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. At 27 lbs each, these beefy, upgraded Radius Arms dwarf stock equipment and feature durable Clevite Rubber Bushings for maximum vibration absorption.

This kit includes a set of lifted coil springs and ultra-durable, fabricated anti-wrap rear blocks that prevent binding and axle wrap. Best of all, this kit comes with your choice of Rough Country’s N3, V2 Monotube, or Vertex Adjustable Reservoir shocks! Includes Rough Country’s Lifetime Replacement Warranty

FEATURES

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Includes durable Radius Arms
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Models equipped with a 10-speed transmission must remove dial pin.
  • Does NOT fit gas engine models.
  • Does NOT fit dually models.
  • Does NOT fit manual shift transfer cases
  • Does NOT work on models equipped with Tremor Factory Trim Package

Vehicle Applications

2017 - 2022 Ford F-250 Super Duty
2017 - 2022 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT F-350 models.
Does NOT fit dually models.
Does NOT fit manual shift transfer cases Does NOT fit gas engine models.
Does NOT fit models with 4" rear axle tube ONLY fits models equipped with rear factory contact overload springs Does NOT work on models equipped with Tremor Factory Trim Package

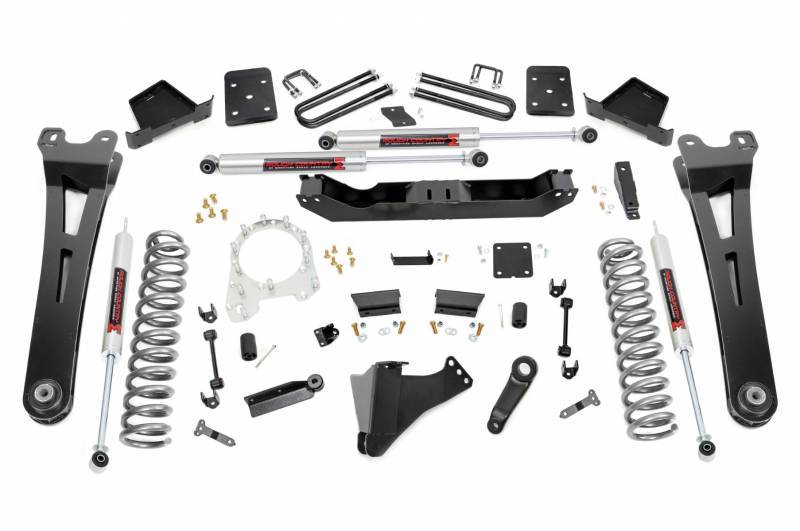

Components

FRONT
Lifted coil springs
Radius arms
Clocking ring kit
Sway-bar links
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

37x12.50R17 17x9 8x170 -12 -
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 Minor Trimming
37x12.50R20 20x10 8x170 -24 Minor Trimming
37x12.50R20 20x10 8x170 -19 Minor Trimming
37x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x9 8x170 -12 -
37x12.50R22 22x9 8x170 +0 -
37x12.50R22 22x9 8x170 +1 -
37x12.50R22 22x10 8x170 -25 Minor Trimming
37x12.50R22 22x10 8x170 -24 Minor Trimming
37x12.50R22 22x10 8x170 -19 Minor Trimming
37x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
