56740 | Rough Country 4.5 Inch Lift Kit For Ford F-250 Super Duty 4WD | 2015-2016 | Diesel, Rear Overload Springs, M1 Shocks

4.5 Inch Lift Kit | Ford F-250 Super Duty 4WD | 2015-2016 | Does NOT Fit Dually Models | Diesel, Rear Overload Springs, M1 Shocks

56740
Pricing: $1,592.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Give your 15-16 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be the equal height with the rear for a levelled, better-than-stock look that gives an improved ride height and a more aggressive appearance.

This kit features a set of front, lifted coil springs allowing you to gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting.

A set of Rough Country's premium N3 shocks are also included. These fine-tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 4.5" 15-16 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 4.5” Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!

FEATURES

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Radius arm drop brackets allow for the properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High-Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT fit F-350 models.
  • Does NOT fit gas engine models.
  • Does NOT fit dually models.
  • A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)

SPECS

  • Est. Install Time 4-6 hours

Vehicle Applications

2015 - 2016 Ford F-250 Super Duty

NOTES - IMPORTANT
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit dually models.
Only fits models with Overload Springs.
A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft.
(#1197)

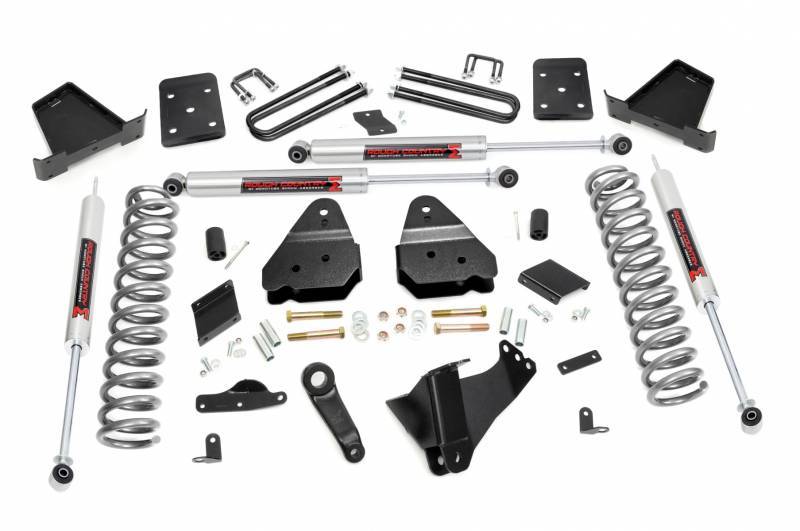

Components

FRONT
Lifted coil springs
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

35x12.50R17 17x9 8x170 -12 -
35x12.50R17 17x9 8x170 +0 -
35x12.50R17 17x9 8x170 +1 -
35x12.50R18 18x9 8x170 -12 -
35x12.50R18 18x9 8x170 +0 -
35x12.50R18 18x9 8x170 +1 -
35x12.50R20 20x9 8x170 -12 -
35x12.50R20 20x9 8x170 +0 -
35x12.50R20 20x9 8x170 +1 -
35x12.50R20 20x10 8x170 -25 Minor Trimming
35x12.50R20 20x10 8x170 -24 Minor Trimming
35x12.50R20 20x10 8x170 -19 Minor Trimming
35x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming
35x12.50R22 22x10 8x170 -25 Minor Trimming
35x12.50R22 22x10 8x170 -24 Minor Trimming
35x12.50R22 22x10 8x170 -19 Minor Trimming
35x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 Minor Trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
