54040 | Rough Country 6 Inch Lift Kit For Ford F-250 Super Duty | 2011-2014 | Diesel, Rear Factory Overloads, M1 Shocks

6 Inch Lift Kit | Ford F-250 Super Duty | 2011-2014 | Does NOT Fit Dually Models, Diesel, Rear Factory Overloads, M1 Shocks

54040
Pricing: $2,081.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Compliment your 11-14 Ford F-250's aggressive, good looks with Rough Country's 6-inch Radius Arm Lift Kit. Rough Country's 6-inch Lift Kit was engineered to retain the F-250's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Radius Arm Suspension Lift features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. At 27lbs each, these beefy, upgraded Radius Arms dwarf stock equipment while and feature durable Clevite Rubber Bushings for maximum vibration absorption.

This all-inclusive kit also features an adjustable alignment cam at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - perfect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning-fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's 6-inch Radius Arm Lift Kit is backed by our Lifetime Replacement Warranty.

FEATURES

  • 100% bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Includes heavy-duty radius arms equipped with durable Clevite Rubber Bushings for maximum vibration absorption.
  • New radius arms help maintain factory angles.
  • Includes adjustable alignment cam at the axle to allow caster adjustment
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High-Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT F-350 models.
  • Does NOT fit dually models.
  • Does NOT fit gas engine models.
  • Must know if rear leaf springs are equipped with a factory overload spring

SPECS

Est. Install Time 6-8 hours

Vehicle Applications

2011 - 2014 Ford F-250 Super Duty

NOTES - IMPORTANT
Does NOT F-350 models.
Does NOT fit dually models.
Does NOT fit gas engine models.
ONLY fits models equipped with rear factory contact overload springs

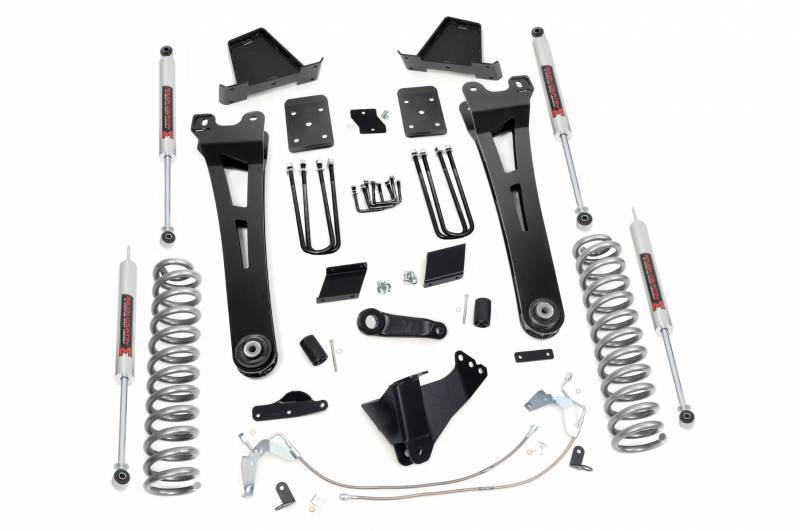

Components

FRONT
Lifted coil springs
Radius arms
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation bracket
Pitman arm
Stainless steel brake lines
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated anti-wrap lift blocks
Brake line bracket
U-bolts
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

37x12.50R17 17x9 8x170 -12 -
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 -
37x12.50R20 20x10 8x170 -24 -
37x12.50R20 20x10 8x170 -19 -
37x12.50R20 20x10 8x170 -18 -
35x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x10 8x170 -25 -
37x12.50R22 22x10 8x170 -24 -
37x12.50R22 22x10 8x170 -19 -
37x12.50R22 22x10 8x170 -18 -
35x12.50R22 22x12 8x170 -44 Minor Trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
