69340 | Rough Country 3.5 Inch Lift Kit With Control Arm Drop For Jeep Wrangler JK 4WD | 2007-2018 | M1 Shocks

3.5 Inch Lift Kit With Control Arm Drop | Jeep Wrangler JK 4WD | Does NOT Fit 4 Door Models | M1 Shocks

SKU: 69340

Pricing: $1,033.95

Description
Vehicle Applications
DETAILS
Components
Tires & Wheels
Details
Shipping
Documents

Description

Get the smoothest-riding, best-handling Jeep JK Lift Kit on the market with Rough Country’s 3.5in Control Arm Drop Kit! This all-inclusive kit comes with everything you need for a total transformation of your Jeep that promotes impressive driveability and a smooth on or off-road ride quality!

This kit features a set of front and rear lifted coil springs that offer enough ground clearance to run 35x12.50 tires and Rough Country’s premium N3 Shocks for a silky smooth ride. These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod, fortified seals, and a faster-cooling 54mm shock body, Rough Country’s N3 Shocks offer a premium driving experience. This kit also features control arm drop brackets, engineered to relocate your factory control arms to the optimum geometry for absolutely incredible handling and driveability you won’t find in other setups.

FEATURES

Easy bolt-on installation
Increased ground clearance
Control arm drop brackets promote optimum geometry for smooth handling & ride quality
Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.
Factory tuned coil springs are based on the stock spring rate
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

NOTES - IMPORTANT

Does NOT fit 4-door (Unlimited) models.
2012-2018 models require exhaust modifications to clear the front driveshaft (#1030)
On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.

SPECS

Est. Install Time 4-5 hours

Vehicle Applications

2007 - 2018 Jeep Wrangler JK

NOTES - IMPORTANT
Does NOT fit 4-door (Unlimited) models.
2012-2018 models require exhaust modifications to clear the front driveshaft.
(#1030) On Automatic equipped vehicles

DETAILS

due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft.
Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed.
If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft.
Rough Country does offer this driveshaft if needed.

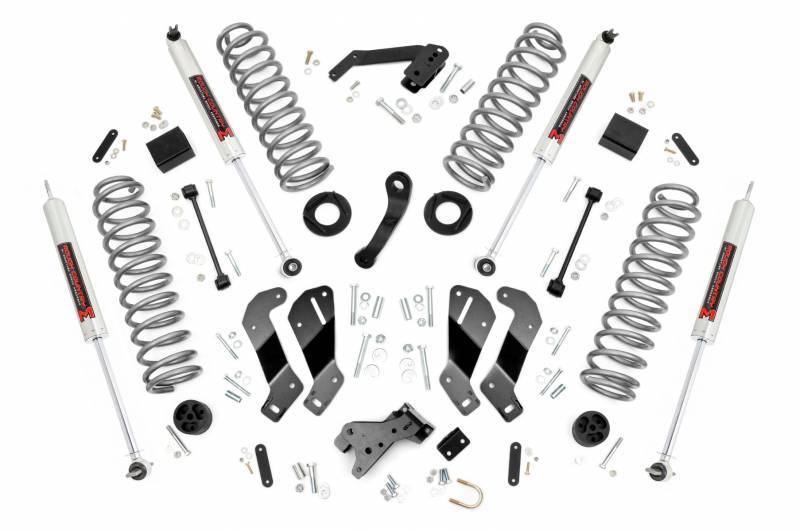

Components

FRONT
Lifted coil springs
Control arm drop brackets
Track bar drop bracket
Pitman arm
Brake line relocation brackets
Hardware

REAR
Lifted coil springs
Coil correction plates
Track bar drop bracket
Extended sway-bar links
Brake line relocation brackets
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

35x12.50R17 17x9 5x5.0 -12 -
35x12.50R17 17x9 5x5.0 -6 -
35x12.50R18 18x9 5x5.0 -12 -
35x12.50R18 18x9 5x5.0 -6 -
35x12.50R20 20x9 5x5.0 -12 -
295/60R20 20x9 5x5.0 -12 -
35x12.50R20 20x9 5x5.0 -6 -
