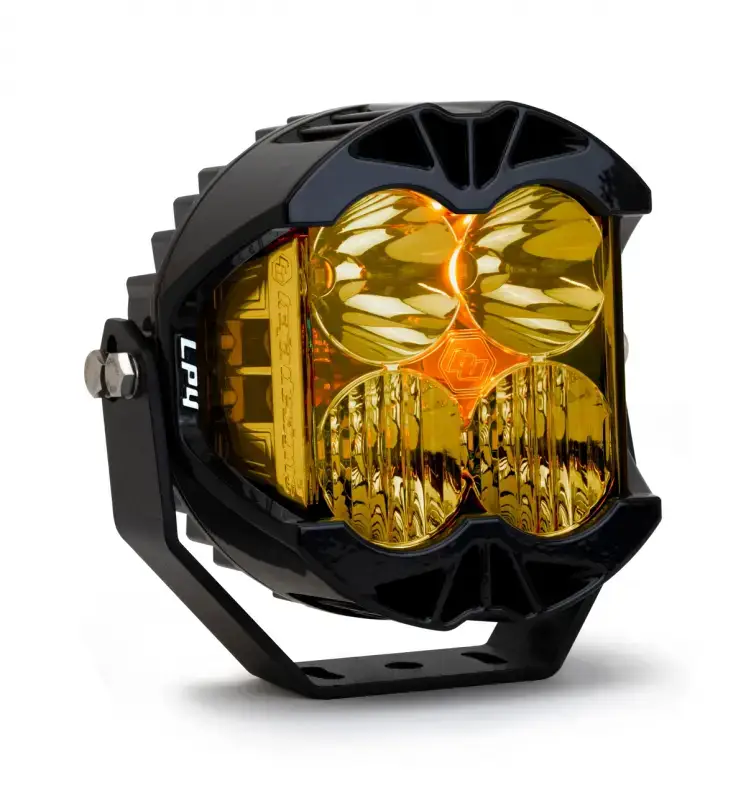

290013 | Baja Designs LP4 Pro LED Auxiliary Light Pod | Single, Driving/Combo Light Pattern, Amber, Universal

LP4 Pro LED Auxiliary Light Pod | Single, Driving/Combo Light Pattern, Amber, Universal - Check Specification Before Ordering

290013
Pricing: $608.75
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200-degree spread of usable LED light. This light pumps out 7,050 forward-projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 easily fulfills all your lighting needs.

NOTE:

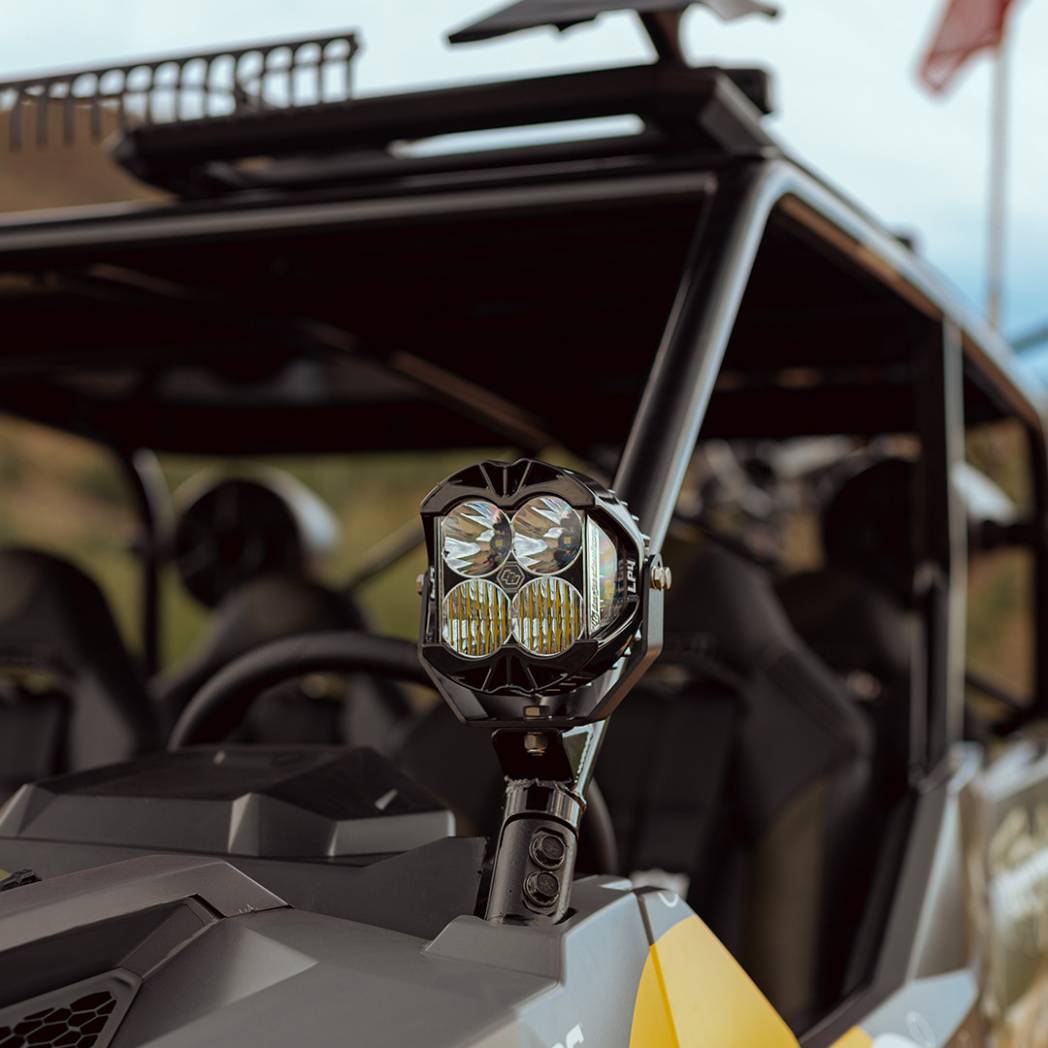

When installing LP4 lights on the a-pillar/ditch light configuration, we recommend the IPT covers to block hood/cabin glare.

Two variety of patterns are available in this series to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 290013

Dimensions

Depth (in.) 3.200
Height (in.) 5.100
Length (in.) 5.100
Weight (lbs.) 2.800

Specifications

Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8857
Description Driving/Combo; Amber
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Amber
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Type LED
Secondary Lighting Technology Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 3.9 lbs.
  • W9.9000” x H5.2000” x L11.5000”
  • Free Ground Shipping | Exclusions Apply*
