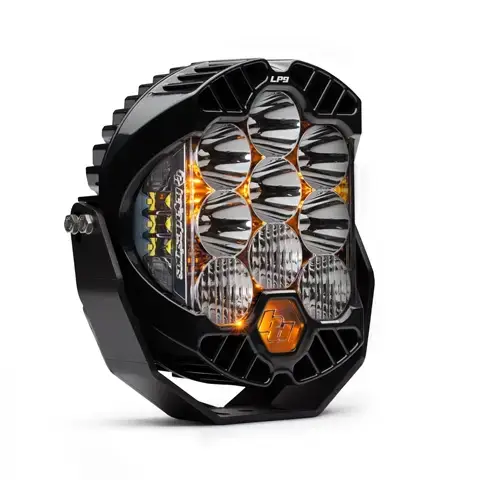

320003 | Baja Designs LP9 Pro LED Auxiliary Light Pod | Single, Driving/Combo Light Pattern, Clear, Universal
LP9 Pro LED Auxiliary Light Pod | Single, Driving/Combo Light Pattern, Clear, Universal - Check Specification Before Ordering
Description
The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 Pro utilizes nine forward-projecting LEDs to produce 12,547 Lumens, and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens combined with the forward-facing LEDs provides an incredible 200-degree spread of usable light.
The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power modes, the LP9 Pro will fulfill all your lighting needs. All Baja Designs feature uService® technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Variety of patterns to suit your needs:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).
Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 320003
Dimensions
Depth (in.) | 3.250 |
Height (in.) | 8 |
Length (in.) | 8 |
Weight (lbs.) | 6.500 |
Specifications
Amperage Rating (A) | 9 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.200 |
Backlight Wattage (W) | 2.800 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 12547 |
Description | Driving/Combo; Clear |
Housing Color | Black |
Housing Material | Hard Anodized Machined Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lens Material | High Beam/Low Beam/Day-Time Running Backlighting |
Lighting Quantity | 9 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP9 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.520 |
Secondary Brightness (Lumens) | 2302 |
Secondary Light Quantity | 6 LEDs |
Secondary Lighting Type | LED |
Secondary Lighting Technology | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 21 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 124.200 |
Wiring Harness Included | No |
Standards & Compliance
Patent No. | 5,504,603 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
