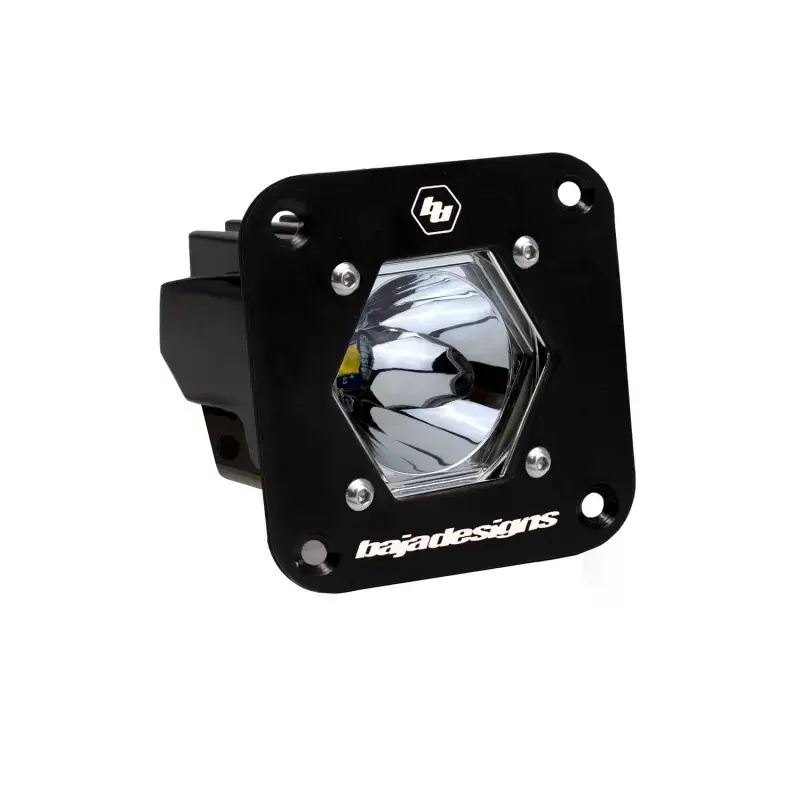

381001 | Baja Designs S1 Black Flush Mount LED Auxiliary Light Pod | Single, Spot Light Pattern, Clear, Universal

S1 Black Flush Mount LED Auxiliary Light Pod | Single, Spot Light Pattern, Clear, Universal - Check Specification Before Ordering

381001
Pricing: $186.19
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. ion.

With the 2.1-inch length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you’re looking for a light to drive off of, or something to light up a campsite the S1 exceeds your expectations! One of the key features that makes our S1 Flush Mounts unique is that the hole to mount them can be made by a one 2.5-inch hole saw. This makes for an extremely easy install!

Variety of patterns to suit your needs:

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120-degree circle that projects about 40 feet.  This pattern is not suitable for driving. (Lighting Zone 7).

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 381001

Dimensions

Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400

Specifications

Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Flush Mount; Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 1
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 Flush Mount LED Light Pod
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
