567805 | Baja Designs XL Sport Auxiliary LED Light Pod | Pair, Wide Cornering Light Pattern, Clear, Universal
XL Sport Auxiliary LED Light Pod | Pair, Wide Cornering Light Pattern, Clear, Universal
Description

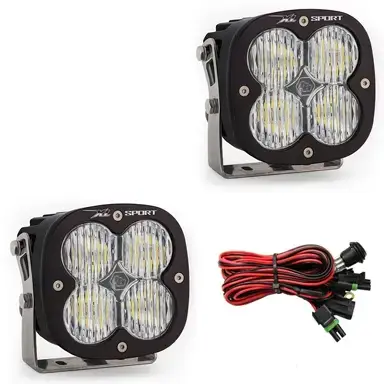

Two is always better than one, right? We think so, which is why we’re offering a pair of XL Sport LED auxiliary lights with wiring harness for one low price. The XL Sport lights up your world in style, with the perfect combination of affordability and performance.
XL Sport lights use four Cree LEDs to beam out 3,150 lumens each of daylight-quality light in a variety of beam patterns. The LED High-Speed Spotlight utilizes special reflectors to extend the light throw for long-distance visibility when you’re giving it full gas. USPTO Reg No. 5,766,659
Available in a variety of lighting patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).
Spot: A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
DETAILED SPECS
SKU: 567805
Dimensions
Depth (in.) | 3.650 |
Height (in.) | 4.430 |
Length (in.) | 4.430 |
Weight (lbs.) | 2.450 |
Specifications
Amperage Rating (A) | 2.200 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3162 |
Description | Wide Cornering; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Sport LED Light Pod Pair w/ Wiring Harness |
Universal or Specific | Universal |
Wattage (W) | 30.360 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
