577803 | Baja Designs XL-R Sport Auxiliary LED Light Pod | Pair, Driving/Combo Pattern, Clear, Universal
XL-R Sport Auxiliary LED Light Pod | Pair, Driving/Combo Pattern, Clear, Universal
Description

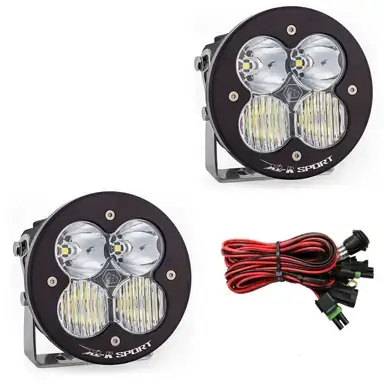

Two is always better than one, right? We think so, which is why we’re offering a pair of XL-R Sport LED auxiliary lights with wiring harness for one low price. The XL-R Sport lights up your world in style, with the perfect combination of affordability and performance. They use four Cree LEDs to beam out 3,150 lumens each of daylight-quality light in a variety of beam patterns. The LED High-Speed Spotlight utilizes special reflectors to extend the light throw for long-distance visibility with the throttle on the floorboard. USPTO Reg No. 5,766,659
Available in a variety of lighting patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).
Spot: A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
DETAILED SPECS
SKU: 577803

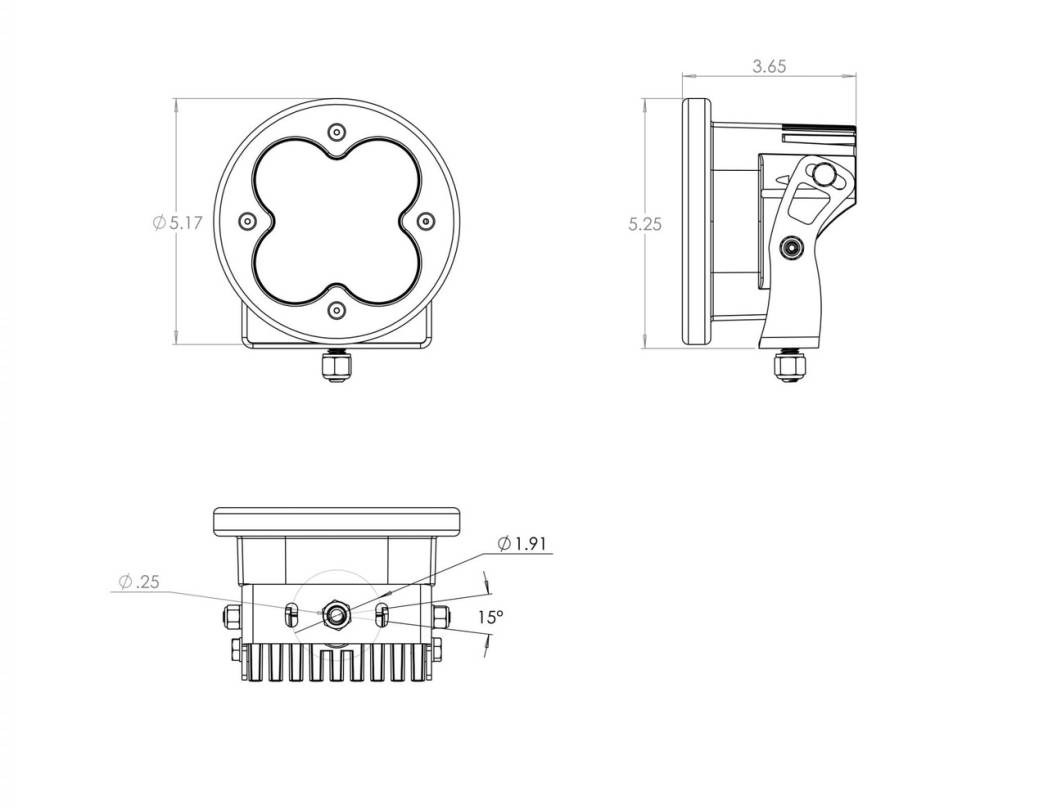

Dimensions
Depth (in.) | 3.650 |
Height (in.) | 5.25 |
Length (in.) | 5.24 |
Weight (lbs.) | 2.45 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Driving/Combo; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | High Beam/Dimmer Sold Separately to Enable High/Low Feature |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL-R Sport LED Light Pod Pair w/ Wiring Harness |
Universal or Specific | Universal |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
