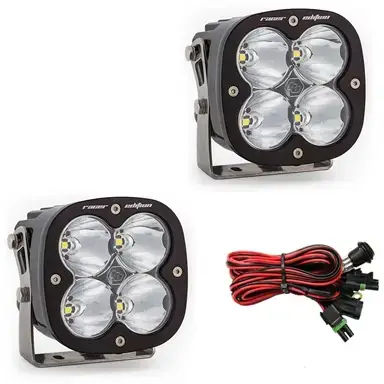

687802 | Baja Designs XL Racer Edition Auxiliary LED Light Pod | Pair, Racer Spot, Light Pattern, Clear, Universal

XL Racer Edition Auxiliary LED Light Pod | Pair, Racer Spot, Light Pattern, Clear

687802
Pricing: $1,131.39
Qty:
Free Ground Shipping | Exclusions Apply*

Description

It takes a special kind of person to brave the challenges of off-road racing — and a special kind of auxiliary light to keep them going after dark. Baja Designs is proud to offer the XL Racer Edition LED Auxiliary Light Pod. At 4,300 lumens, the XL Racer throws light an average of 40 percent further than the XL Pro, helping you see far ahead even at more than 100mph.

Enjoy nearly 50,000 hours of bright, efficient lighting to enhance your nighttime off-roading experiences! The XL Racer Edition LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature.

The Racer Spot pattern is a longer and narrower 4-degree beam for illumination further down the trail. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. As always, Baja Designs provides the best in auxiliary LED lights with a 30-day Satisfaction Guarantee, and Limited Lifetime Warranty. USPTO Reg No. 5,766,659

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

DETAILED SPECS

SKU: 687802

Specifications

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 3.300
Average Rated Life (hr.) 49,930
Beam Pattern Racer Edition Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2800
Description Racer Edition Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimming Feature (20%)
Lighting Quantity 4
Lighting Technology High Intensity LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL80 Racer Edition LED Light Pod
Universal or Specific Universal
Wattage (W) 45.540
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.4 lbs.
  • W9.9000” x H5.1000” x L11.6000”
  • Free Ground Shipping | Exclusions Apply*
