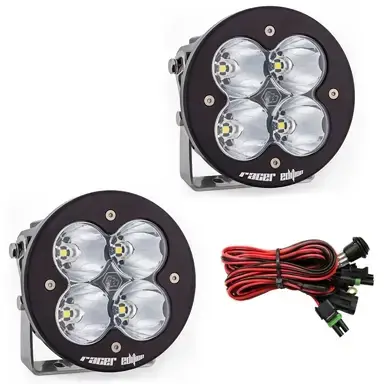

697802 | Baja Designs XL-R Racer Edition Auxiliary LED Light Pod | Pair, Racer Spot Light Pattern, Clear, Universal
XL-R Racer Edition Auxiliary LED Light Pod | Pair, Racer Spot Light Pattern, Clear, Universal
Description
Two is always better than one, right? We think so, which is why we’re offering a pair of XL Racer Editions. Baja Designs is proud to introduce the XL Racer, with 4,300 lumens. The XL Racer throws light an average of 40 percent further than the XL Pro, helping you see far ahead even at more than 100mph.
Enjoy nearly 50,000 hours of bright, efficient lighting to enhance your nighttime off-roading experiences! The XL Racer Edition LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature.
The Racer Spot pattern is a longer and narrower 4-degree beam for illumination further down the trail. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. USPTO Reg No. 5,766,659
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
DETAILED SPECS
SKU: 697802
Dimensions
Depth (in.) | 3.650 |
Height (in.) | 5.24 |
Length (in.) | 5.24 |
Weight (lbs.) | 2.45 |
Specifications
Amperage Rating (A) | 2.9 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Edition Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 4,300 |
Description | Round; Racer Edition Spot; Clear; Pair |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | High Beam/Dimming Feature (20%) |
Lighting Quantity | 4 |
Lighting Technology | High Intensity LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL-R 80 Racer Edition LED Light Pod Pair w/ Wiring Harness |
Universal or Specific | Universal |
Wattage (W) | 40 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
