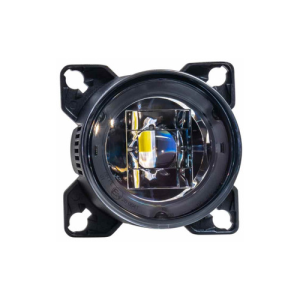

LF801 | Morimoto Sealed3 LED Headlights 90mm / Hi Beam | Each, Universal

Sealed3 LED Headlights 90mm / Hi Beam | Each, Universal - Check Specification Before Ordering

LF801
Pricing: $230.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

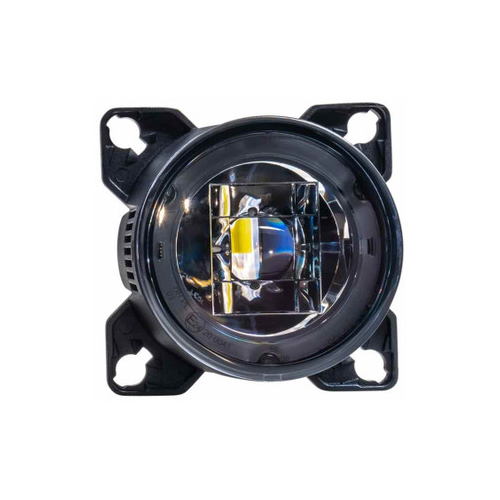

DESIGNED: As a standalone headlight, these 90mm LED projector housings are perfect for those who need a modern headlight, but have no pre-existing housing shell to mount them into. They are ideal as an LED Bus headlight. An LED RV headlight, and LED Tractor headlight, or an LED headlight for a custom kit car.

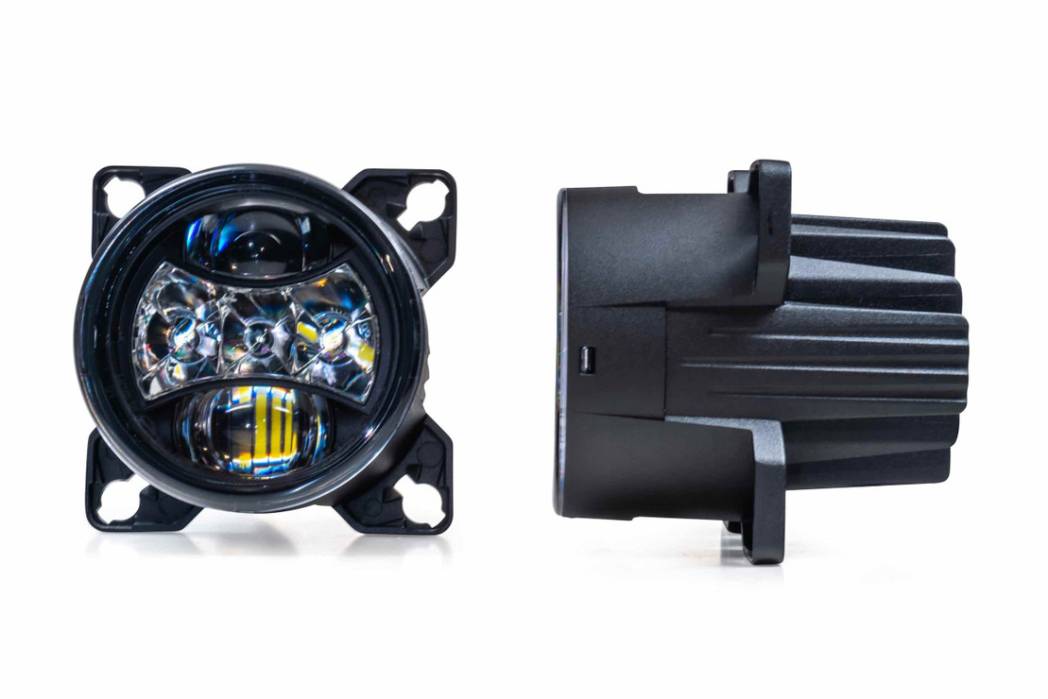

BEAM PATTERNS: These are available with different optics to suit your vehicle's needs perfectly. You can choose from either a dedicated LED low beam, a dedicated LED high beam, or a combination lamp with low and high beam together.

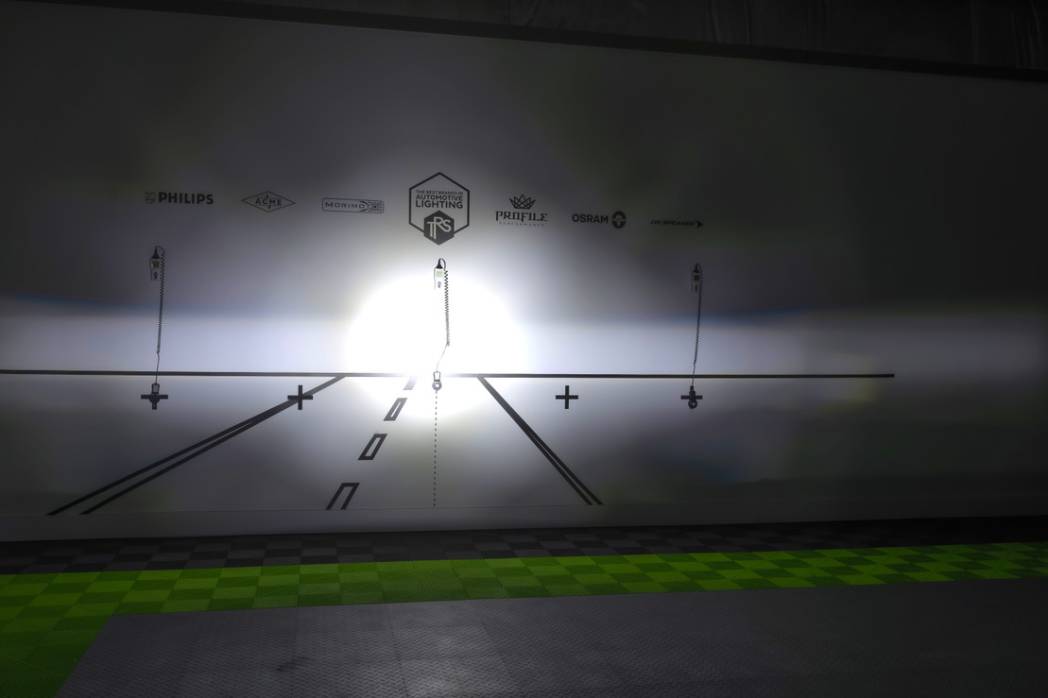

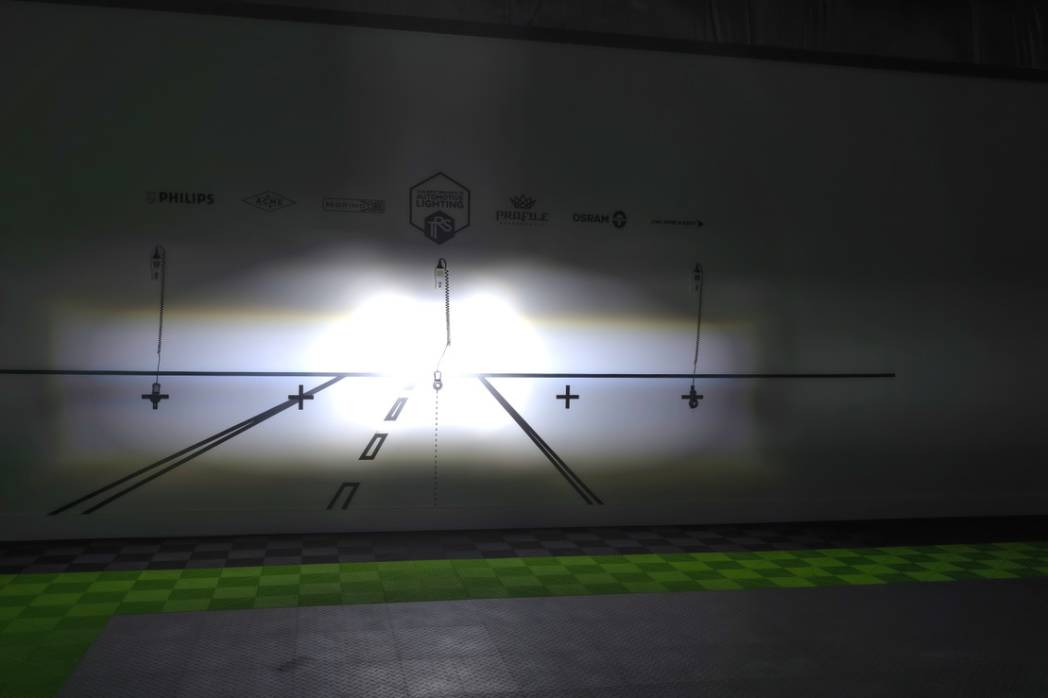

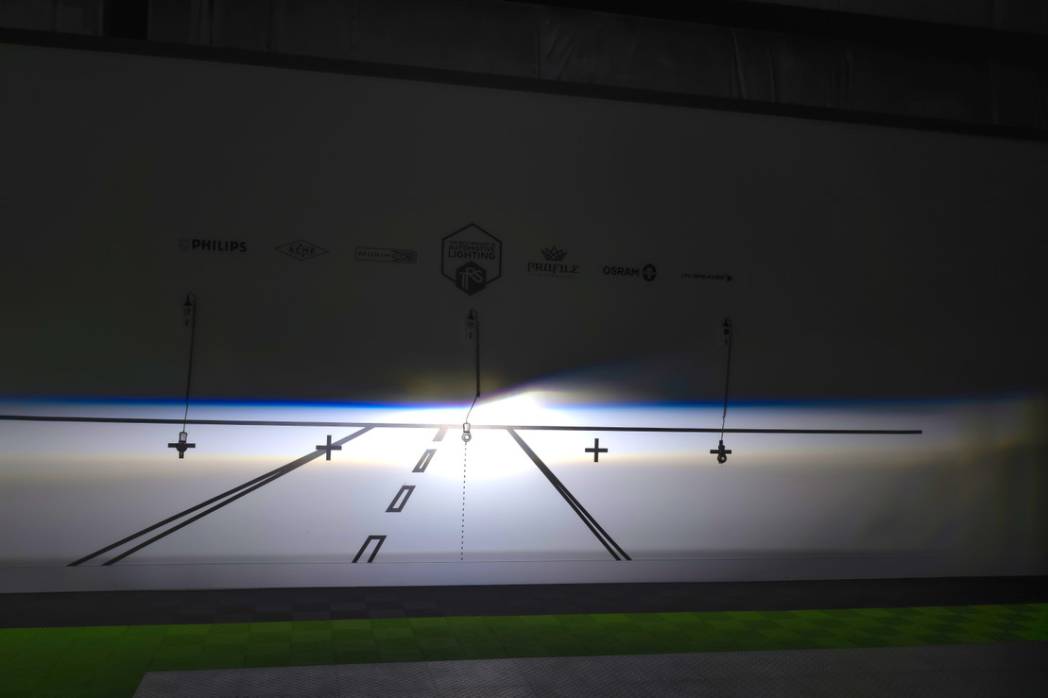

LIGHT OUTPUT: Is fantastic from the Sealed3 modules, and far superior to most alternatives in the same size range. The low beam model has a wide beam pattern with a proper distribution of light and a sloped LHD cutoff line (for use in N. America or other LHT countries) The high beam packs a nice punch and will put plenty of light down the road where you need it, and the combo Bi-LED essentially puts both of those beam patterns into one unit. They meet or exceed all DOT, SAE, and FVMSS108 standards for compliance.

ADJUSTERS INCLUDED: Each module comes with three threaded aiming adjuster rods that snap into the housings. While you will need a fitting on the other side to mount them up, you would be able to create a fully adjustable system both vertically and laterally with the hardware included.

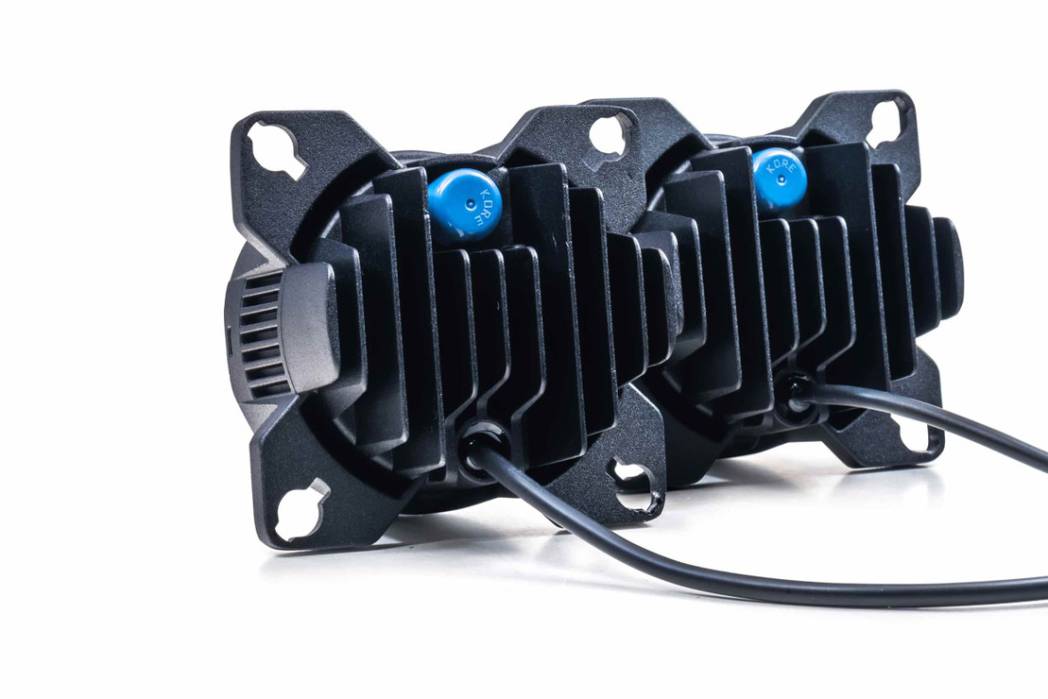

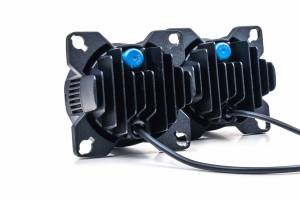

QUALITY: These 90mm Modules are IP67 rated for moisture resistance, their polycarbonate lenses are of OEM quality and will not fade or yellow for many years to come, and have a die-cast aluminum housing that's been powder-coated. The Bi-LED version has a 3-wire AMP input, and the low and high beam version use a more simple 12v +/- input that is very easy to wire up. They may not be inexpensive, but are among the best 90mm headlights in the world.

WHAT'S INCLUDED

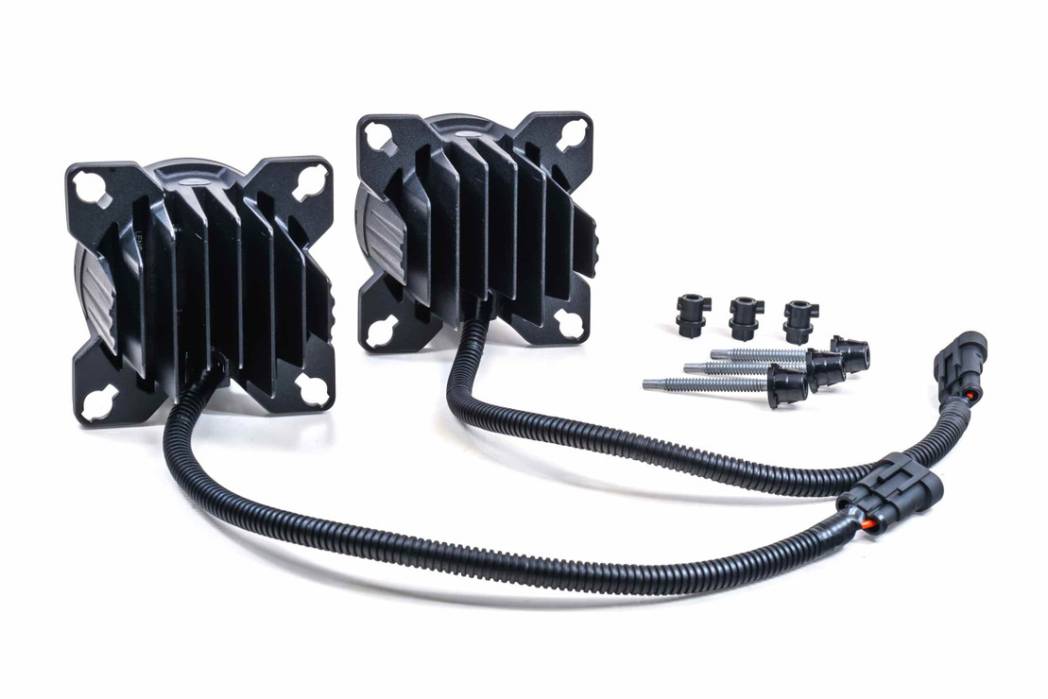

  • HEADLIGHT: 1x Sealed3 90mm LED Headlight
  • ADJUSTERS: 2x Vertical/Lateral Adjusters
  • WARRANTY: 5 Years

COMPATIBILITY

  • BUSES: Yes
  • RV/MOTORHOME: Yes
  • TRACTORS: Yes
  • CUSTOM CARS: Yes
  • MOTORCYCLES: Yes
  • BEAM PATTERNS: Low, High, Combo Low/High
  • COMPLIANCE: ECE, DOT, SAE, FVMSS108 Standards

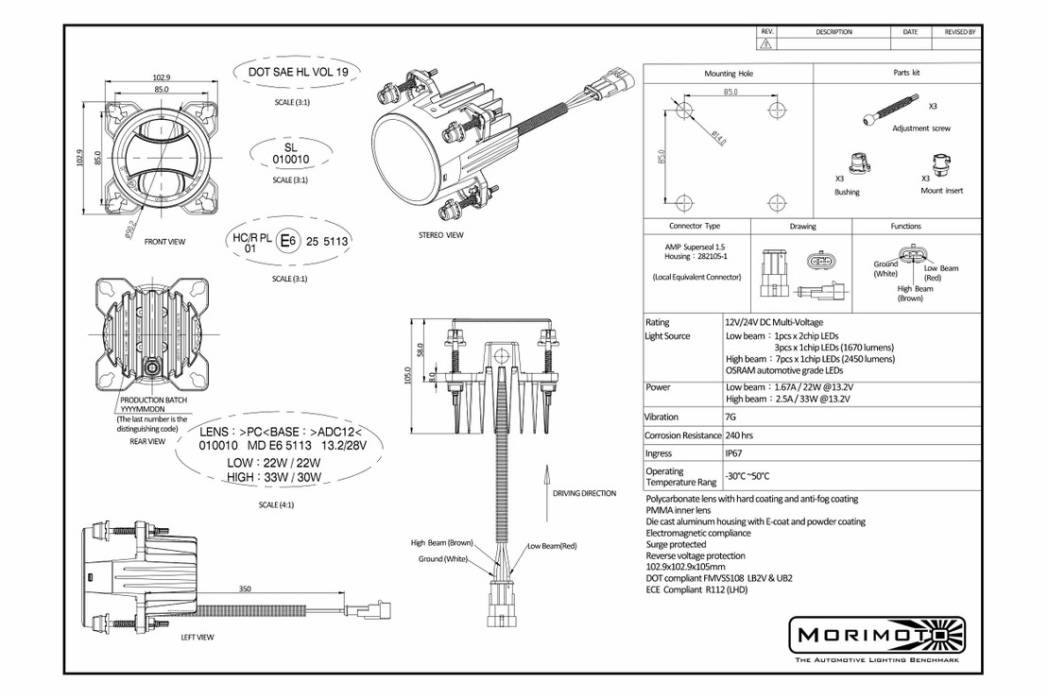

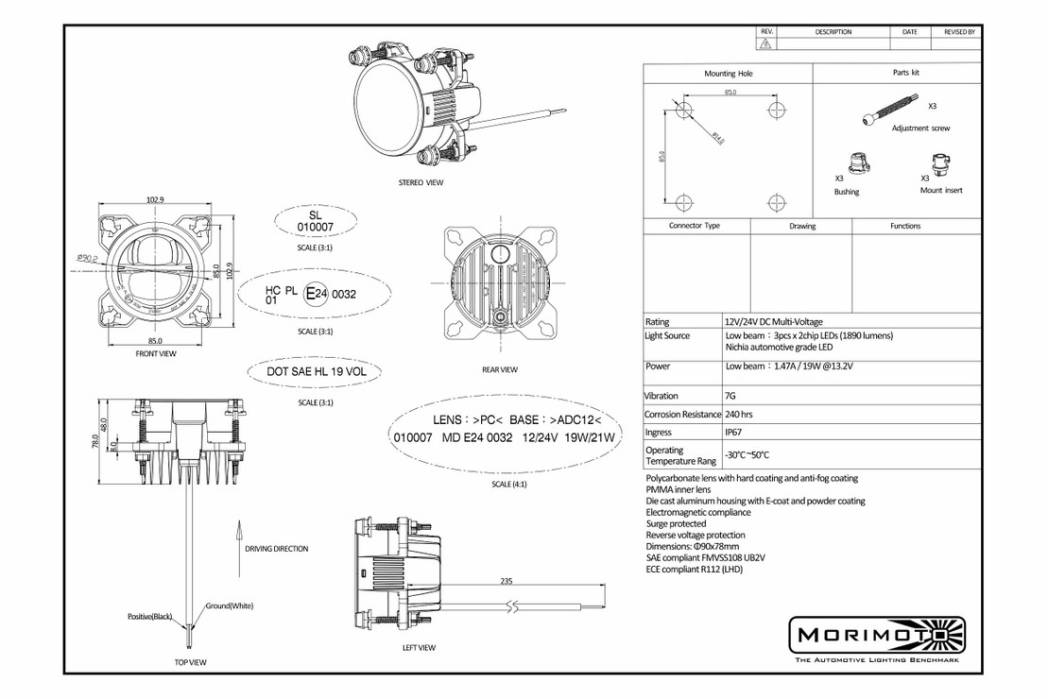

TECH SPECS

  • INTENSITY: 1,890lm (Low), 1,500lm (High)
  • POWER: 19w
  • INPUT VOLTAGE: 12-24V DC
  • CURRENT: 1.47A @ 12V DC
  • MATERIAL: Aluminum (Housing), Polycarbonate (Lens)
  • LIGHT SOURCE: Nichia (Low, High), Osram (Combo Low/High)
  • COMPLIANCE: IP67, Electromagnetic EMI

Application List

Universal - Check Specification Before Ordering

Details

  • LF801
  • LF801
  • 840203303214
  • Morimoto
  • Lighting
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.8 lbs.
  • W4.0000” x H3.0000” x L4.0000”
