BAF090 | Morimoto 2Banger Pod Link | Single Row Bar | Each

2Banger Pod Link | Single Row Bar | Each

BAF090
Pricing: $48.00
Qty:

Description

OFF-ROAD REINVENTED: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The Single row BangerBar continues that tradition as a bespoke light bar, and if one of our pre-configured options doesn't fit your needs, here you can order all of the components separately to build it out exactly as you wish!

CREATING A LIGHT BAR: Out of the 2Banger LED pods requires four main ingredients. The Pod links, which connect the individual pods together. The end mounting feet, which allow you to mount the bar to any flat surface, and the middle support leg, which supports longer runs of the bars.

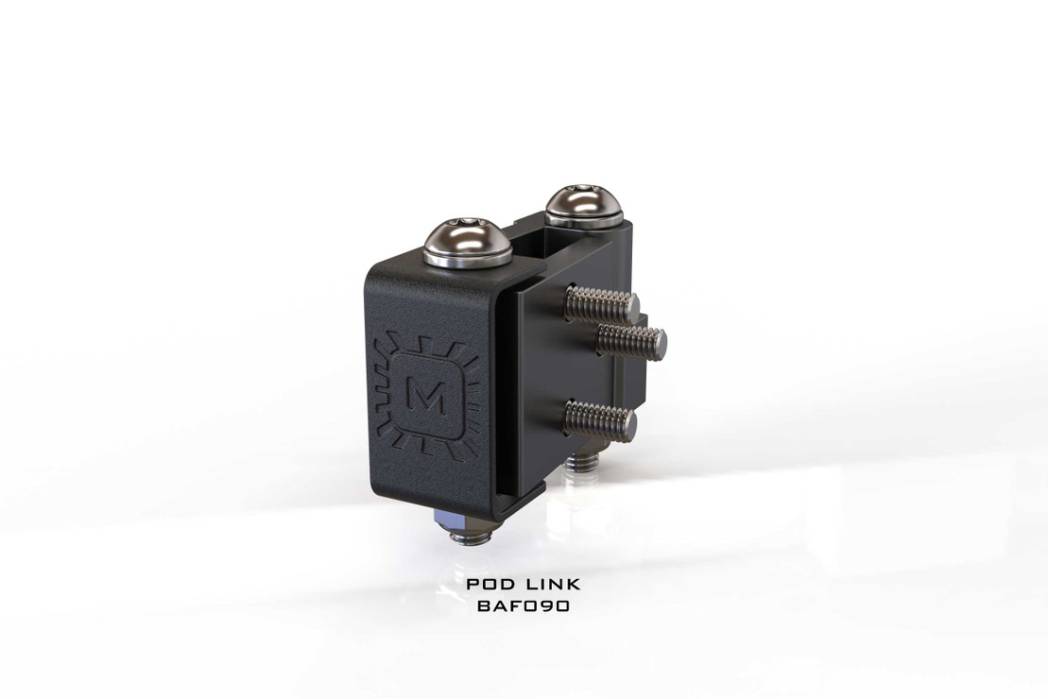

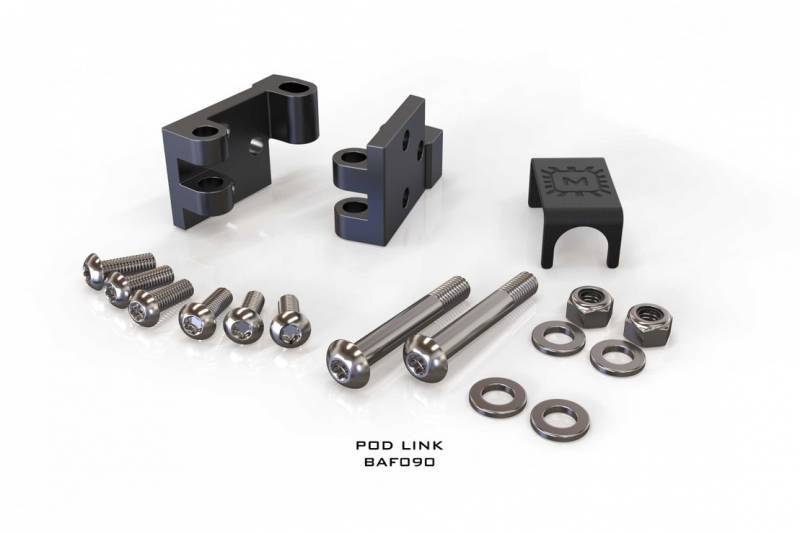

POD LINKS: These are responsible for securely bolting the pods together, and are the heart of the BangerBar system. Constructed of CNC machined 6061-T6 aluminum and then beautifully anodized, these allow the bars to be assembled in either perfectly-straight, or with up to nine degrees of radius. Radius-indicators are etched into the side of the pod so that you can set each one up with consistency. Powder-coated aluminum faceplates with embossed Morimoto M Logos and 316 stainless steel hardware included. How many do you need? Subtract one from the number of pods in your bar.

END MOUNTING FEET: These allow you to mount a complete BangerBar to any flat surface, such as a metal front bumper or roof rack. The kit includes a set of adjustable brackets for each end of the bar, and the L-Shaped feet that will secure it to your truck with confidence. The mounts are fully adjustable, allowing you to dial-in the vertical aim of the light bar. Each bar only requires one set for mounting.

MIDDLE SUPPORT LEG: These are designed to support the weight in the center of longer BangerBars, and will prevent the bar from vibrating with its rubber footing. Like the other components, they are fully adjustable to ensure the support is optimized for your roof line, rack height, etc. How many do you need? Less than 24 inches wide = No Legs Needed. 24 inches wide = One Leg... Over 24 inches wide = Two Legs.

WIRE HARNESS: This harness is a perfect match for Morimoto BangerBar setups with numerous pods linked together as a light bar. It is purposely designed to deliver enough power, and laid out with intention. There are two versions. One for 6-8 pods (BAF130H) and another for 10-12 pods (BAF131H).

WHAT'S INCLUDED

  • POD LINK
  • HARDWARE: All components include 316 stainless hardware
  • WARRANTY: Limited Lifetime

COMPATIBILITY

  • POD LINKS: Morimoto 2Banger
  • END MOUNTING FEET: Universal
  • MIDDLE SUPPORT LEG: Universal

TECH SPECS

  • CENTRAL LINKS: Machined 6061 AL Extrusion
  • END MOUNTING FEET: Machined AL Stamped Steel
  • CENTER SUPPORT LEG: Stamped Steel
  • FINISH TECHNIQUE: Anodized and Powder Coated
  • HARDWARE: 304 and 316 Stainless
  • HARDWARE: 316 Stainless Screws
  • RADIUS RANGE:+/- 9 Degrees
  • VERTICAL AIMING RANGE:+/- 45 Degrees

Application List

Universal - Check Specification Before Ordering

Details

  • BAF090
  • BAF090
  • 840203394793
  • Morimoto
  • Lighting
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 0.3 lbs.
  • W2.0000” x H3.0000” x L3.0000”
