Rough Country 6 Inch 4 Link Suspension Lift Kit (2017-2022 F250, F350 4WD | Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel Engine

526C
Pricing: $2,165.95

Customize Your Item

- Factory Rear Overloads -
 * required
- Axle Diameter -
 * required
- Select Shock Configuration -
 * required
- Includes Front Driveshaft -
 * required
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country’s 4-Link F-250 Lift Kit.

This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country’s durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.

This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country’s Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country’s Lifetime Replacement Warranty

FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

NOTES - IMPORTANT
Models equipped with a 10-speed transmission must remove dial pin.
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases
Does NOT fit dually models.
New fabricated lift block replaces the factory equipped lift block.
Does NOT work on models equipped with Tremor Factory Trim Package

SPECS
Est. Install Time 6-10 hours

Application List

2017-2022 4WD Ford F-250 Super Duty
2017-2022 4WD Ford F-350 Super Duty

* Does NOT fit gas engine models
* Does NOT fit dually models

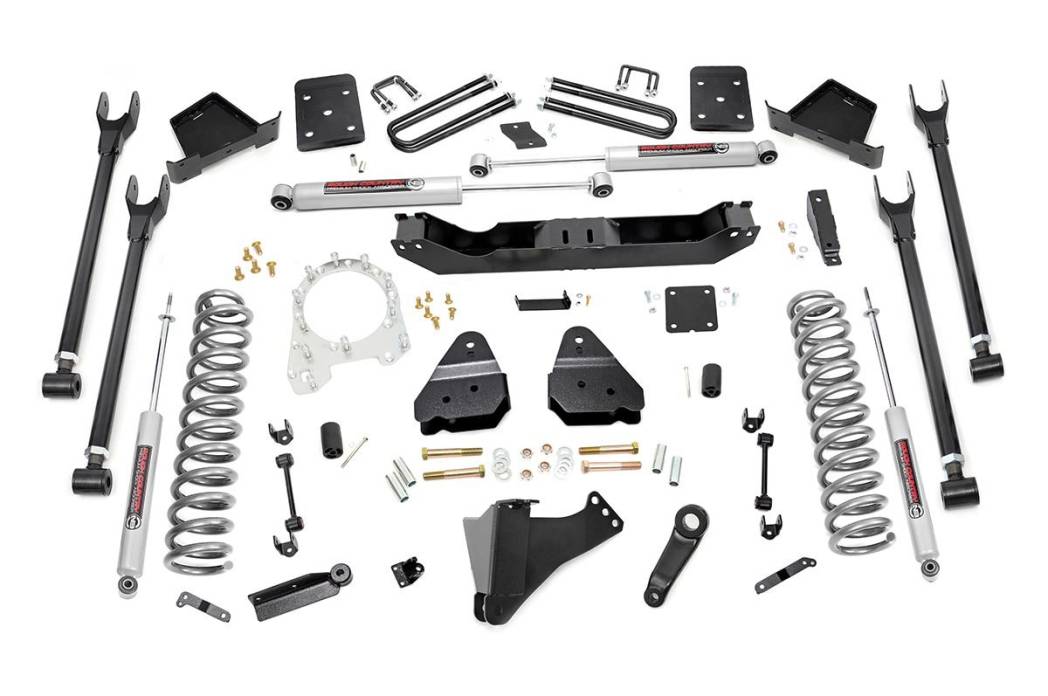

Components

FRONT
Lifted coil springs
Fixed upper control arms
Clocking ring kit
Adjustable lower control arms
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated anti-wrap lift blocks
Carrier bearing drop bracket
Brake line brackets
U-bolts
Hardware

SHOCK OPTIONS
(4) Premium N3 series
(4) M1 Monotube
(4) V2 Monotube
(4) Vertex Reservoir

Shock Options

OPTIONAL PREMIUM N3 SHOCKS
10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Metallic Silver Paint
Silver powder coat finish
3-year Manufacturer's Warranty

OPTIONAL M1 MONOTUBE SHOCKS
2-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS
8-Stage Adjustable Damping
Monotube Design
Nitrogen-charged
Massive 2.5in Piston
22mm Chrome-Hardened Piston Rod
3-Stage Seal System
Heat-Treated, Alloy Bearing
Honed Steel Body
3-year Manufacturer's Warranty

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
