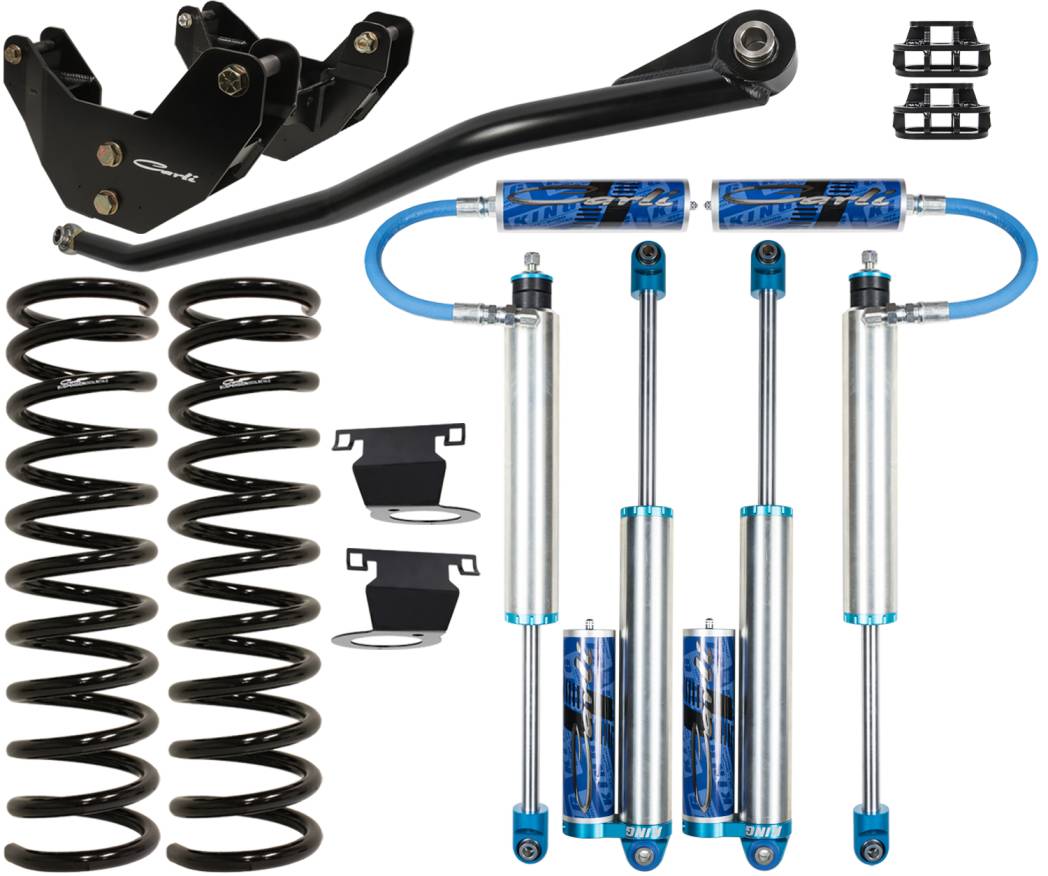

CS-DPT25-1319-D | Carli Suspension 3.25" Pintop System For Dodge Ram 3500 4WD | 2013-2023 | Diesel

Our most popular system, the Pintop kit boasts 2.5″, Remote Reservoir King Shocks. Designed and tuned in-house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride with more control and bottom-out resistance than the Backcountry.

Front Lift: 3.25″ – 3.5″ / Rear Lift: 2"-3" / Front Travel: 9.3" / Rear Travel: 13" / Shock Diameter: 2.5" / Tire Fitment: 37" X 12.5"

This system is NOT compatible with trucks equipped with the factory auto-leveling air assist.

Customization Information

 Sway Bar Options

RAM 2500/3500 4X4 TORSION SWAY BAR - 3" LIFT

SKU: CS-DTSB3-1419
- Easily the best "bang for the buck" upgrade for ride quality
- Allows front suspension to move freely without giving up control
- Requires removal of electronic sway bar on Power Wagons
- Compatible with 0"-4" Front Lift
- Torsion Bar may be Black or Silver Zinc; depends on supply-chain availability. NOT requestable.

RAM 2500/3500 4X4 STOCK SWAY BAR DROP BRACKET - 3.25" LIFT

SKU: CS-DSBD-14
- In-house machined billet aluminum
- Hard-Anodized for corrosion resistance
- Correct factory sway bar geometry on 3" Lift
- Fitment: 2014+ Ram 2500, 4×4
- Fitment: 2013+ Ram 3500, 4×4

Rear Leaf Options

*OPTIONAL*

RAM 3500 4X4 PROGRESSIVE ADD-A-PACK KIT - 2" LIFT

SKU: CS-DPAP3-19-4.25
- Add-A-Pack Replaces lower overload spring
- More predictability and Spring Progression Keeps Tires Planted
- 1" Block included to match our 3" Suspension Systems
- 2"-2.5" Total lift with Add-a-Pack and Block Combination
- Includes U-Bolts and Center Pins
- Fitment: 2019+ Ram 3500 4x4, With 4.25" Axle Tube
- Will NOT fit 2019+ 3500 with Factory Air-Assist

RAM 3500 4X4 DIESEL FULL PROGRESSIVE LEAF SPRING KIT - 2" LIFT

SKU: CS-DFSP-19-425
- 2" rear lift maintains slight rear-hight stance with Carli 3" Systems
- Softens initial spring rate at ride height
- Minimizes axle wrap/wheel hop
- Reduces payload to "light" 3/4-ton capacity
- Capable of 15" of suspension travel with factory shackle
- Fitment: Ram 2019+ 3500 4x4, Diesel with 4.25" Axle Tube
- Will NOT fit trucks that have factory air-assist

RAM 3500 4X4 DIESEL XHD +2000LBS LEAF SPRING KIT - 1" LIFT

SKU: CS-DFSP-19-425-XHD
The XHD Full Replacement Leaf Springs designed for those with constant 2,000lbs in the bed. Designed for the pop-up campers like the Four Wheel Campers Hawk. Although, it will work with ANY 2,000lb. constant load. This is NOT a leaf spring pack designed to run unloaded, it requires the 2,000lbs load to sit at the intended height and properly function. Being a far heavier spring rate than our standard leaf spring AND designed to operate with a much higher center of gravity, we recommend 2.5″ Remote Reservoir Shocks & custom shock tuning for optimal control and ride quality.

- Fitment: Ram 2019+ 3500 4x4, Diesel with 4.25" Axle Tube
- Will NOT fit trucks that have factory air-assist

RAM 3500 4X4 DIESEL XXHD +3500LBS LEAF SPRING KIT - 1" LIFT

SKU: CS-DFSP-19-425-XXHD
The XXHD Full Replacement Leaf Springs designed for those with constant 3,500lbs in the bed – designed for CAB-OVER campers; although, they will work with ANY 3,5000lb. constant load. This is NOT a leaf spring pack designed to run unloaded, it requires the 3,500lbs load to sit at the intended height and properly function. Being a far heavier spring rate than our standard leaf spring AND designed to operate with a much higher center of gravity, we recommend 2.5″ Remote Reservoir Shocks & custom shock tuning for optimal control and ride quality. We do not have this tuning profile for the 2.5" Pintop but we DO have a custom tuning profile to match these springs to the Dominator System.

- Fitment: Ram 2019+ 3500 4x4, Diesel with 4.25" Axle Tube
- Will NOT fit trucks that have factory air-assist

Leaf Spring Shackle

*OPTIONAL* - Much of the jarring ride of the 3500 rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

SKU: CS-DSHACKLE-13
- Greasable and Rebuildable
- Far Better Ride than Factory Shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs

Long Travel Airbags

*OPTIONAL*

SKU: CS-DLTB-19-4.25
- Supports up to 12 inches of travel
- Compatible with 1"-2" Rear Lift
- Restore Factory Payload to Full Progressive Springs
- Includes 1/4" Airline, Fittings and Schrader Valves
- Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi
- Fitment: 2019+ Ram 3500 4x4 with 4.25" Axle Tube

Low Mount Steering Stabilizer

*OPTIONAL* - Bolt in steering stabilizer (factory location). Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

SKU: CS-DLMSS-14
- Direct bolt-in replacement
- Corrects left tire pull, adjustable
- Inside the Carli Stainless Stabilizer

High Mount Steering Stabilizer

*OPTIONAL* - Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. ** Note: Original 14-18 Drag Links will have 2 jam-nuts and large adjustment collar - order DHMSS-14 stabilizer. If the truck has been updated to the 19+ drag link, order the DHMSS-19.

SKU: CS-DHMSS-19
- Simple, Bolt-in Installation
- Corrects right tire pull, adjustable
- Combines with Low-Mount for opposing stabilization
- Inside the Carli Stainless Stabilizer

Fabricated Radius Arms

*OPTIONAL*

SKU: CS-DFRA-14
- Massive Strength Upgrade vs. Stock Arm
- Improved ride quality and control
- Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
- 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
- Requires Radius Arm Drop Brackets with Carli 3" Front Lift

Front Differential Guard

*OPTIONAL* - Better to have it and not need it than need it and not have it.

SKU: CS-DFDG-14
- Protection for your Ring-Gear
- Bolts On In Minutes
- 1/4" Wall Cold-Rolled Steel Construction
- Grade 8 Hardware
- Power Wagons may require modification to the Diff Guard or Lower Diff Housing.

Lifetime Ball Joints

*OPTIONAL* - Do your ball joints once, grease every oil change and forget they exist...

SKU: CS-DBJP-14
- Set of Upper and Lower Ball Joints
- LIFETIME Advanced-Replacement Warranty
- Copper Plated, Carburized and Dry-Lubed
- Includes a tube of Redline CV2 Grease
