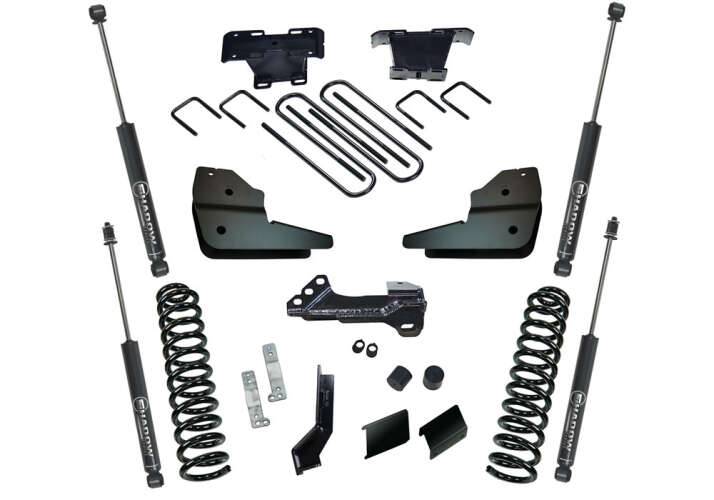

This 4” Lift for the 2023 Ford Super Duty F-250 and F-350 4WD is achieved via engine specific coil springs to ensure the proper lift height and maintain factory ride quality.
Radius Arm lowering brackets are used to restore proper caster angle/alignment.
Other Components included with the 4” system is:
front compression travel-stop relocation brackets, track bar relocation bracket, and a steering stabilizer bracket.
The rear lift is achieved with an HD fabricated rear block that allows the removal of the stock block. This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap.
Shocks for this kit are: Superlift Shocks
Features:
Replacement Front coil springs improve ride quality while rear blocks maintain load capacity.
Radius Arm drops maintain proper caster.
Track bar relocation bracket prevents stud bind and steering wheel kick.
Front and Rear – Superlift Shocks
Benefits:
Retains OEM caster and camber alignment specifications.
Maintains ride quality and handling characteristics.
Designed using Original Equipment (OE) CAD data for accuracy.
Installation
Installation time: 6 hours
Difficulty level: 3 of 5
Notes:
If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649

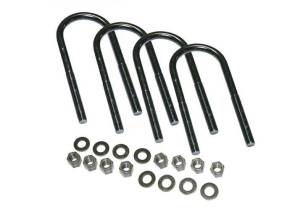

If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11724
Does NOT fit models equipped with Auto Leveling Headlight Function
2023 Ford F250 Super Duty 4WD
2023 Ford F350 Super Duty 4WD
Diesel Models ONLY
