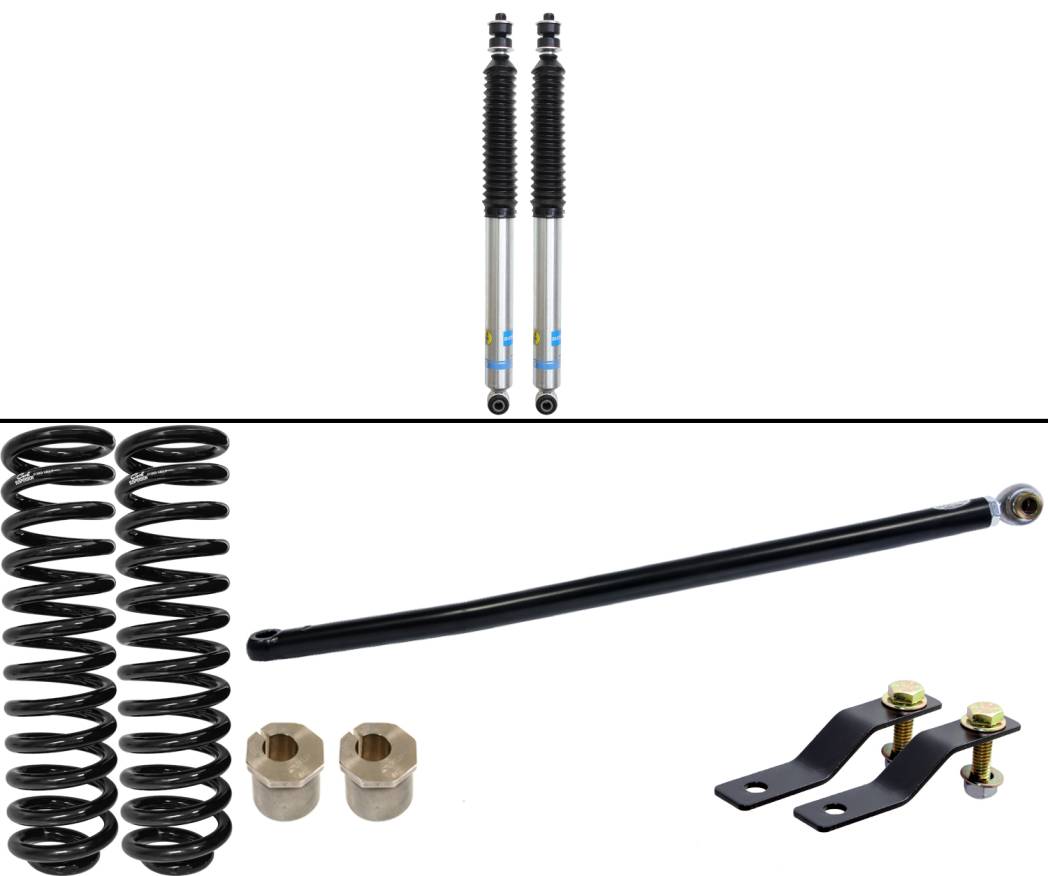

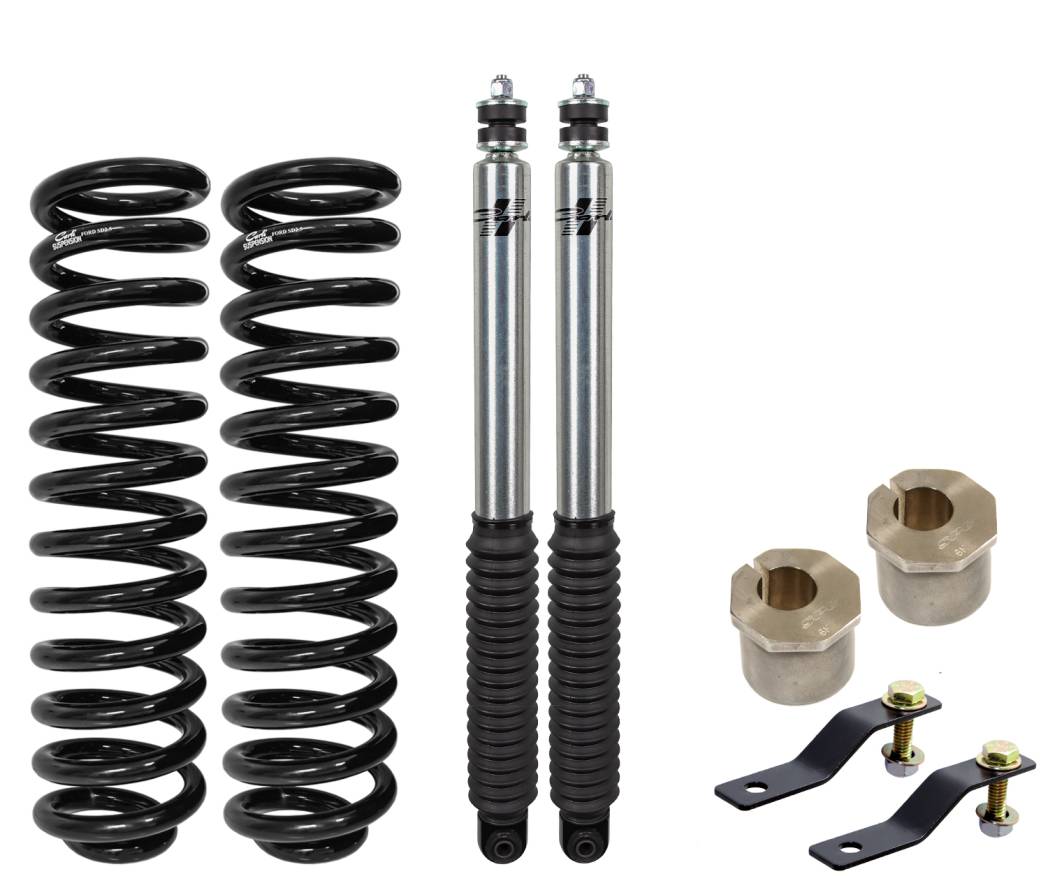

CS-FLVL-SIG-05 | Carli Suspension 2.5" Lift Leveling System With Carli Signature Series Front Shocks For Ford F-250/F-350 | 2005-2016

Level the front of your truck with a system that delivers 50% more front suspension travel than the stock Super Duty. Shot peened, pre-set and powder coated coil springs paired with extended travel shocks backed by a lifetime warranty increase control and comfort while an adjustable track bar, caster shims, and brake line tabs correct the front geometry – all without breaking the bank.

Front Lift: 2.5″ / Front Travel: 9″ / Rear Lift: 2.5″ / Rear Travel: Stock / Shock Diameter: 2.0″ / Tire Fitment: 35″ x 12.5″

The Leveling System was designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift. The IFP Bilstein 5100 shocks build quality is unmatched for their price point offer a nice boost in ride quality and carry a lifetime warranty through Bilstein.

Your truck will sit 2.5” higher in the front with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. Front Bilstein 5100 shocks increase the suspension control while the brake line tabs ensure you can make the most of your newfound suspension down-travel. The axle is recentered thanks to the included Adjustable Track Bar and the Caster Shims round off the off the front end geometry while improving on the stock handling.

As this system does not include anything for the rear, factory towing and payload capacity are maintained. This is an entry level system that only requires an upgrade to one of our many signature tuned shock packages and an Add-a-Pack or full progressive leaf spring pack to be converted to one of the higher-end systems.

The Leveling System will level the front of the truck to the rear on Super Duties equipped with the factory, 3-5/8” rear block. Super Duties equipped with a 2″ tall block from the factory will require the factory 3-5/8″ tall Block to achieve a leveled stance. Part Number: 7C3Z-5598-HB, 7C3Z-5598-JB

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Customiziation Information

Radius Arm Option

*OPTIONAL*

05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 2.5"/3.5" LIFT

SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling

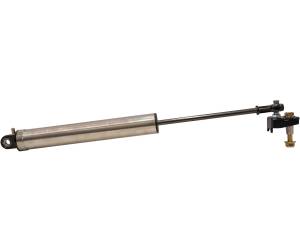

High Mount Steering Stabilizer

*OPTIONAL*

08-16 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT

SKU: CS-FHMSS-08
- Inside the Carli Stainless Stabilizer
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2008-2016 F250/350 4x4
- Works on levelled and lifted trucks ONLY
- WILL NOT work with Dropped Pitman Arms

Low Mount Steering Stabilizer

*OPTIONAL*

05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems
