CS-FLVL-SIG-17-GAS | Carli Suspension 2.5-3.0" Lift Leveling System With Carli Signature Series Front Shocks For Ford F-250/F-350 | 2017-2023

Level the front of your truck with this custom-tuned, ultra-refined system that delivers 50% more front suspension travel than the stock Super Duty.

Front Lift: 2.5″ / Front Travel: 9.6″ / Rear Lift: 0-2″ / Rear Travel: 13" / Shock Diameter: 2.0″ / Tire Fitment: 35″ x 12.5″

A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar Option to form a complete system.

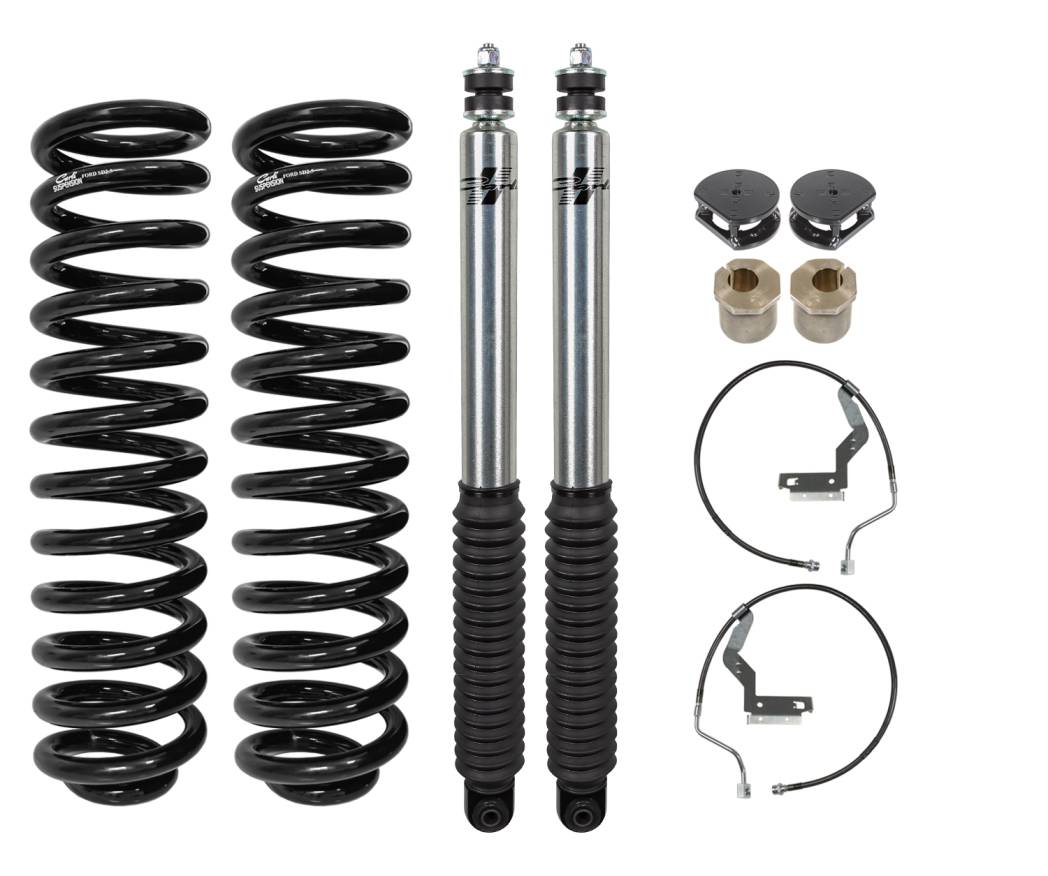

The Leveling System was designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift. The included, front, Carli Signature Series Shocks are longer to accommodate the extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance and quality bushings were a must; finished off with boots to protect the shafts, we back them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.

The truck will sit 2.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. Extended, Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering. We recommend adding an Adjustable Track Bar to center the front axle; for those that do not wish to, we include our High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop given the slight driver’s side shift of a leveled Super Duty without a track bar. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links – a FAR more robust option. The replacement End Links are the only option compatible with a plow bracket.

The front will sit level to the rear and payload is maintained as the rear springs are unaltered in this system.

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Customization Information

Sway Bar Option

*REQUIRED*

The Commuter System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

17-23 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT

SKU: CS-FSBD-LVL-1723
- Corrects Sway Bar Geometry in Carli Leveling Suspensions
- Fitment: 2017-23 F250/350 4x4

17-23 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 2.5"/3.5" LIFT

SKU: CS-FEL-LVL-17
- Extended Length to accommodate Leveled Trucks
- 17-4 Stainless Steel, Greasable and Fully Rebuildable
- Excellent Articulation
- Only Works on Carli Leveling Lifts
- Fitment: 2017-23 F250/F350 4x4

17-23 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS

SKU: CS-FTSB-LVL-17
- Direct Fitment to Carli Leveling Lifts
- Replaces Immobile Factory Sway Bar with Custom Torsion Bar
- Huge Ride Quality Improvement
- Includes CS-FEL-LVL-17 Drop Brackets and Sway Bar Links
- Fitment: 2017-23 F250/F350 4x4

Matching Rear Shocks

*OPTIONAL*

Tuned to the factory leaf springs, these rear shocks balance the rear-feel to match the custom tune in your newly leveled Super Duty.

05-16 FORD F250/350 4X4 CARLI SIG SERIES 2.0" IFP 2.5" LIFT REAR SHOCK PKG

SKU: CS-FSIG20SPKG-REAR-LVL-05
- 2.0" Carli Signature Series Shocks, Rear Pair
- Carli Custom Tuned
- Clear Coated Bodies for Corrosion Resistance
- Boots Included for Shaft Protection
- 12" Rear Wheel Travel
- Fitment: 2005-23 F250/350 4x4 with 0-2" Rear Lift

Adjustable Track Bar

*OPTIONAL*

Centers the axle at the new ride height utilizing a stronger suspension/steering link to prevent death-wobble and improve overall tracking and steering feel.

17-23 FORD F250/350 4X4 ADJUSTABLE TRACK BAR 2.5"/3.5" & 4.5"/5.5" LIFT

SKU: CS-FATB-17
- Massive Steering Upgrade
- Vibration Damping CUB Joint
- Fully Rebuildable
- 2017-19 Configurable to Carli 2.5"-4.5" Lifts
- 2020-23 Configurable to Carli 3.5"-5.5" Lifts
- NOT for use on stock-height Trucks.

Rear Leaf Spring Options

*OPTIONAL*

The Leveling System does not require a rear spring option; see the description at the bottom of this page for more information.

17-23 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT

SKU: CS-FPAP-LVL-17
- Built in the U.S.A. By Deaver Leaf Spring
- Smooth, Progressive Design
- Supplied with Bump Stop Drops, U-bolts and hardware
- Pairs to Carli Leveling Lifts, provides 1/2"-1" high rear stance
- Eliminates the Factory Block
- Load capacity is maintained, ride quality is improved

Leaf Spring Shackle

*Optional*

Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

05-23 FORD F350/350 4X4 FABRICATED LEAF SPRING SHACKLE

SKU: CS-FSHACKLE-11
- Greasable and Rebuildable
- Far Better Ride than Factory Shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs

High Mount Steering Stabilizer

*OPTIONAL*

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

17-23 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT

SKU: CS-FHMSS-17
- Long Lasting Performance and Appearance
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2017-23 F250/350 4x4
- Works on leveled and lifted trucks ONLY

Low Mount Steering Stabilizer

*OPTIONAL*

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems

Adjustable Radius Arms

*OPTIONAL*

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 2.5"/3.5" LIFT

SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling

Trophy Hitch

*OPTIONAL*

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

17-23 FORD F250/350 4X4 FORD TROPHY HITCH

SKU: CS-FHITCH-1723
- Direct Bolt in, Rated to 16,000lbs., 3" Hitch Receiver
- 3/16" and 1/4" Cold-Rolled American Steel
- Utilizes Factory Winch + 3-way Tie-Down to Secure Spare
- 38" Spare Tire in the Factory Location
- May Require Exhaust Modification
- Requires 5/8" x 4" (usable shank) Hitch Pin
