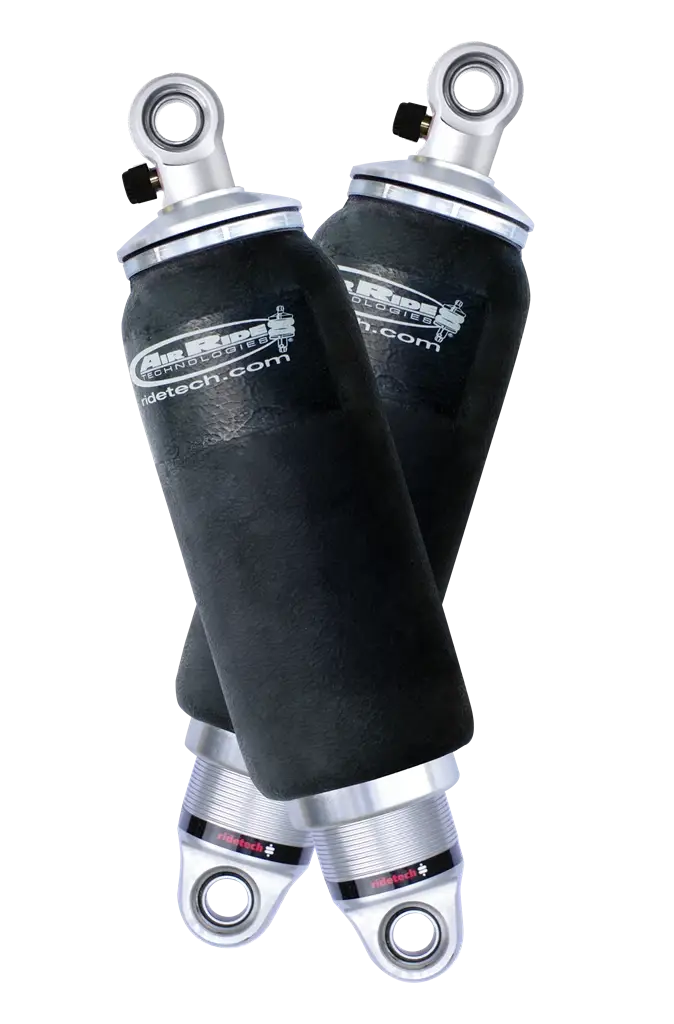

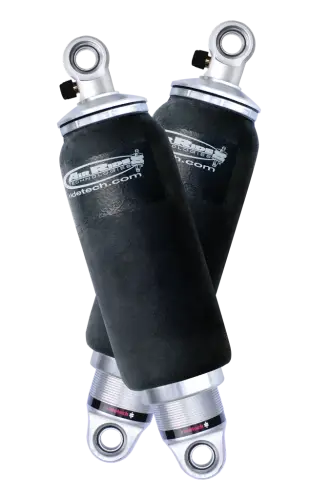

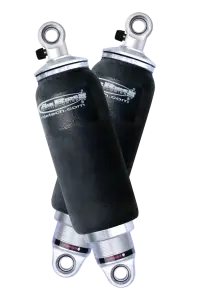

RT21170801 | RideTech Rear HQ Shockwaves (8000 Series with 6.9" stroke and 1.7" eye)

Universal ShockWave 8000 Series-Pair

The 7000 and 8000 series ShockWave, with a smaller diameter and longer stroke, will have a less load capacity and a softer spring rate that is appropriate for the rear of most vehicles with a solid rear axle. The spring rate and load capacity is influenced by the profile of the lower piston. A straight piston will offer a very linear, or constant spring rate, throughout its travel. A tapered lower piston will result in a more progressive spring rate, much like the double convoluted airspring.

Shock Length 6.9 Inch Stroke
Mounting Style Eye/Eye

The 8000 ShockWave Series

Although your specific vehicle may not be listed, we have a variety of ShockWaves that are designed to work with just about whatever setup you’re using. Whether you’re replacing your current CoilOvers, or starting a fresh build we can suit your air suspension needs.

Recommended Applications:
Solid rear axle: Rear axle weight is less than 2,000lbs.
NOT recommended for IFS installations … not enough load capacity

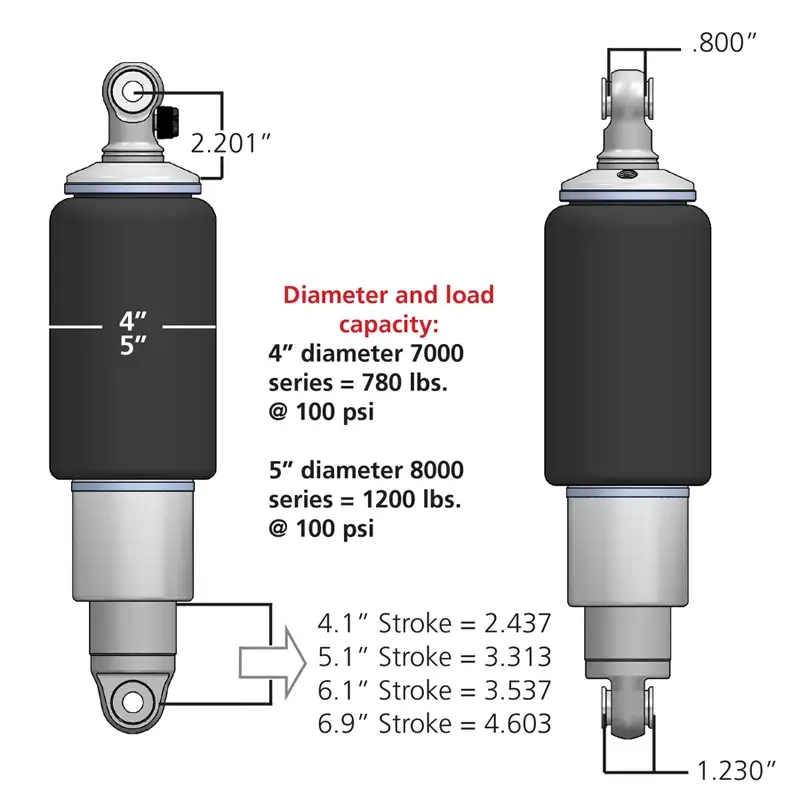

Diameter and load capacity: 5″ diameter 8000 series = 1,200 lbs. @ 100 psi

Handling Quality Series

The Handling Quality (“HQ”) Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.

Features:

• Completely redesigned internal design
• Aluminum construction
• Single adjustable shock valving
• Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
• Impact forged body / mono-tube design for superior ride quality and durability
• Easy & precise valve adjustment with 24 rebound clicks
