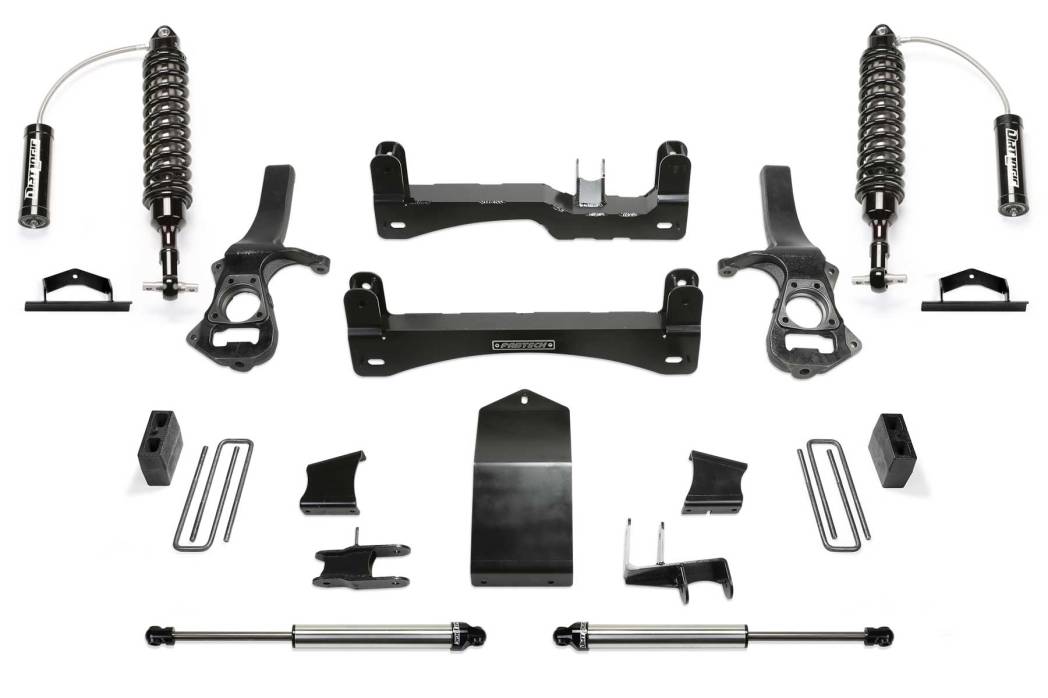

FTSK1174DL | Fabtech 4 Inch Performance System With Dirt Logic 2.5 Resi (2019-2023 Silverado 1500 Trail Boss, Sierra 1500 AT4 Diesel)

2019-2023 Chevorlet Silverado 1500 Trail Boss Diesel | 2019-2023 GMC Sierra 1500 AT4 Diesel

K1174DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $6,049.17
Qty:

Description

2019-23 CHEVY SILVERADO 1500 TRAIL BOSS | GMC SIERRA 1500 AT4 4WD [DIESEL ONLY]

The Chevy Trail Boss and GMC AT4 both have a factory 2" lift compared to other GM 1500 trucks of the same year model. Fabtech’s suspension system for these two trucks provide a 4" lift height on top of the factory 2" lift for clearance of 35" tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4" system, the truck will sit at the same height as a 1500 with a 6" suspension and 35" tires.

The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots.

Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed.

The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride.

Rear lift is accomplished by removing the factory 2" block and replacing it with a 5" block and u-bolt system.

Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.

FEATURES

  • CROSSMEMBERS 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.
  • STEERING KNUCKLES Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
  • TIE RODS Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
  • DIRT LOGIC 2.5 COILOVERS Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
  • SKID PLATE A heavy duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.
  • DIFFERENTIAL MOUNTS Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
  • SWAY BAR MOUNTS 1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
  • REAR BUMP STOP SPACERS Billet spacers relocate the factory closed cell bump stops to control the travel eliminating over cycling of the suspension.
  • REAR LIFT BLOCKS 5" tall steel rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity.
  • REAR U-BOLTS U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
  • REAR DIRT LOGIC 2.25 SHOCKS The stainless steel body with NitroSteel® piston rod provides maximum corrosion resistance and durability. High quality componentry deliver a superior ride quality both on and offroad. Excellent damping for offroad use.

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21250 COMPONENT BOX 1
1 FTS21251 COMPONENT BOX 2
1 FTS21285 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS811462 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

114. Can not use OEM wheel and tire.
79. Fits crew cab, short bed models only.
167. Fits diesel models only.
197. Will not fit models equipped with adaptive ride control.
202. Does not fit 2019 Chevy Silverado LD or GMC Sierra Limited 1500 models. Use 2018 model applications for these models.
262. Will not fit vehicles equipped with Super Cruise.

Application List

2019-2023 Chevorlet Silverado 1500 Trail Boss Diesel
2019-2023 GMC Sierra 1500 AT4 Diesel

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 295.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
