2008-16 FORD F350 4WD

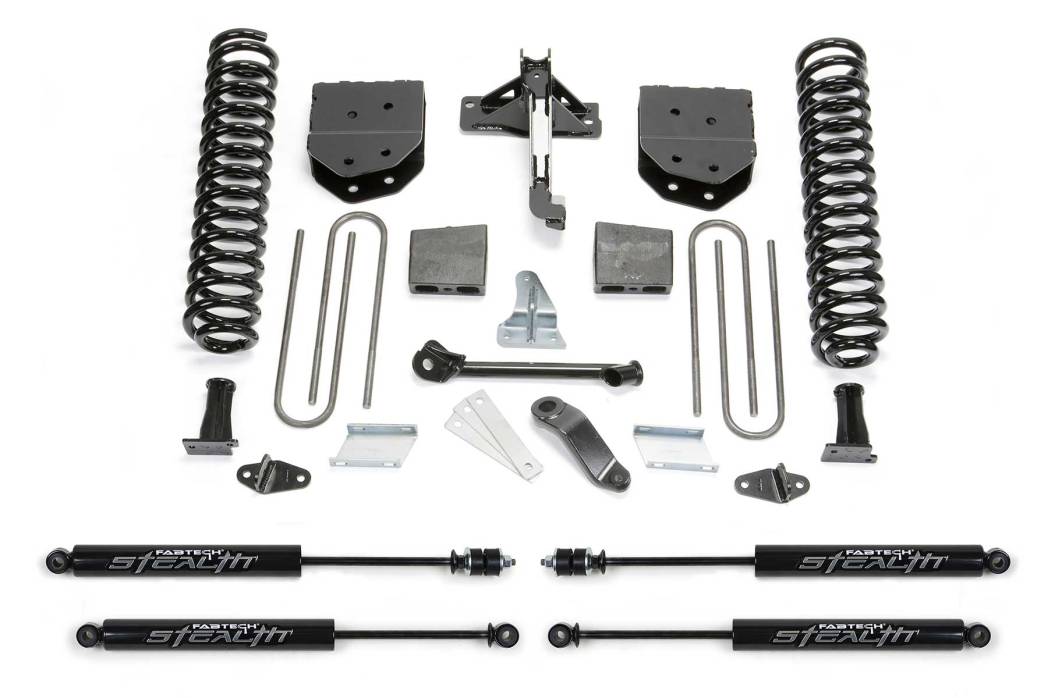

FTSK2130M | Fabtech 6 Inch Basic System With Stealth Shocks (2008-2016 F350, F450 Super Duty 4WD 8 Lug)
2008-2016 Ford F350 Super Duty 4WD | 2011-2016 Ford F450 Super Duty 4WD 8 Lug
K2130M
Pricing:
$2,259.19
Description
2008-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]
This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and a Block & U-bolt kit in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.
FEATURES
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22024BK | COIL BOX KIT |
1 | FTS22138 | COMPONENT BOX |
1 | FTS22103 | REAR BLOCK KIT |
2 | FTS6188 | FRONT STEALTH SHOCKS |
2 | FTS6063 | REAR STEALTH SHOCKS |
FOOTNOTES
3. Non dually models only.
27.Front diveshaft modification may be required to clear exhaust on gas motors.
Application List
2008-2016 Ford F350 Super Duty 4WD
2008-2013 Ford F450 Super Duty 4WD 8 Lug
2008-2013 Ford F450 Super Duty 4WD 8 Lug
Tires & Wheels
Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K2130M
- K2130M
- 674866092327
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 219.9 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
