FTSK2193M | Fabtech 4 Inch Basic System With Rear Stealth Shocks (2015-2020 F150 Pickup 4WD)

2015-2020 Ford F150 Pickup 4wd

K2193M
Pricing: $2,791.05
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2015-20 FORD F150 4WD

Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 33” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.

The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtech’s Stealth rear shocks.

The 4” System allows use of 33” tires and is ESC (Electronic Stability Control) and Traction Control compliant.

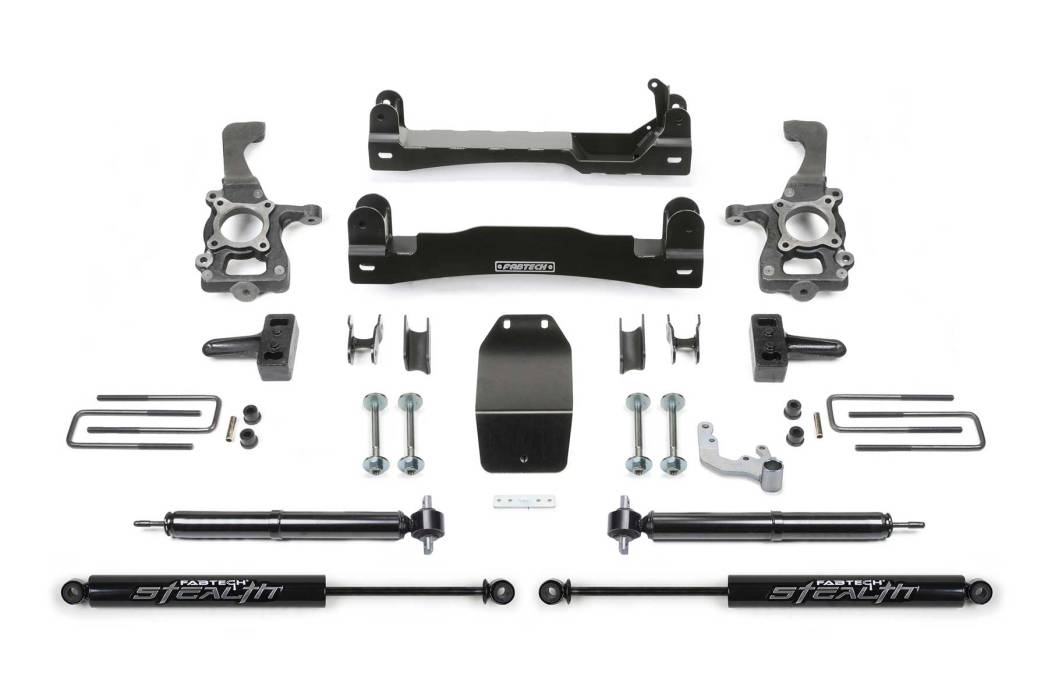

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Front Coilover Spacers
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22176 COMPONENT BOX 1
1 FTS22177 COMPONENT BOX 2
2 FTS6063 REAR STEALTH SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
171. Will not fit diesel models.

Application List

2015-2020 Ford F150 Pickup 4wd

Tires & Wheels

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 234.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
