FTSK2194 | Fabtech 6 Inch Basic System With Performance Shocks (2015-2020 F150 Pickup 4WD)

2015-2020 Ford F150 Pickup 4wd

K2194
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $2,886.03
Qty:

Description

2015-20 FORD F150 4WD

These 6″ systems include heavy duty 1/4″ thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. This is an important construction feature to properly handle large tires on and offroad. Fabtech’s extended length ductile iron steering knuckles allow use of 18″, 20″ or 22″ wheels.

The Basic System includes front spacers utilizing the factory Coilover shocks to retain the stock ride while the rear receives Fabtech Performance twin tube shocks.

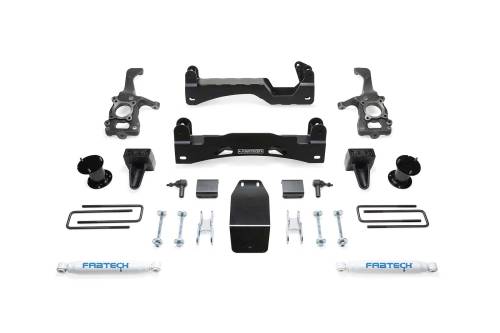

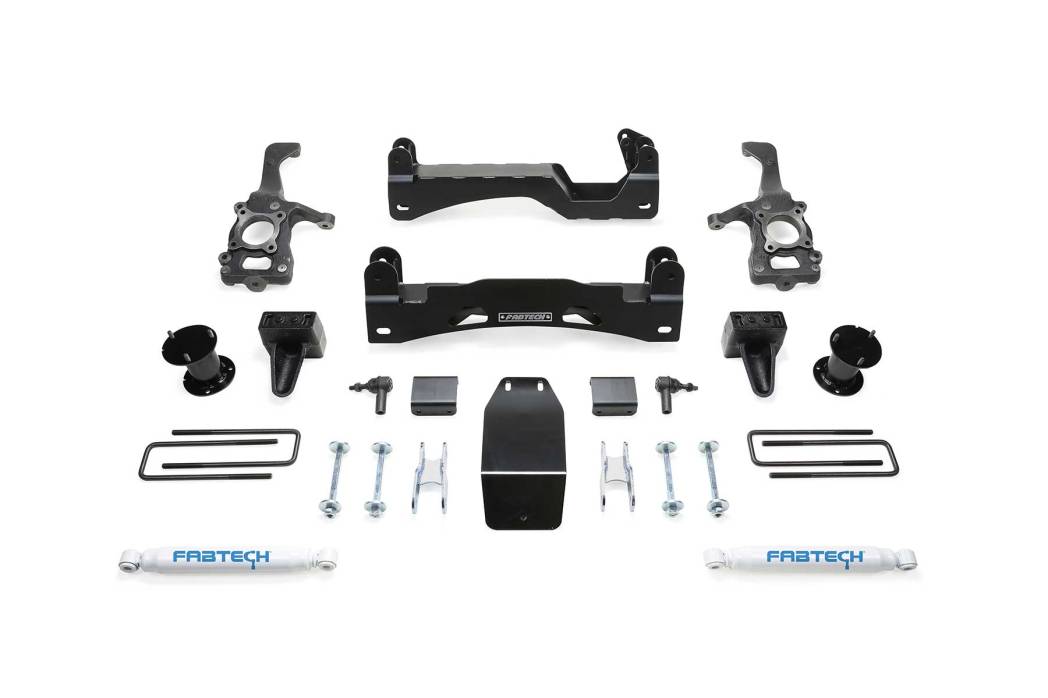

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Front Coilover Spacers
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22179 COMPONENT BOX 1
1 FTS22180 COMPONENT BOX 2
2 FTS7266 REAR PERFORMANCE SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
17. Does not fit standard cab models.
123. Will not fit Raptor models.

Application List

2015-2020 Ford F150 Pickup 4wd

Tires & Wheels

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 260.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
