FTSK2213M | Fabtech 4 Inch Budget System With Stealth Shocks (2017-2022 F250, F350 Super Duty 4WD)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD

K2213M
Pricing: $1,666.32
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2017-22 FORD F250/F350 4WD

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4” Budget System.

The 4” Budget System utilizes the factory front coil springs with a steel upper spacer providing 4” of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.

System allows installation of 35” tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

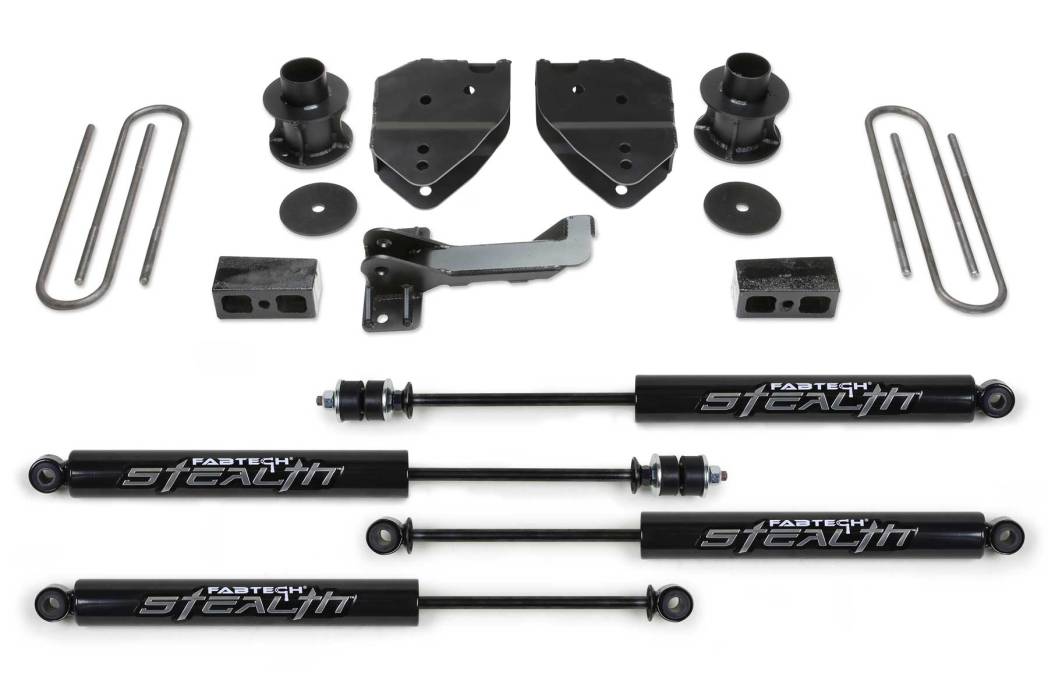

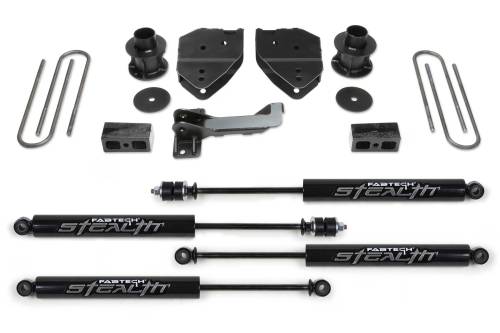

FEATURES

  • Front Coil Spring Spacers
  • Trac Bar Relocation Bracket
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22212 COMPONENT BOX
2 FTS6236 FRONT STEALTH SHOCK
2 FTS6063 REAR STEALTH SHOCK

FOOTNOTES

3. Non dually models only.

213. Does not fit vehicles equipped with Tremor off-road package.

Application List

2017-2022 Ford F250 Super Duty 4WD
2017-2022 Ford F350 Super Duty 4WD

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 134.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
