FTSK2257M | Fabtech 6 Inch 4 Link System With Coils and Stealth Shocks (2017-2021 F250, F350 Super Duty 4WD Gas)
2017-2021 Ford F250 Super Duty 4WD | 2017-2021 Ford F350 Super Duty 4WD | Gas
Description
6″ 4 LINK SYSTEM W/ STEALTH SHOCKS – K2257M
2017-21 FORD F250/F350 4WD [GAS]
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.
FEATURES
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit

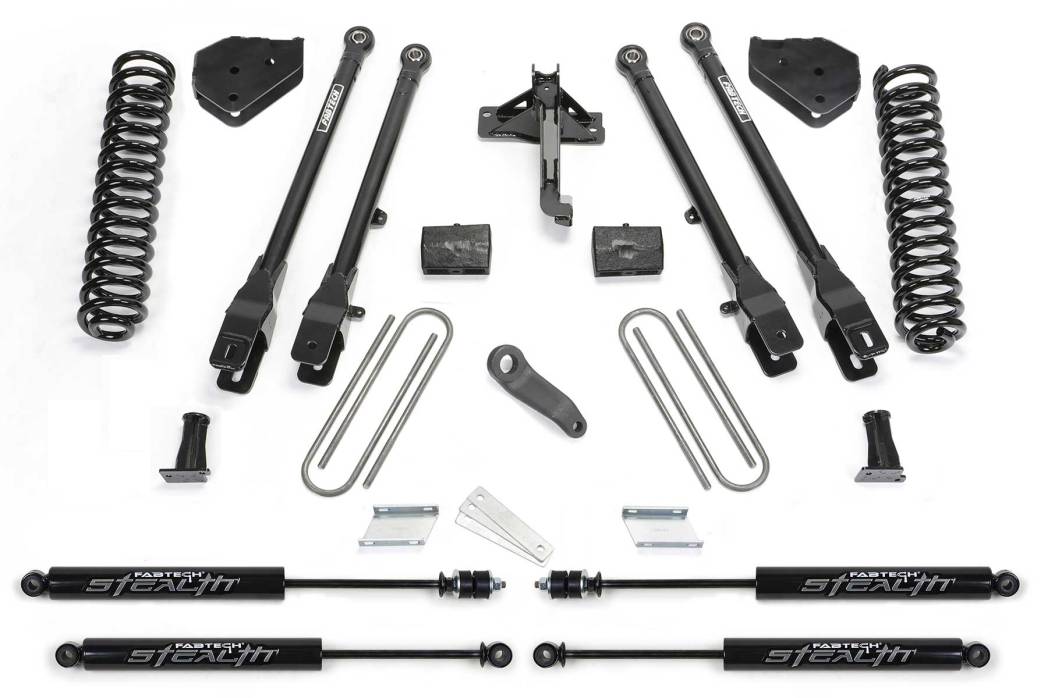

PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS22250 | COIL BOX KIT |
| 1 | FTS22221 | COMPONENT BOX 1 |
| 1 | FTS22222 | COMPONENT BOX 2 |
| 1 | FTS22219 | REAR BLOCK KIT |
| 2 | FTS6188 | FRONT STEALTH SHOCKS |
| 2 | FTS6063 | REAR STEALTH SHOCKS |
FOOTNOTES
3. Non dually models only.
163. Vehicles equipped with 2 piece driveshaft require FTS419.
171. Will not fit diesel motors.
173. Front driveshaft modification is required or order replacement driveshaft (FTS92036).
175. Vehicles w/ factory rear sway bar must order extended sway bar link kit part number FTS22276.
Application List
2017-2021 Ford F350 Super Duty 4WD Gas
Tires & Wheels
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K2257M
- K2257M
- 674866104983
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 295.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
