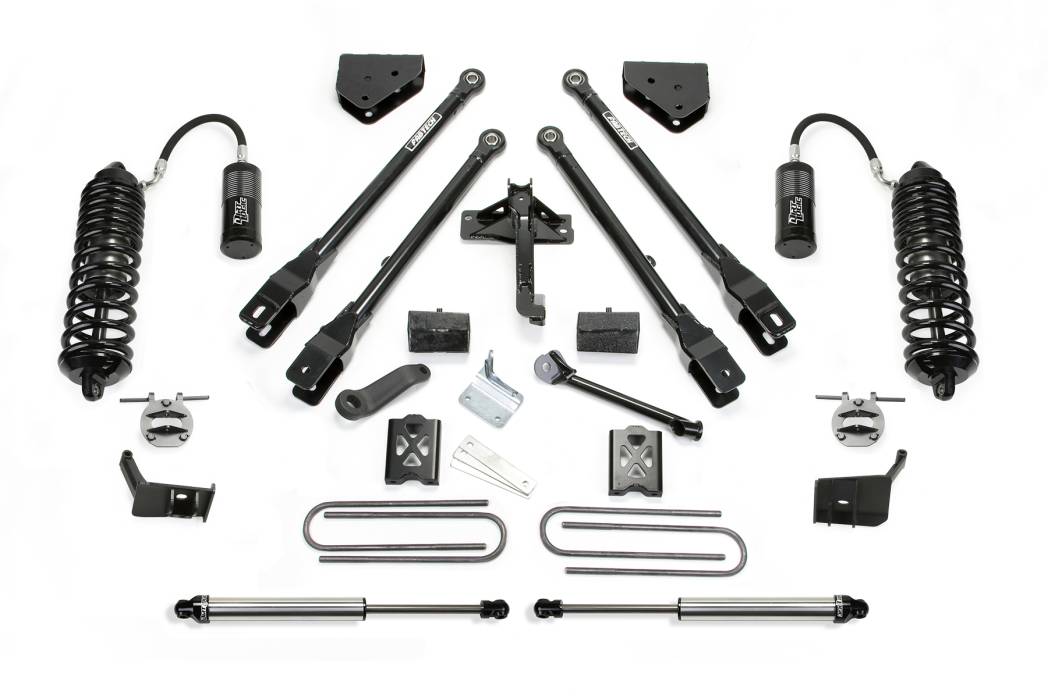

FTSK2271DL | Fabtech 6 Inch 4 Link System With 4.0 R/R and 2.25 (2011-2016 F250 Super Duty 4WD)

2011-2016 Ford F250 Super Duty 4WD

K2271DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $8,500.04
Qty:

Description

6″ 4 LINK SYSTEM W/FRONT DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K2271DL

2011-16 FORD F250 4WD

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Resi Coilover conversion. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a Block & U-bolt kit.

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Front Dirt Logic 4.0 Resi Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22140 COMPONENT BOX 1
1 FTS22080BK COMPONENT BOX 2
1 FTS22101 REAR BLOCK KIT
1 FTS835234D FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)
1 FTS835234P FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2011-2016 Ford F250 Super Duty 4WD

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 381.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
