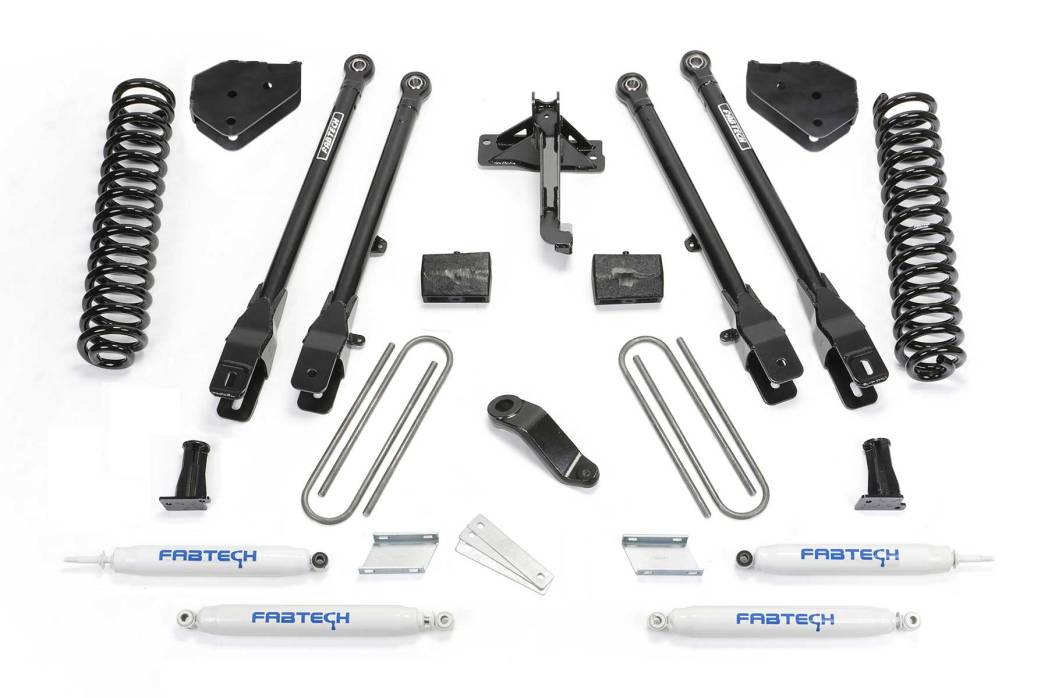

LINK ARMS & BRACKETS

2" OD Heavy wall link arms have 1/4" thick steel brackets at the axle with adjustable alignment cams and Fabtech’s legendary 5 Ton joints® to pivot at the frame for an extended service life. The 5 Ton joints® have been proven in military use for over 10 years and are quiet and strong. The 4 Link Arms attach to stout 1/4" thick steel frame brackets for a solid mounting of the new suspension.

The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension.

COIL SPRINGS

coil springs have been designed for a very compliant ride quality both on and offroad. Each coil is preset during the manufacturing process to insure no ride height settling over time. Allows for a 2" increase in wheel travel over stock when used with Fabtech shock absorbers.

TRACK BAR BRACKET

1/4" thick steel bracketry rep-ositions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle.

DROPPED PITMAN ARM

Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the F450 and F550 to work in conjunction with the factory drag link and Fabtech’s Track Bar bracket for proper steering functionality.

FRONT & REAR BUMP STOP BRACKETS

Heavy duty 1/4" thick steel brackets control the travel eliminating over cycling of the suspension. Super strong construction can handle the full compression impact of the F450 or F550.

SWAY BAR BRACKETS

1/4″ thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

BRAKE LINE BRACKETS

Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.

STEERING STABILIZER BRACKETS

Retains the factory F450 or F550 long travel steering stabilizer with a 1/4" thick steel bracket and support brace to help reduce tire shimmy.

REAR LIFT BLOCKS

Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity.

REAR U-BOLTS

U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

PERFORMANCE SHOCKS

Extended length twin tube shocks provide a good highway ride with the ability to handle offroad use.
