FTSK3055M | Fabtech 6 Inch Basic System With Stealth Shocks (2013-2018 Ram 1500 Pickup 4WD)

2013-2018 Dodge Ram 1500 Pickup 4WD

K3055M
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,996.65
Qty:

Description

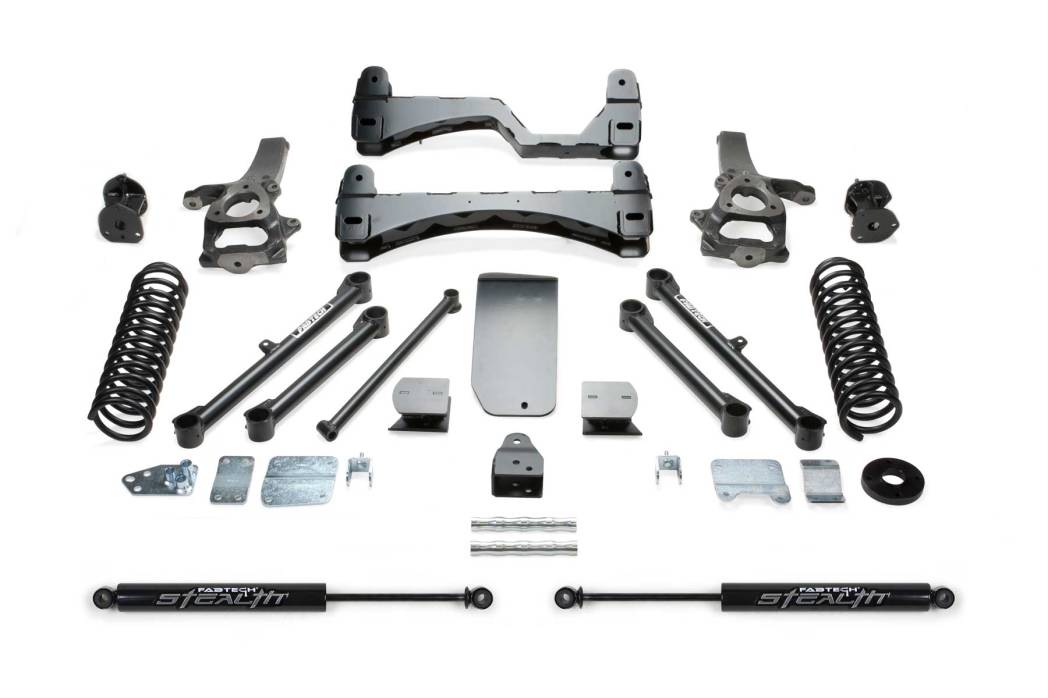

6″ BASIC SYSTEM W/ REAR STEALTH SHOCKS – K3055M

2013-18 RAM 1500 4WD

Our Ram 1500 6” system features Fabtech’s proven IFS technology with extended length steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4” thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain.

In the Basic system lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle.

Rear lift is accomplished with replacement performance coil springs along with new upper and lower link arms for the proper pinion angle.

FEATURES

  • 1/4" Thick High Arched Crossmembers
  • Extended Length Ductile Iron Spindles
  • 1/4" Thick Differential Skid Plate
  • Coilover Shock Spacers
  • Rear Coil Springs
  • Rear Upper & Lower Link Arms

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS23040 COMPONENT BOX 1
1 FTS23041 COMPONENT BOX 2
1 FTS23038 COMPONENT BOX 3
2 FTS6333 REAR STEALTH SHOCKS

FOOTNOTES

14. Cannot use OEM wheel and tire.
29. Rear springs may reduce load carrying capacity.
55. Must use 18" wheels or larger.
105. Will not fit 1500 MegaCab models.
130. Will not fit factory rear air suspension.
163. Vehicles equipped with 2 piece driveshaft require FTS419.

Application List

2013-2018 Dodge Ram 1500 Pickup 4WD

Tires & Wheels

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming
Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 306.8 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
