FTSK3168 | Fabtech 3 Inch BJ UCA System With Performance Shocks (2019-2023 Ram 1500 Pickup Rebel)

2019-2023 Dodge Ram 1500 Rebel 4WD

K3168
Pricing: $1,387.28
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3″ BALL JOINT UCA LIFT KIT W/ REAR PERFORMANCE SHOCKS – K3168

2019-23 RAM 1500 REBEL 4WD

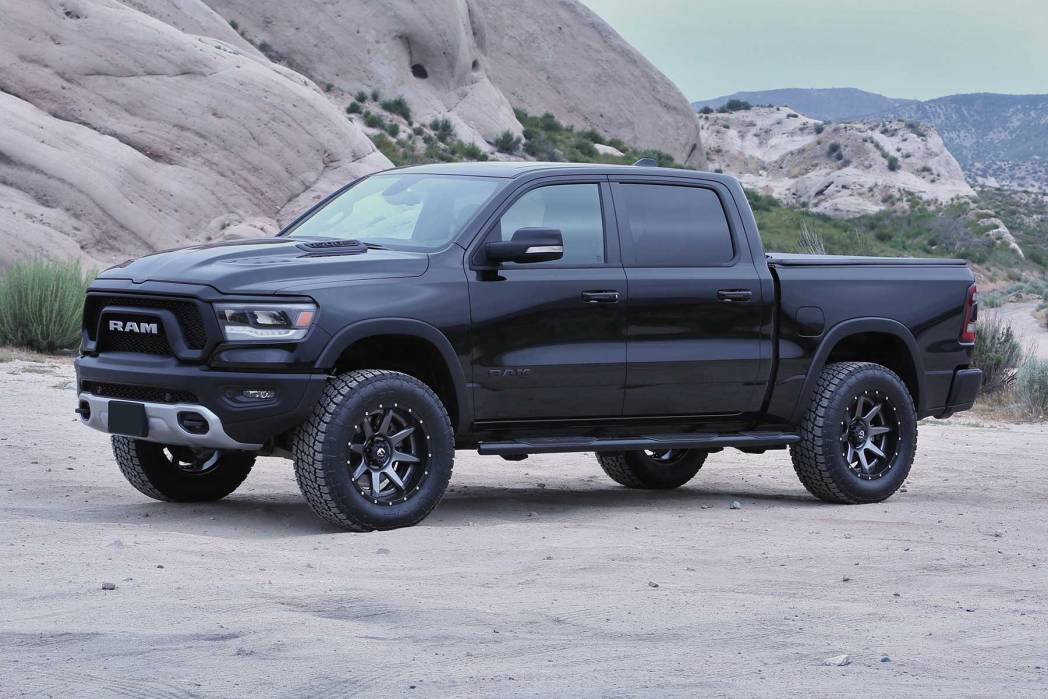

This 3" Ram lift kit has been designed to provide a superior ride quality with clearance to run 35" tires for both on and offroad use. The mild lift height is subtle yet gives the vehicle a commanding stance without over doing it.

Fabtech engineers took considerable time to cycle and test the 3" lift with their heavy duty ball joint upper control arms. There is no bind throughout the suspension travel and steering operation. The steering will go full lock to lock without any loss of the turning radius.

The factory Ram upper control arm is made of plastic with a light duty ball joint. Fabtech’s Upper Control Arms are constructed of tubular steel with large robust ball joints that provide strength to the suspension. These Fabtech upper control arms are a substantial upgrade for aggressive offroad use.

Front lift is accomplished with a steel spacer that bolts to the top of factory coilover shock and a small coil spring collar that is placed below the coil spring. The combination of these two spacers provide a full 3" of lift while providing proper suspension travel without bind.

The rear suspension receives a coil spring spacer to lift the vehicle. This helps keep the vehicle’s factory stance without effecting the ride quality.

This Ram lift kit includes Fabtech Performance shocks. They are a twin tube shock that will provide a good highway ride with the ability to handle offroad use.

This high quality 3" Ram lift kit is easy to install and will provide years of service while adding strength and reliability to the vehicle.

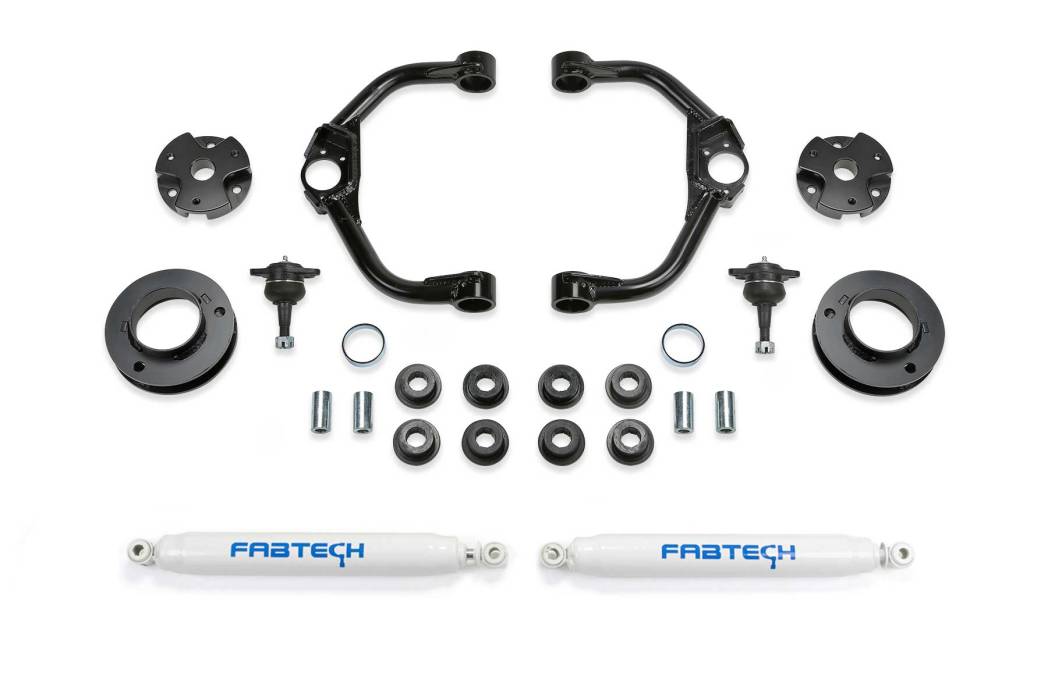

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS23202 BALL JOINT UCA COMPONENT BOX
1 FTS23205 SHOCK SPACERS
2 FTS7188 REAR PERFORMANCE SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
130. Will not fit factory air suspension.
203. Does not fit 2019 Ram 1500 classic models.

Application List

2019-2023 Dodge Ram 1500 Rebel 4WD

Tires & Wheels

Tire Size – 35/12.50R18 Wheel Size – 18×9 wheels w/ 5” BS w/ minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming
