FTSK7049DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS Resi (2016-2023 Tacoma 2WD/4WD 6 Lug)

2016-2023 Toyota Tacoma 2WD/4WD | 6 lug

K7049DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $7,174.97
Qty:

Description

6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC RESI SHOCKS – K7049DL

2016-23 TOYOTA TACOMA 2WD/4WD [6 LUG]

Our 6" Performance Systems features our Dirt Logic 2.5 resi coilover shocks providing superior offroad dampening capacity with a good highway ride. This system includes our proven IFS technology with extended length ductile iron steering knuckles and arched crossmembers for exceptional suspension ground clearance with a 1/4" thick differential skid plate, heavy duty tie rods, rear add-a-leafs and more.

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4" Thick Steel Skid Plate
  • Front Dirt Logic 2.5 Resi Coilovers
  • Rear Block & U-bolt Kit
  • Rear Add-a-leaf Kit

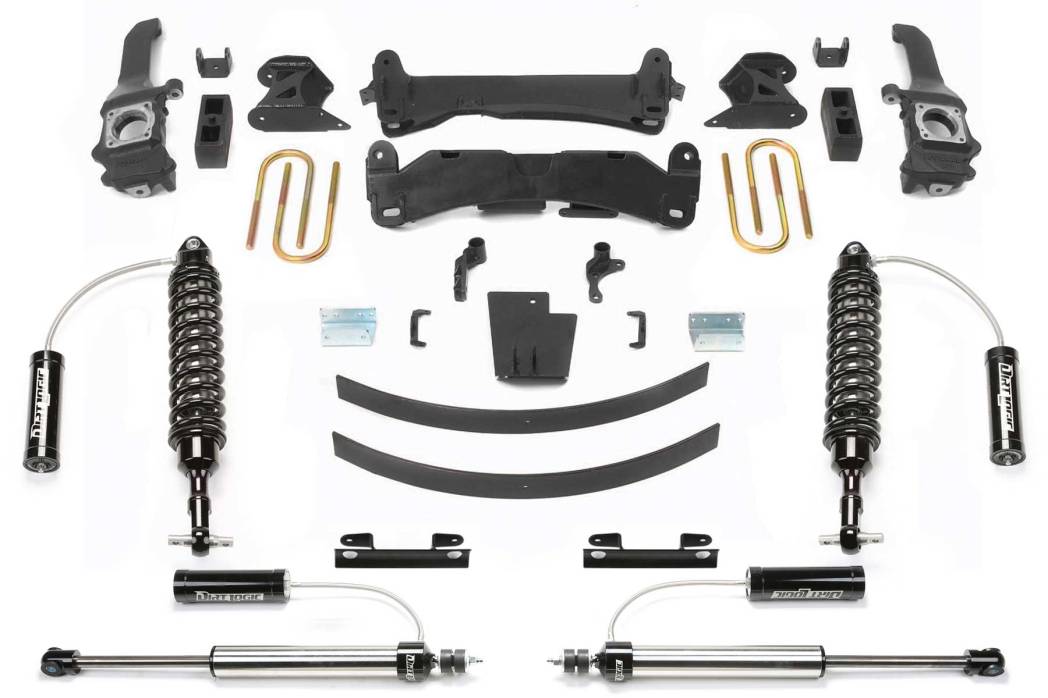

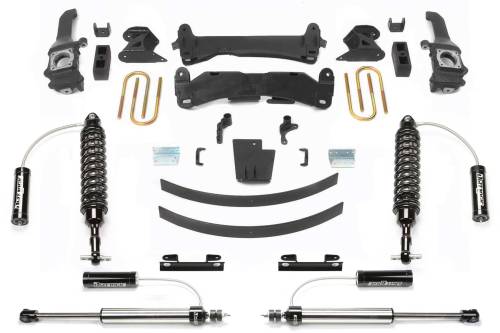

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS26065 COMPONENT BOX 1
1 FTS26066 COMPONENT BOX 2
1 FTS26079 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS801222 REAR DIRT LOGIC 2.25 RESI SHOCK

FOOTNOTES

65. Must use 17" or larger wheel.
116. Does not fit Baja Series models.

Application List

2016-2023 Toyota Tacoma 2WD/4WD 6 lug

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 322.4 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
