FTSK7054M | Fabtech 6 Inch Basic System With Coilover Spacers and Stealth Rear (2016-2021 Tundra 2WD/4WD)
2016-2021 Toyota Tundra 2WD/4WD
Description

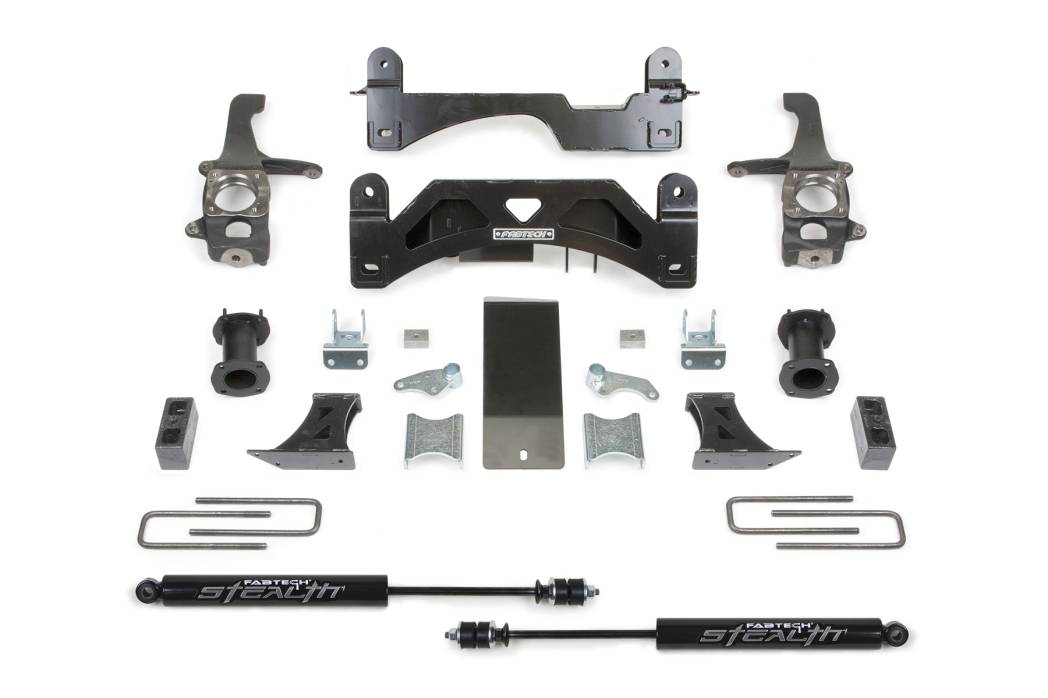

6″ BASIC SYSTEM W/ COILOVER SPACERS & REAR STEALTH SHOCKS – K7054M
2016-21 TOYOTA TUNDRA 2WD/4WD
Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4" thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Basic system features a heavy duty shock spacer system that retains the stock coilover shocks without disassembly for a factory like ride. This system utilizes a 3" block and u-bolt system for rear lift.
FEATURES
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Coilover Spacers
- Impact Struts
- Rear Block & U-bolt Kit
PART NUMBERS
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS26071 | COMPONENT BOX 1 |
| 1 | FTS26072 | COMPONENT BOX 2 |
| 1 | FTS26022BK | COILOVER SPACERS |
| 2 | FTS6189 | REAR STEALTH SHOCKS |
FOOTNOTES
14. Can not use OEM wheel and tire.
69. Double Cab & CrewMax 5.7L w/ Auto Trans only.
114. Will not allow use of 17" wheels.
168. Will not work with TRD PRO models.
Application List
Tires & Wheels
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5 1/2in BS w/minor trimming
Details
- K7054M
- K7054M
- 674866100633
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 285.6 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
